613.4545.20 TI25

Insert

Part number 613454520TI25

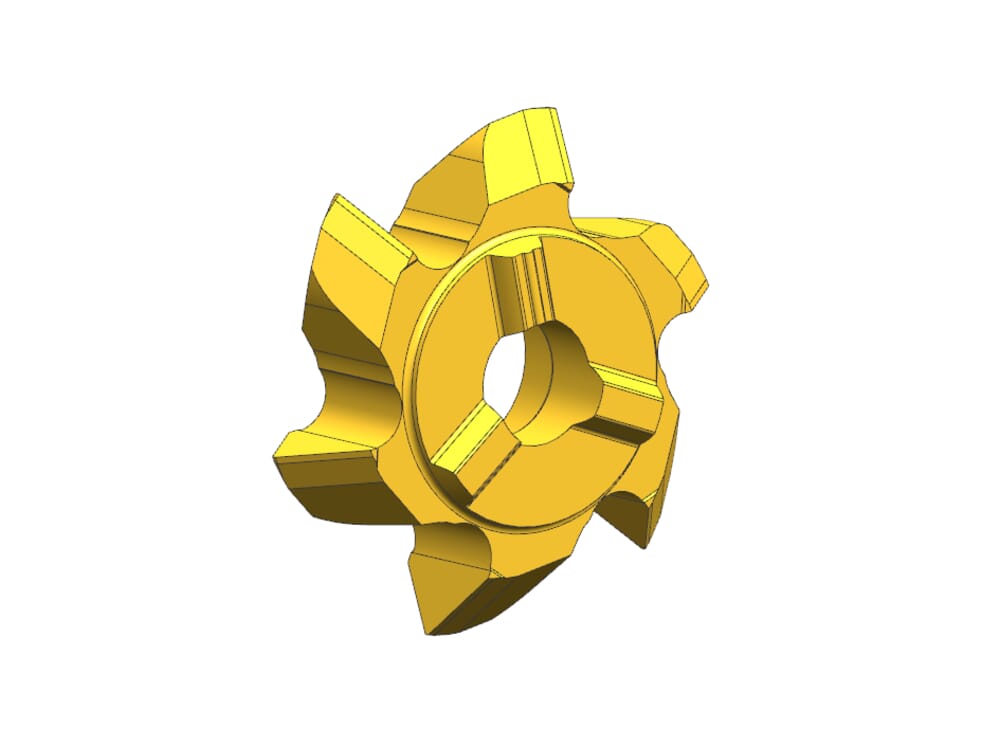

HORN Insert 613.4545.20 TI25 for Milling

Cutting diameter (Ds)

21.7 mm

Number of teeth (Z)

6 St.

ISO_SSC

HORN313113$84R$$$$$

Katalog_SSC

313113R

Width of groove (w)

0.2 mm

Cutting insert thickness, setting length complete (s)

6.3 mm

Setting length (E)

3.3 mm

Chamfer size (tmax)

2.5 mm

Angle of chamfer (α)

45 °

Chamfer with maximum (b)

2.5 mm
