613.5511.02 TA45
Insert
Part number 613551102TA45

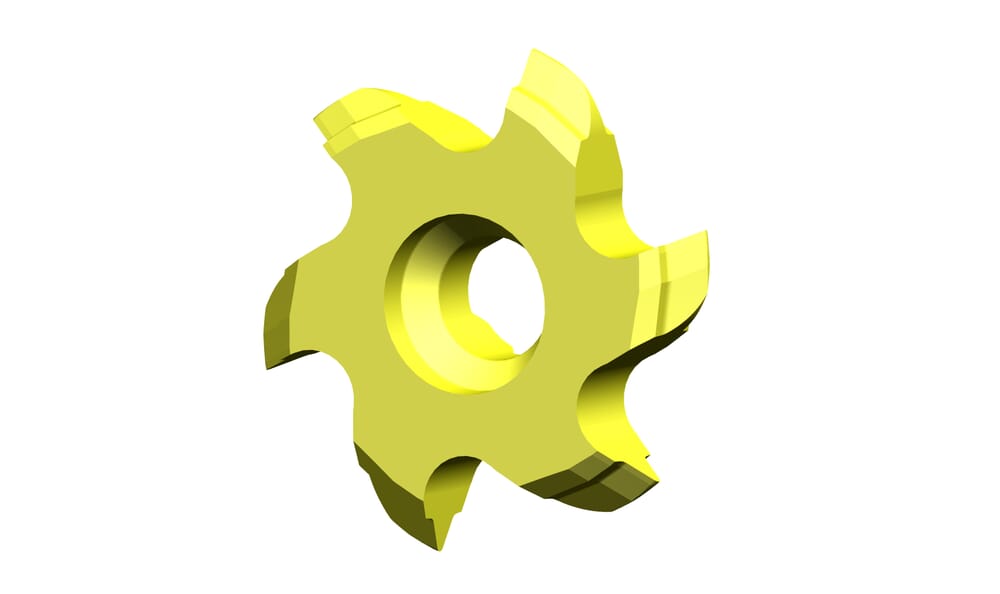

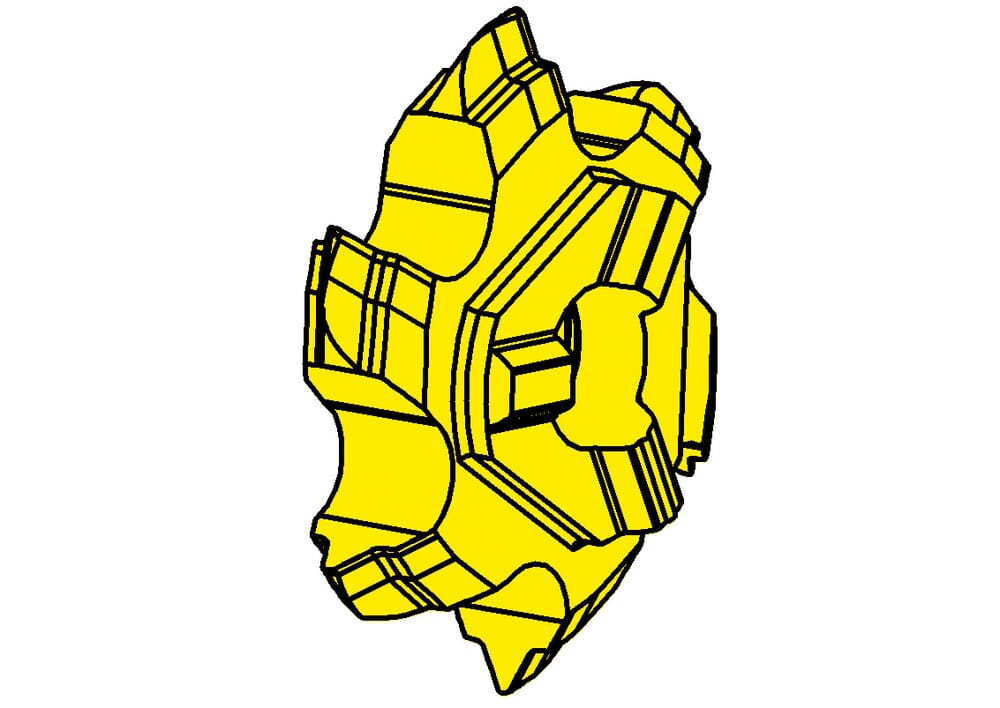

HORN Insert 613.5511.02 TA45 for Gewinden
Please note:Technical instructions
Cutting diameter (Ds)
21.7
mm
Number of teeth (Z)
6
St.
Threads per inch (TPI)
11
eclass-shortcut
21-18-20-11
ISO_SSC
HORN313113$84R$$$$$
Katalog_SSC
313113R
Setting length (E)
3.4
mm
Cutting insert height, Cutting insert thickness (s)
5.4
mm
| Downloads | |
|---|---|
| 613_5511_02_TA45-ISO.XML | Download |
| 613_5511_02_TA45-DXF.DXF | Download |
| 613_5511_02_TA45-STP.STP | Download |
| 613_5511_02_TA45-DIN.XML | Download |
| Download all files | |
