613.6060.05 AS45
Insert
Part number 613606005AS45

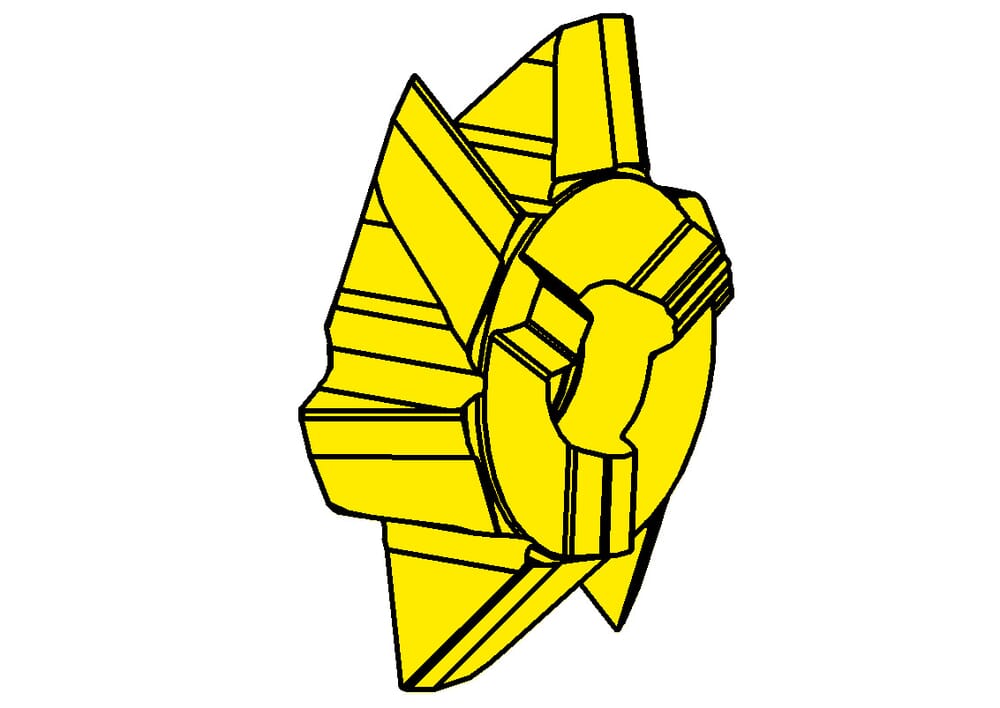

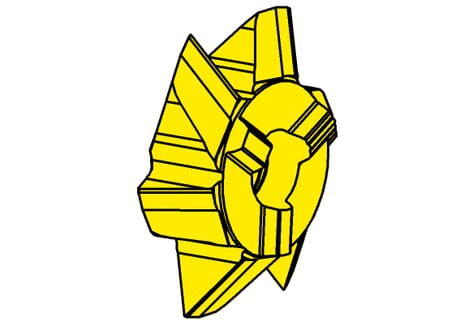

HORN Insert 613.6060.05 AS45 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
21.7
mm
Number of teeth (Z)
6
St.
Top radius (r)
0.05
mm
ISO_SSC
HORN313113$84R$$$$$
Katalog_SSC
313113R
Cutting insert thickness, setting length complete (s)
6.3
mm
Setting length (E)
3.2
mm
Chamfer size (tmax)
4
mm
| Downloads | |
|---|---|
| 613_6060_05_AS45-DXF.DXF | Download |
| 613_6060_05_AS45-ISO.XML | Download |
| 613_6060_05_AS45-STP.STP | Download |
| 613_6060_05_AS45-DIN.XML | Download |
| Download all files | |
