613.PL61.62 TF45
Insert
Part number 613PL6162TF45

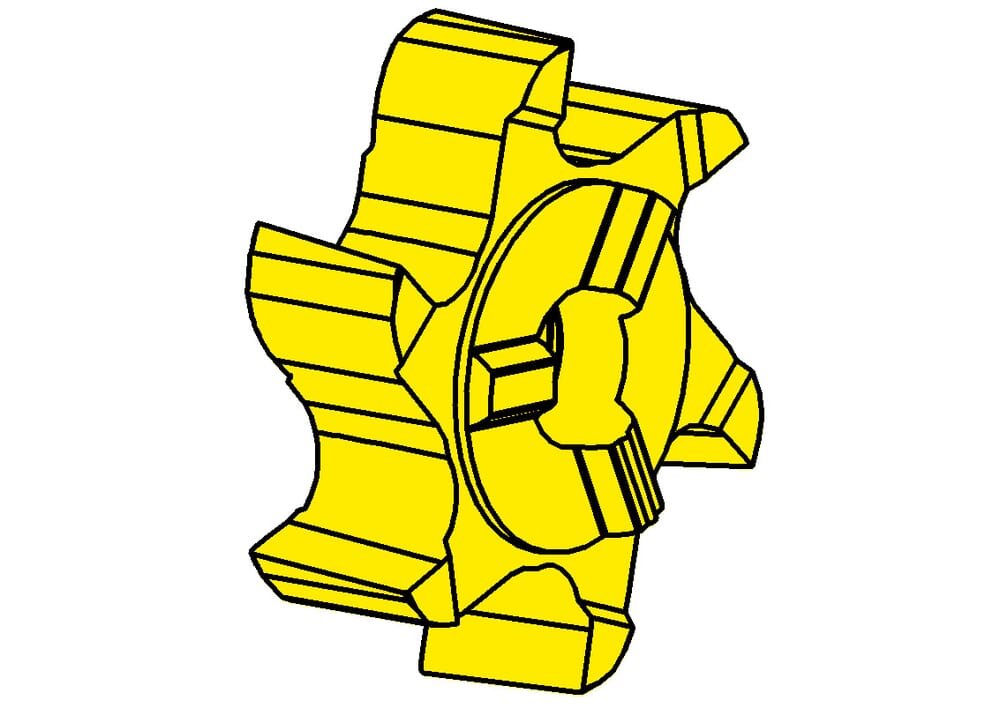

HORN Insert 613.PL61.62 TF45 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
21.7
mm
Number of teeth (Z)
6
St.
ISO_SSC
HORN313113$84R$$$$$
DIN_SSC
HORN31311384R
Katalog_SSC
313113R
Cutting depth (tmax)
5.7
mm
Cutting insert thickness, setting length complete (s)
6.1
mm
Corner radius (r)
0.2
mm
eclass-shortcut
21-18-20-11
| Downloads | |
|---|---|
| 613PL6162_20210627_115305158.DXF | Download |
| 613PL6162_20230112_152040788.STP | Download |
| Download all files | |
