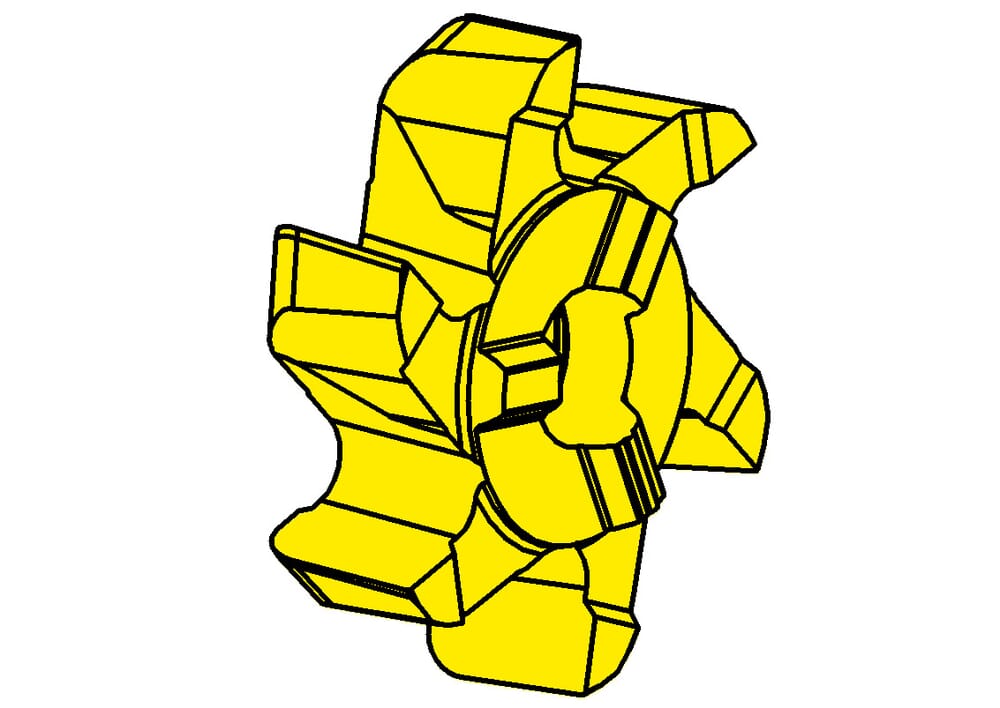

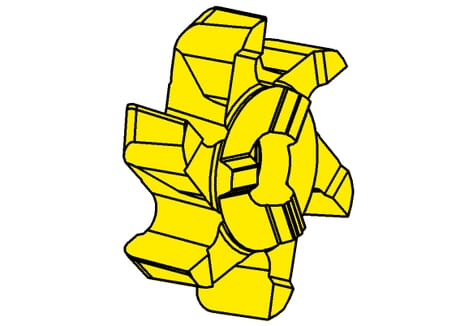

613.PLT6.15 AS45

Insert

Part number 613PLT615AS45

HORN Insert 613.PLT6.15 AS45 for Milling

Cutting diameter (Ds)

21.7 mm

Number of teeth (Z)

6 St.

ISO_SSC

HORN313113$84R$$$$$

Katalog_SSC

313113R

Cutting depth (tmax)

5.7 mm

Cutting insert thickness, setting length complete (s)

6.1 mm

Corner radius (r)

1.5 mm
