620.HV08.04 AS45
Insert
Part number 620HV0804AS45
HORN Insert 620.HV08.04 AS45 for Milling
Please note:Technical instructions
DIN_SSC
HORN62015684R
eclass-shortcut
21-18-20-11

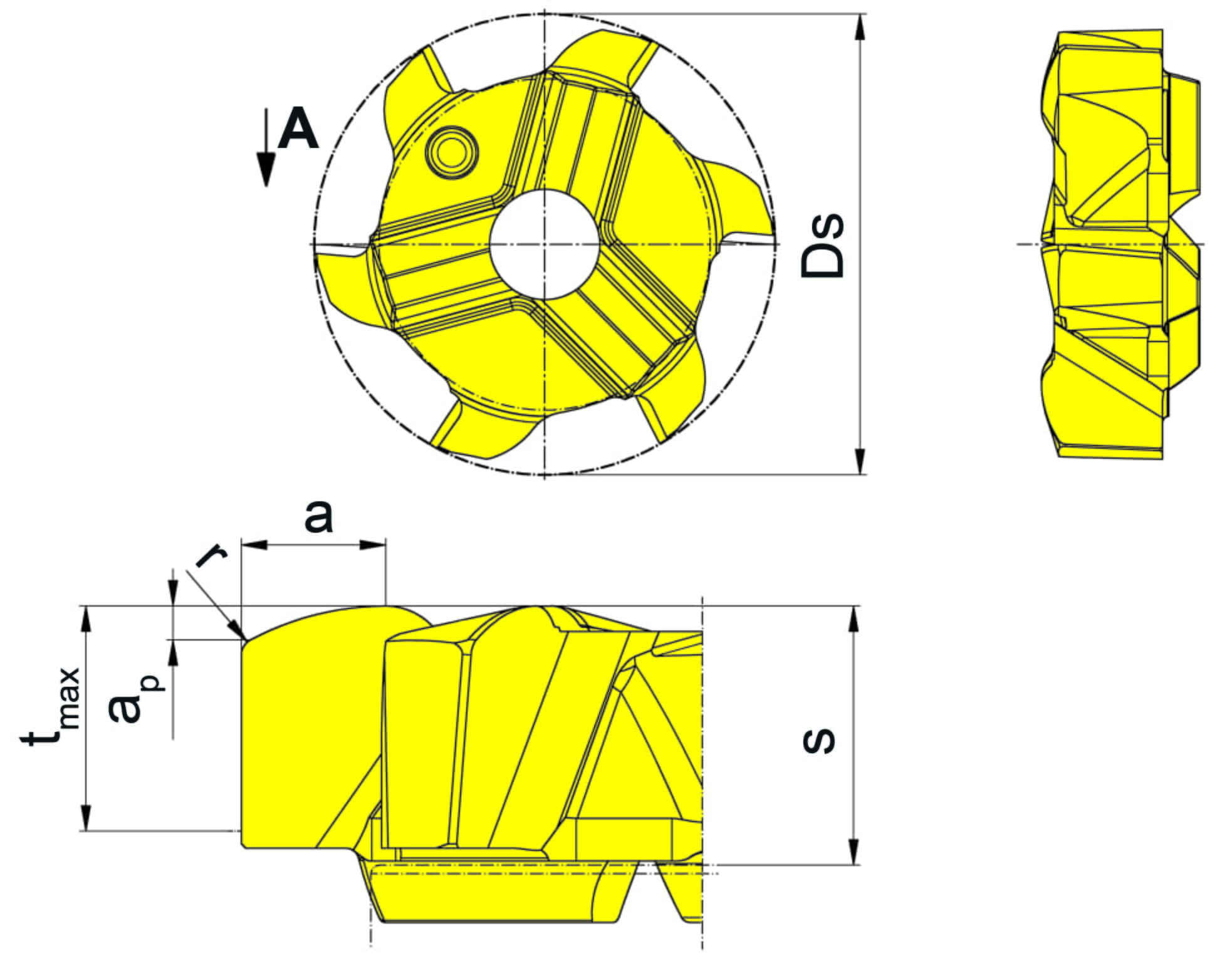

Maximum stepover (ap) (ap)
0.8
Corner radius (r)
0.4
mm
Cutting insert thickness, setting length complete (s)
6.1
mm
Width of groove (a)
4.4
mm
Cutting depth (tmax)
5.3
mm
Katalog_SSC
620156R
ISO_SSC
HORN620156$84R$$$$$
Number of teeth (Z)
6
St.
Cutting diameter (Ds)
21.7
mm
| Downloads | |
|---|---|
| 620HV0804.STP | Download |
| Download all files | |
