628.0080.00 RC25
Insert
Part number 628008000RC25

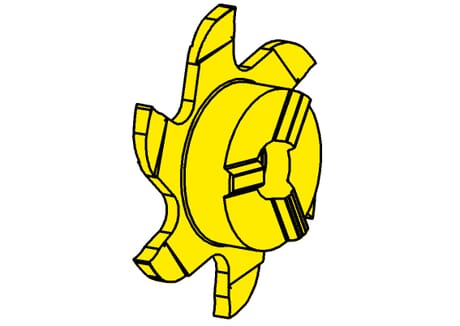

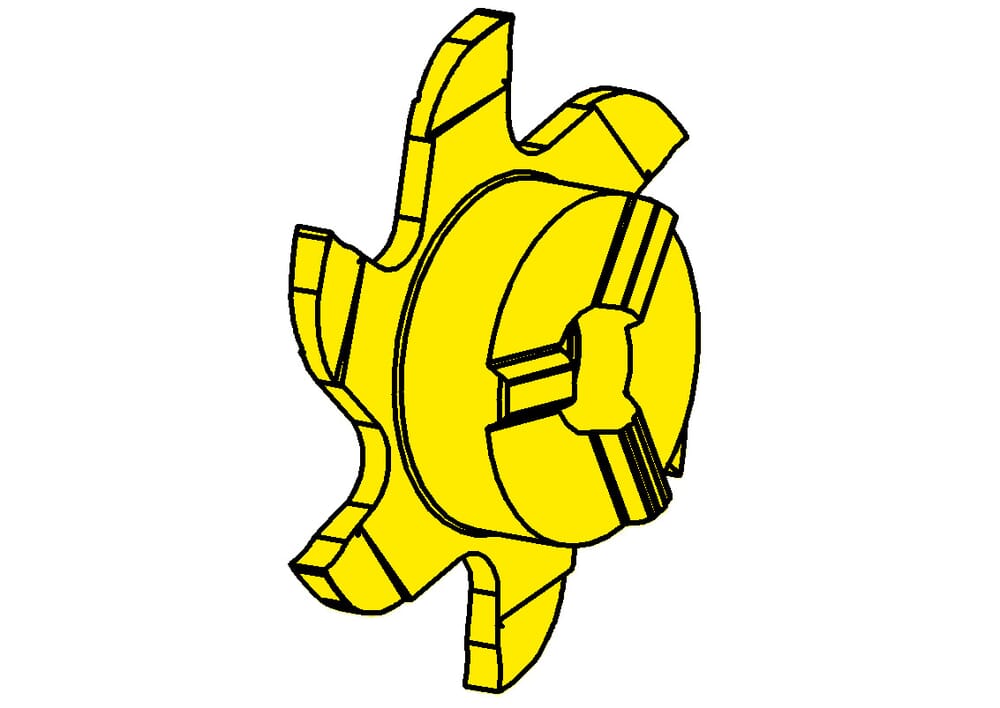

HORN Insert 628.0080.00 RC25 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
27.7
mm
Number of teeth (Z)
6
St.
ISO_SSC
HORN328143$84R$$$$$
DIN_SSC
HORN32814384R
Katalog_SSC
328143R
Width of groove (w)
0.8
mm
Maximum milling depth/ depth of groove (tmax)
6.5
mm
Nominal range (Nw)
0.8
mm
Cutting insert thickness, setting length complete (s)
6.1
mm
| Downloads | |
|---|---|
| 628008000.DXF | Download |
| 628008000_20230112_144108865.STP | Download |
| Download all files | |
