628.2020.20 AS45
Insert
Part number 628202020AS45

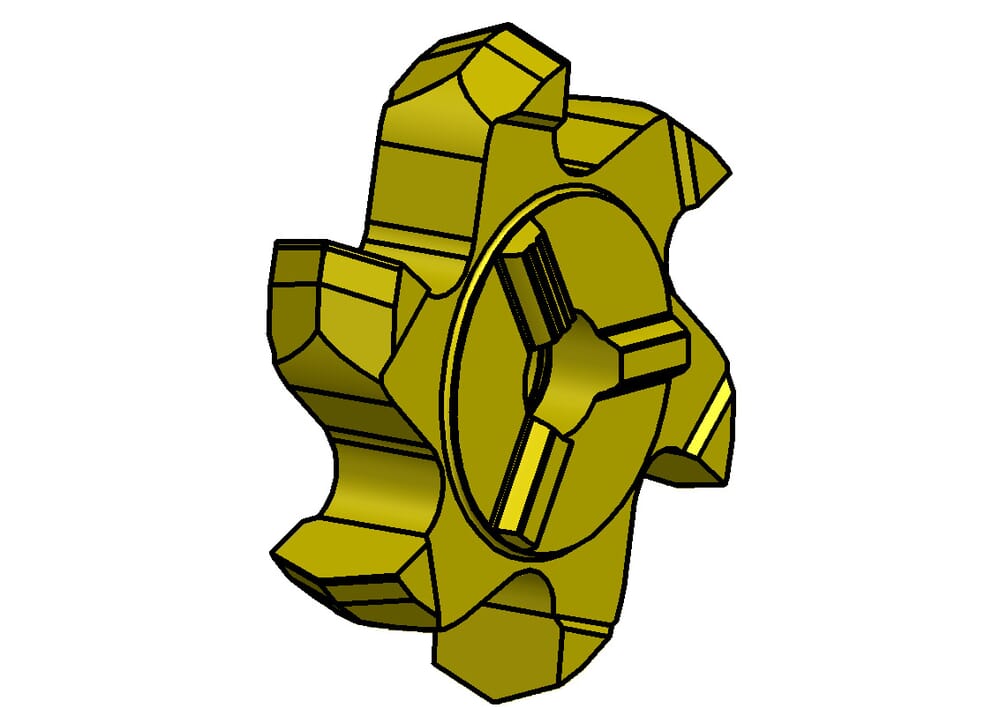

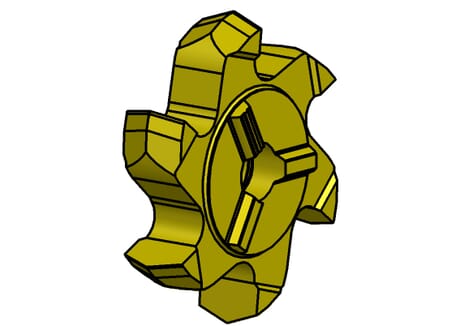

HORN Insert 628.2020.20 AS45 for Milling
Please note:Technical instructions
Katalog_SSC
328143R
eclass-shortcut
21-18-20-11
Chamfer with maximum (b)
2.8
mm
Angle of chamfer (α)
20
°
Chamfer size (tmax)
1
mm
Setting length (E)
3.2
mm
Cutting insert thickness, setting length complete (s)
6.3
mm
Width of groove (w)
0.2
mm
DIN_SSC
HORN32814384R
ISO_SSC
HORN328143$84R$$$$$
Number of teeth (Z)
6
St.
Cutting diameter (Ds)
27.7
mm
| Downloads | |
|---|---|
| 628202020.DXF | Download |
| 628202020_20230112_152311000.STP | Download |
| Download all files | |
