628.3972.175.4 AS45

Insert

Part number 62839721754AS45

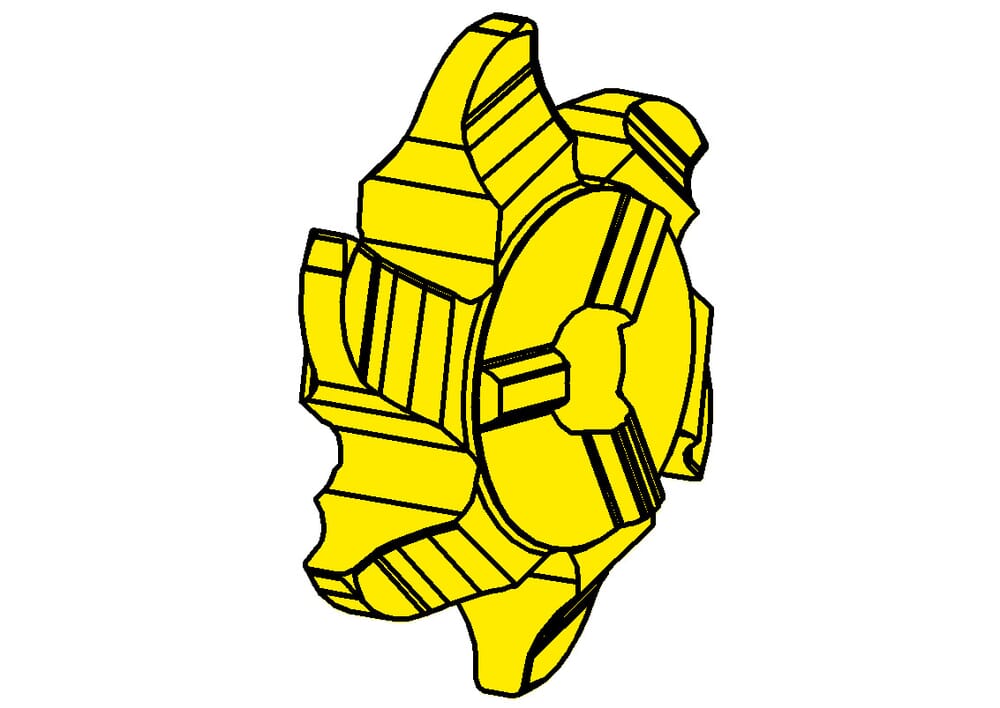

HORN Insert 628.3972.175.4 AS45 for Milling

Cutting diameter (Ds)

27.7 mm

number-of-teeth

6 St.

Module (Modul)

1.75 mm

Number of teeth gear wheel minimum (zmin)

21 St.

Number of teeth gear wheel maximum (zmax)

25 St.

ISO_SSC

HORN328143$84R$$$$$

Katalog_SSC

328143R

Maximum milling depth (tmax)

3.9 mm

Setting length (E1)

3.4 mm

Cutting insert height, Cutting insert thickness (s)

7.45 mm
