628.3972.200.2 AS45

Insert

Part number 62839722002AS45

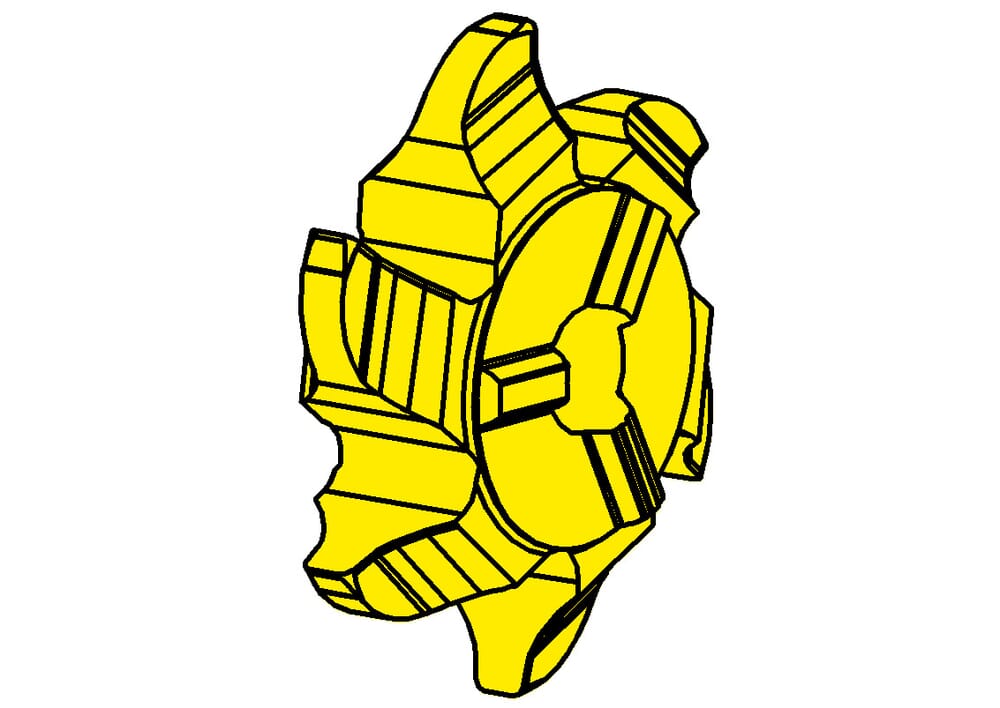

HORN Insert 628.3972.200.2 AS45 for Milling

eclass-shortcut

21-18-20-11

Cutting insert height, Cutting insert thickness (s)

7.45 mm

Setting length (E1)

3.4 mm

Maximum milling depth (tmax)

4.2 mm

Katalog_SSC

328143R

DIN_SSC

HORN32814384R

ISO_SSC

HORN328143$84R$$$$$

Number of teeth gear wheel maximum (zmax)

16 St.

Number of teeth gear wheel minimum (zmin)

14 St.

Module (Modul)

2 mm

number-of-teeth

6 St.

Cutting diameter (Ds)

27.7 mm
