628.3972.200.3 AS45

Insert

Part number 62839722003AS45

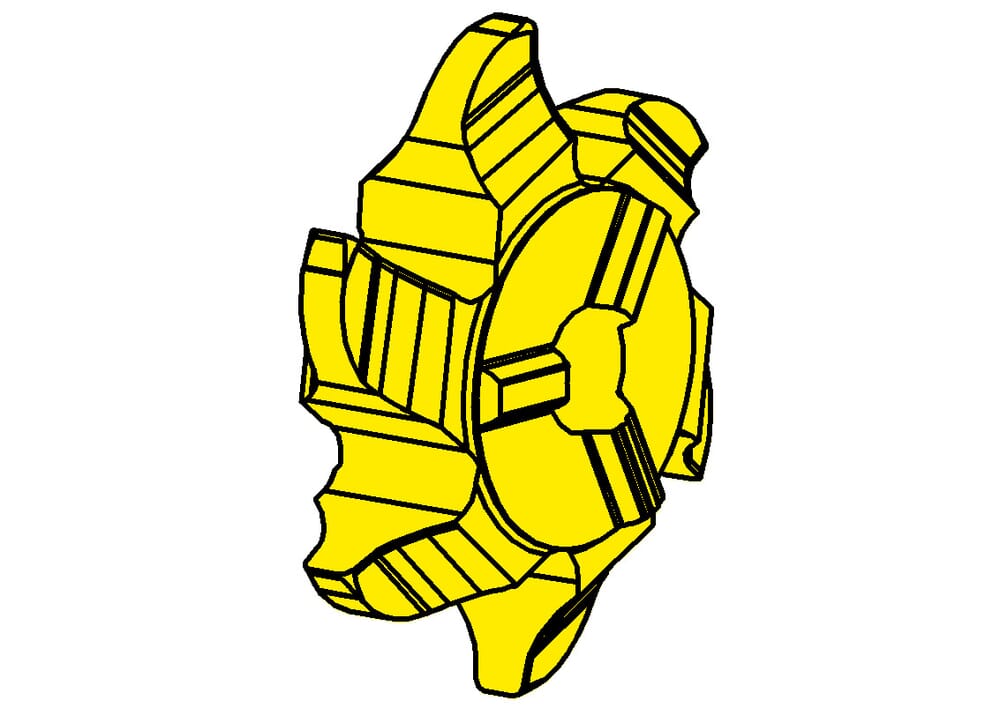

HORN Insert 628.3972.200.3 AS45 for Milling

Cutting diameter (Ds)

27.7 mm

number-of-teeth

6 St.

Module (Modul)

2 mm

Number of teeth gear wheel minimum (zmin)

17 St.

Number of teeth gear wheel maximum (zmax)

20 St.

ISO_SSC

HORN328143$84R$$$$$

Katalog_SSC

328143R

Maximum milling depth (tmax)

4.2 mm

Setting length (E1)

3.4 mm

Cutting insert height, Cutting insert thickness (s)

7.45 mm
