628.4545.20 AS45

Insert

Part number 628454520AS45

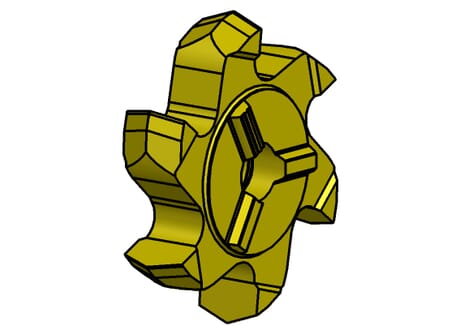

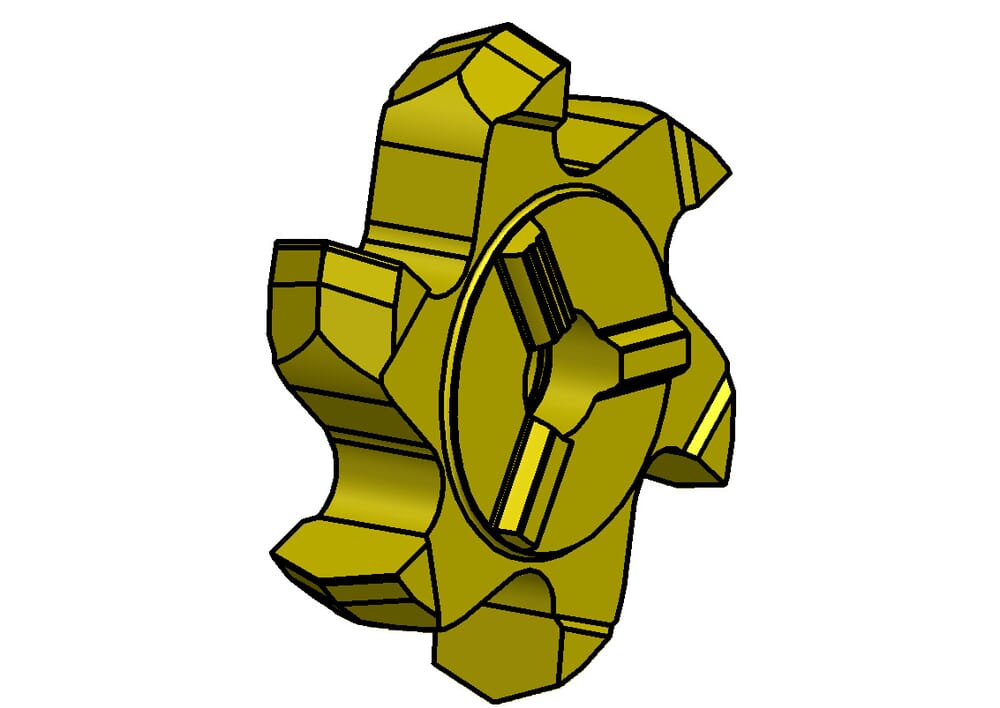

HORN Insert 628.4545.20 AS45 for Milling

Cutting diameter (Ds)

27.7 mm

Number of teeth (Z)

6 St.

ISO_SSC

HORN328143$84R$$$$$

Katalog_SSC

328143R

Width of groove (w)

0.2 mm

Cutting insert thickness, setting length complete (s)

6.3 mm

Setting length (E)

3.2 mm

Chamfer size (tmax)

2.8 mm

Angle of chamfer (α)

45 °

Chamfer with maximum (b)

2.8 mm

"Solid Carbide Drill w/Internal Coolant

DDM030110600HEBM35

screw

0303563T10P

Insert

628454520TA45

"Solid Carbide Drill w/Internal Coolant

DDM030113000HEBM35
