628.4545.20 TA45

Insert

Part number 628454520TA45

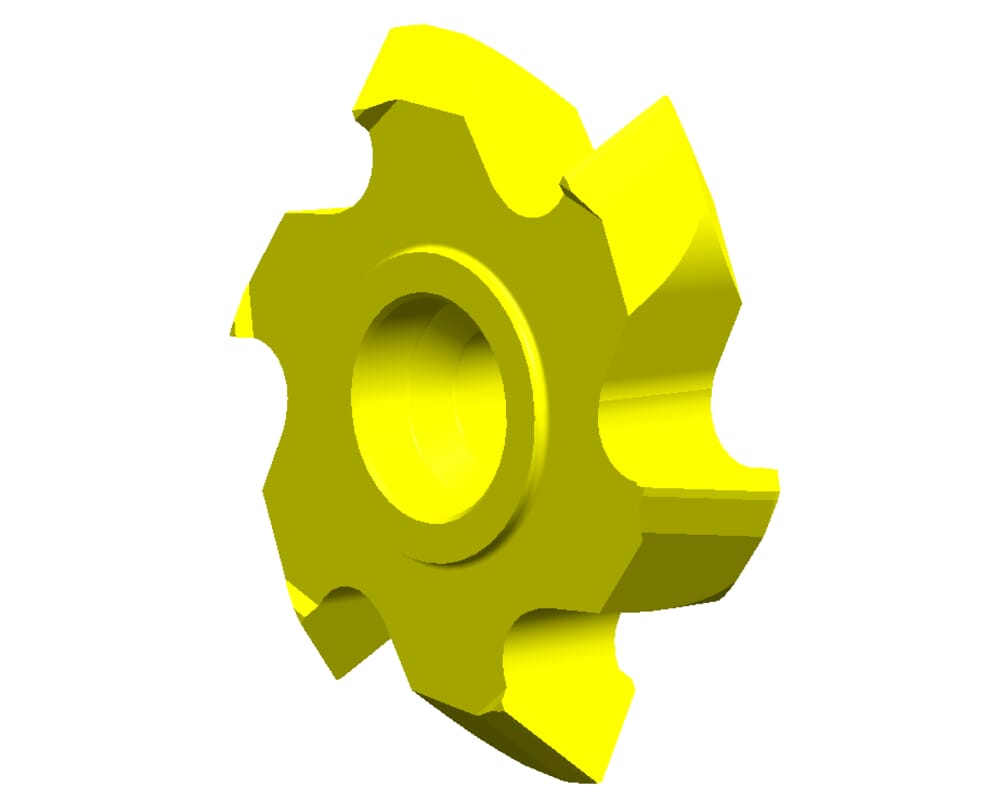

HORN Insert 628.4545.20 TA45 for Milling

Cutting diameter (Ds)

27.7 mm

Number of teeth (Z)

6 St.

ISO_SSC

HORN328143$84R$$$$$

Katalog_SSC

328143R

Width of groove (w)

0.2 mm

Cutting insert thickness, setting length complete (s)

6.3 mm

Setting length (E)

3.2 mm

Chamfer size (tmax)

2.8 mm

Angle of chamfer (α)

45 °

Chamfer with maximum (b)

2.8 mm
