628.5511.02 AS45
Insert
Part number 628551102AS45
HORN Insert 628.5511.02 AS45 for Gewinden
Please note:Technical instructions

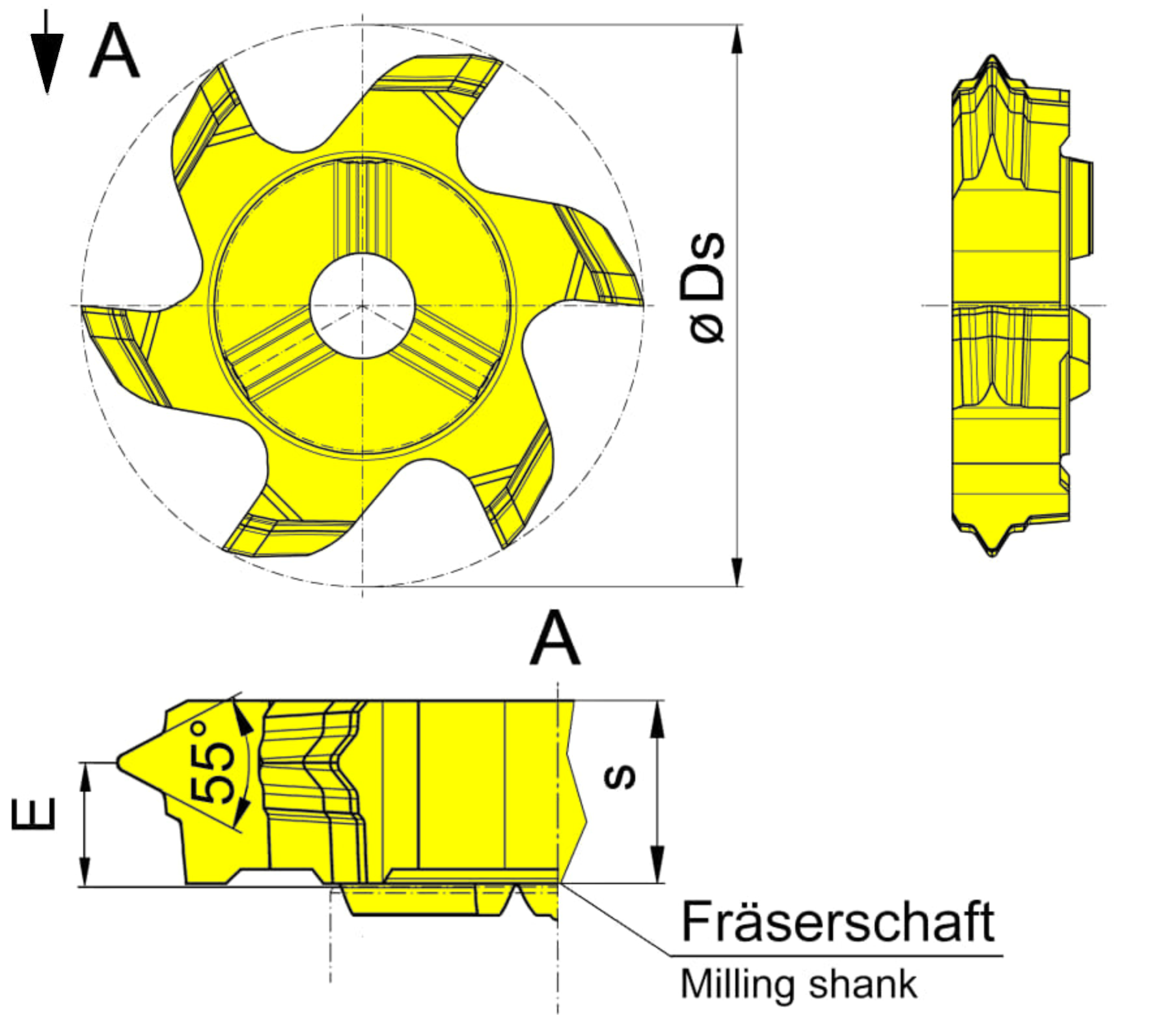

Cutting diameter (Ds)
27.7
mm
Number of teeth (Z)
6
St.
Threads per inch (TPI)
11
eclass-shortcut
21-18-20-11
ISO_SSC
HORN328143$84R$$$$$
DIN_SSC
HORN32814384R
Katalog_SSC
328143R
Setting length (E)
3.9
mm
Cutting insert height, Cutting insert thickness (s)
5.85
mm
| Downloads | |
|---|---|
| 628551102.DXF | Download |
| 628551102_20230112_151449629.STP | Download |
| Download all files | |
