628.PL61.62 TI25
Insert
Part number 628PL6162TI25

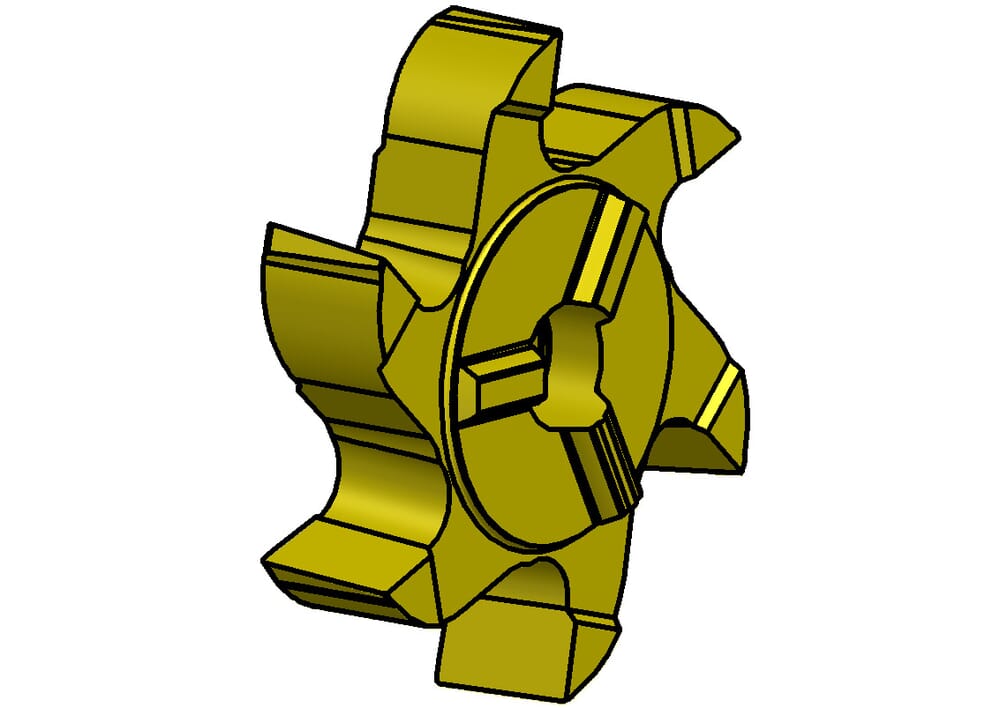

HORN Insert 628.PL61.62 TI25 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
27.7
mm
Number of teeth (Z)
6
St.
ISO_SSC
HORN328143$84R$$$$$
DIN_SSC
HORN32814384R
Katalog_SSC
328143R
Cutting depth (tmax)
5.7
mm
Cutting insert thickness, setting length complete (s)
6.1
mm
Corner radius (r)
0.2
mm
eclass-shortcut
21-18-20-11
| Downloads | |
|---|---|
| 628PL6162_20210628_233402478.DXF | Download |
| 628_PL61_62_20171121_195911423.STP | Download |
| Download all files | |
