632.0100.2.00 AS45

Insert

Part number 6320100200AS45

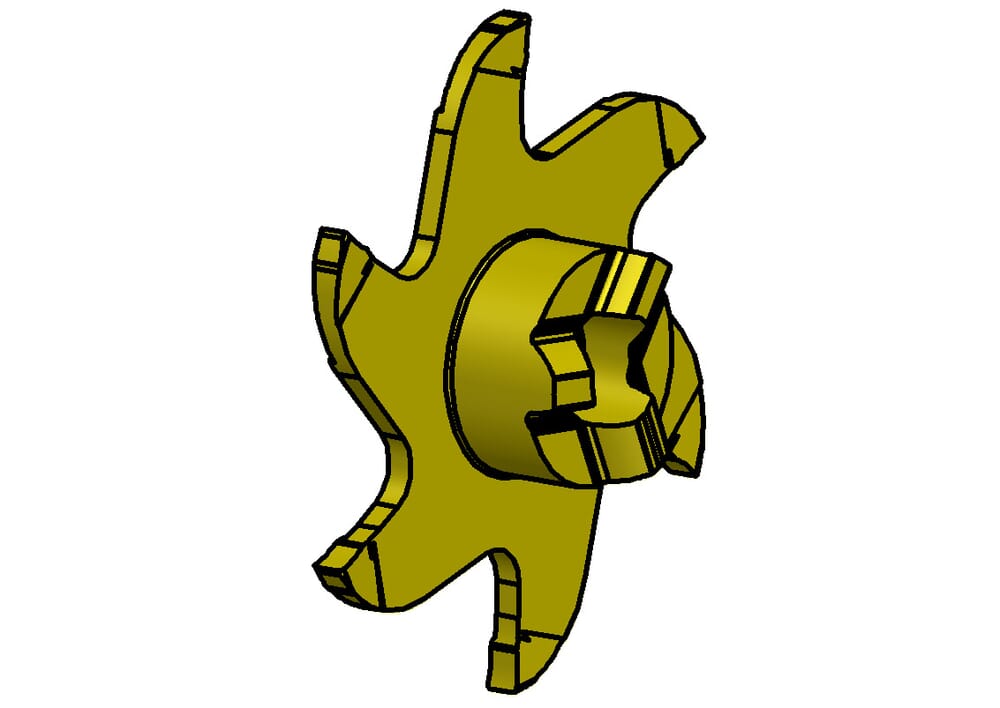

HORN Insert 632.0100.2.00 AS45 for Milling

Cutting diameter (Ds)

31.7 mm

Number of teeth (Z)

6 St.

ISO_SSC

HORN332110$84R$$$$$

DIN_SSC

HORN33211084R

Katalog_SSC

332110R

plating-seat-size

Width of groove (w)

1 mm

Maximum milling depth/ depth of groove (tmax)

10 mm

Cutting insert thickness, setting length complete (s)

6.1 mm

eclass-shortcut

21-18-20-11
