632.3972.225.4 AS45

Insert

Part number 63239722254AS45

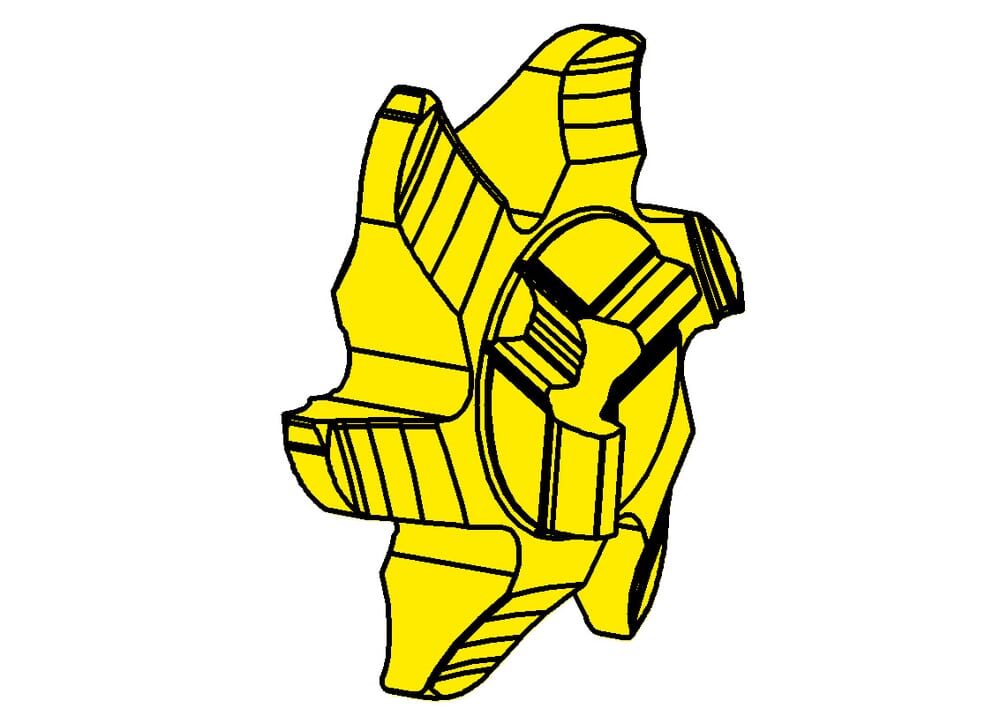

HORN Insert 632.3972.225.4 AS45 for Milling

Cutting diameter (Ds)

31.7 mm

number-of-teeth

6 St.

Module (Modul)

2.25 mm

Number of teeth gear wheel minimum (zmin)

21 St.

Number of teeth gear wheel maximum (zmax)

25 St.

ISO_SSC

HORN332143$84R$$$$$

Katalog_SSC

332143R

Maximum milling depth (tmax)

4.9 mm

Setting length (E1)

3.45 mm

Cutting insert height, Cutting insert thickness (s)

7.5 mm
