632.3972.225.5 AS45
Insert
Part number 63239722255AS45

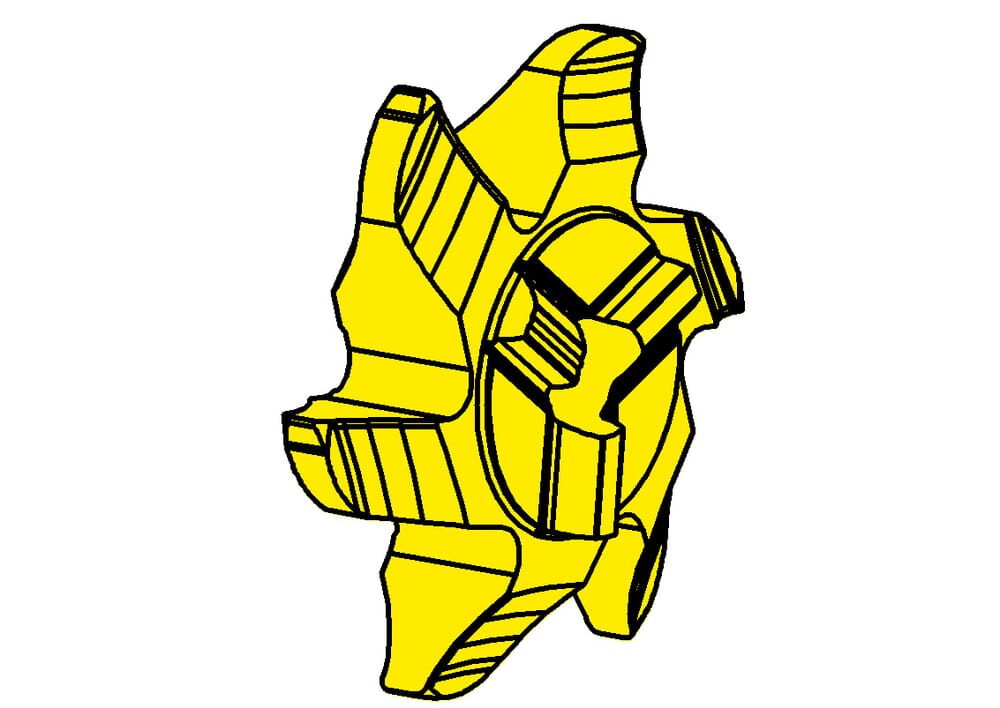

HORN Insert 632.3972.225.5 AS45 for Milling
Please note:Technical instructions
eclass-shortcut
21-18-20-11
Cutting insert height, Cutting insert thickness (s)
7.5
mm
Setting length (E1)
3.45
mm
Maximum milling depth (tmax)
4.9
mm
Katalog_SSC
332143R
DIN_SSC
HORN-33214384R
ISO_SSC
HORN332143$84R$$$$$
Number of teeth gear wheel maximum (zmax)
34
St.
Number of teeth gear wheel minimum (zmin)
26
St.
Module (Modul)
2.25
mm
number-of-teeth
6
St.
Cutting diameter (Ds)
31.7
mm
| Downloads | |
|---|---|
| 63239722255.DXF | Download |
| Download all files | |
