632.3972.225.6 AS45

Insert

Part number 63239722256AS45

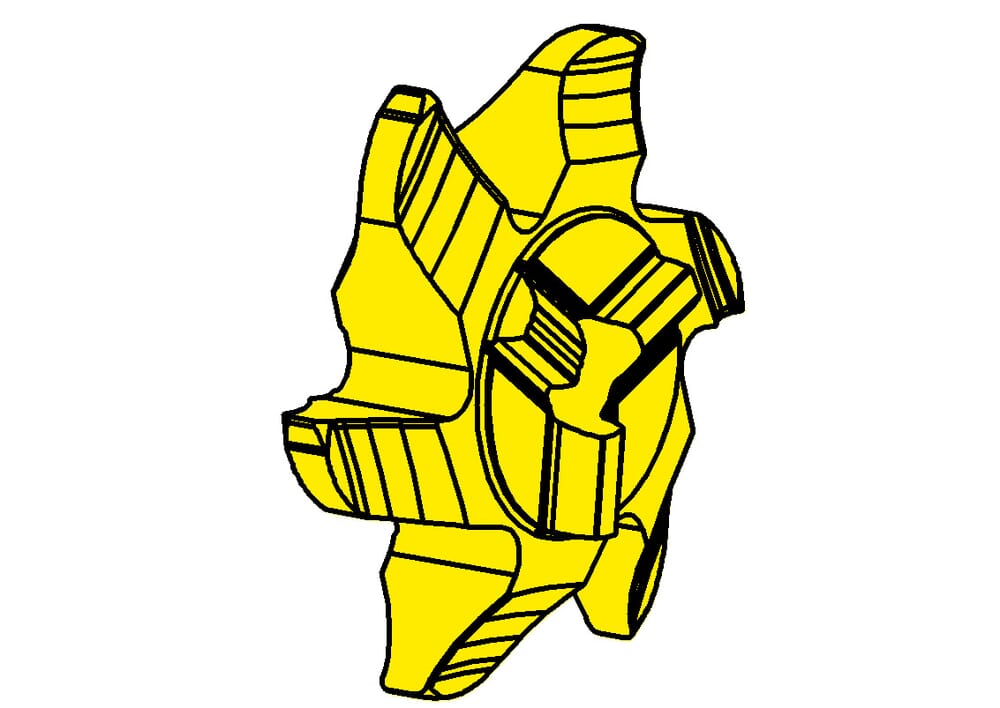

HORN Insert 632.3972.225.6 AS45 for Milling

eclass-shortcut

21-18-20-11

Cutting insert height, Cutting insert thickness (s)

7.5 mm

Setting length (E1)

3.45 mm

Maximum milling depth (tmax)

5 mm

Katalog_SSC

332143R

DIN_SSC

HORN-33214384R

ISO_SSC

HORN332143$84R$$$$$

Number of teeth gear wheel maximum (zmax)

54 St.

Number of teeth gear wheel minimum (zmin)

35 St.

Module (Modul)

2.25 mm

number-of-teeth

6 St.

Cutting diameter (Ds)

31.7 mm
