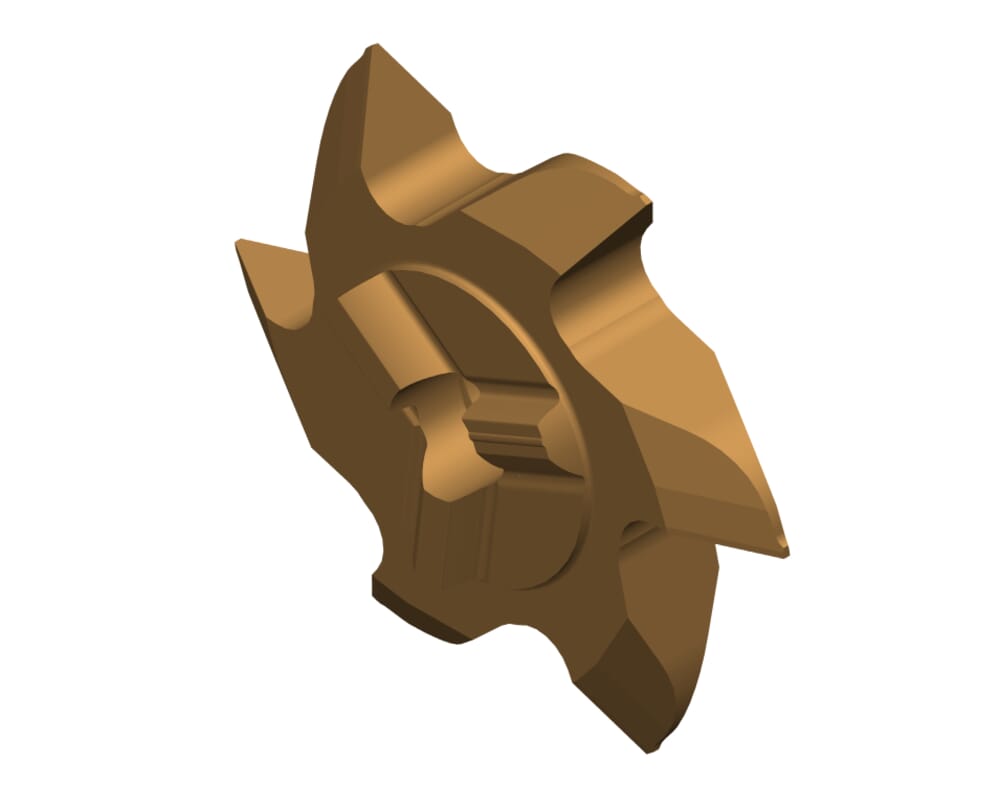

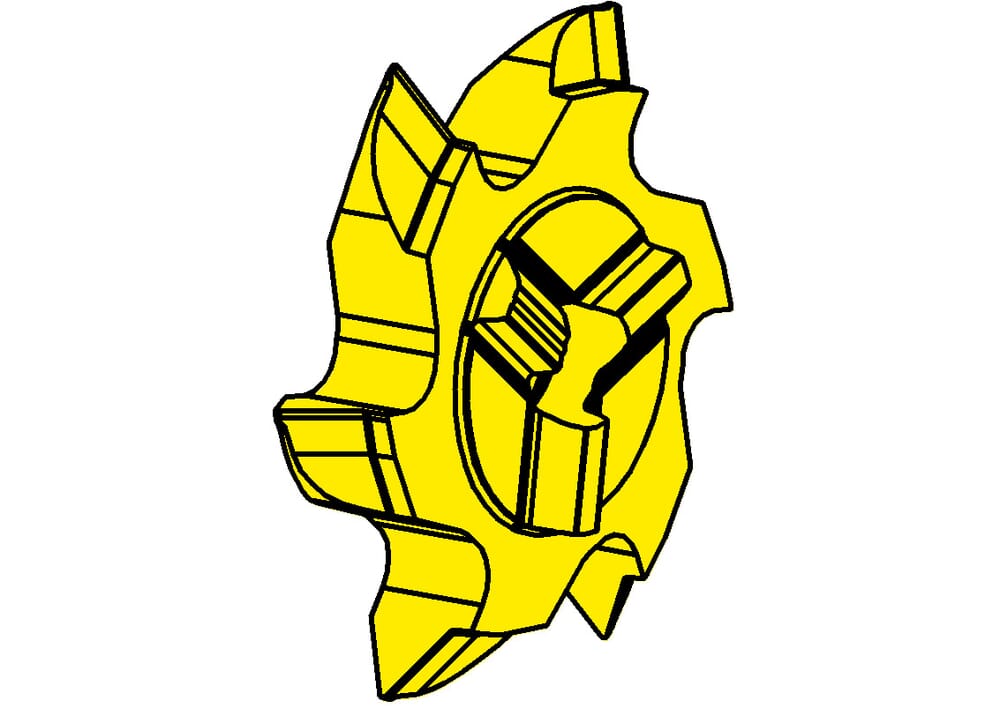

632.4060.01 TI25
Insert
Part number 632406001TI25
HORN Insert 632.4060.01 TI25 for Gewinden
Please note:Technical instructions

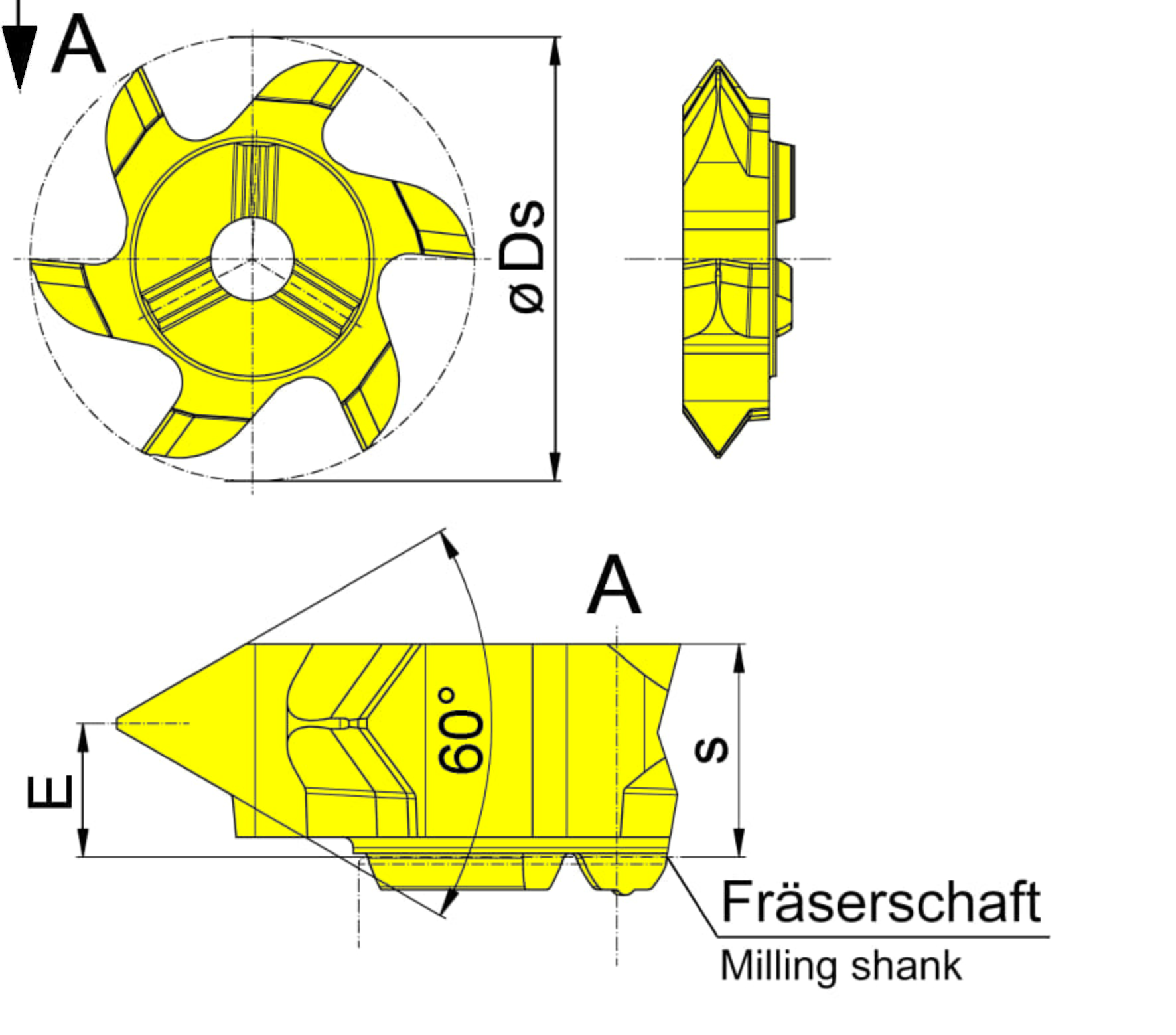

Cutting diameter (Ds)
31.7
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN332143$84R$$$$$
Katalog_SSC
332143R
Setting length (E)
3.2
mm
Cutting insert height, Cutting insert thickness (s)
5.8
mm
Pitch (P)
4
mm
Maximum pitch (Pmax)
6
mm
| Downloads | |
|---|---|
| 632_4060_01_TI25-DXF.DXF | Download |
| 632_4060_01_TI25-ISO.XML | Download |
| 632_4060_01_TI25-STP.STP | Download |
| 632_4060_01_TI25-DIN.XML | Download |
| Download all files | |
