635.3972.225.1 AS45

Insert

Part number 63539722251AS45

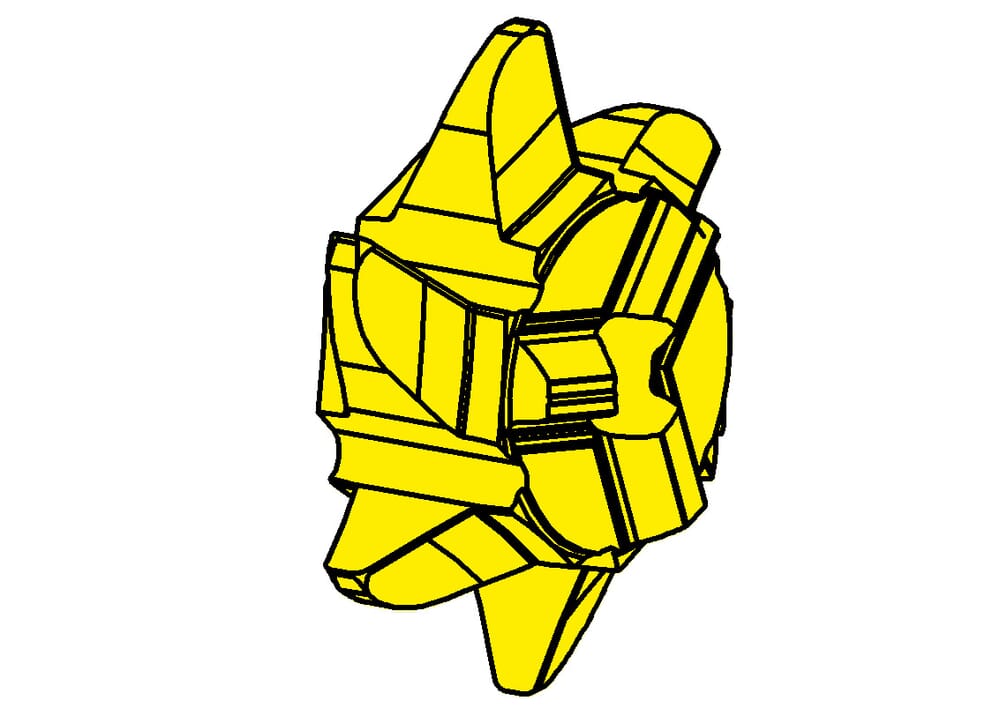

HORN Insert 635.3972.225.1 AS45 for Milling

Cutting diameter (Ds)

34.7 mm

number-of-teeth

6 St.

Module (Modul)

2.25

Number of teeth gear wheel minimum (zmin)

12 St.

Number of teeth gear wheel maximum (zmax)

13 St.

ISO_SSC

HORN635715$84R$$$$$

Katalog_SSC

335175R

Maximum milling depth (tmax)

4.7 mm

Setting length (E1)

5.5 mm

Cutting insert height, Cutting insert thickness (s)

11.9 mm
