713.0100.00 TI25
Insert
Part number 713010000TI25

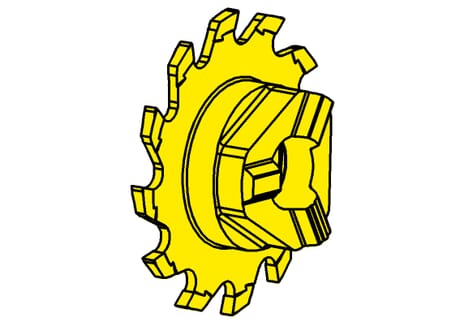

HORN Insert 713.0100.00 TI25 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
21.7
mm
Number of teeth (Z)
12
St.
ISO_SSC
HORN313113$84R$$$$$
DIN_SSC
HORN31311384R
Katalog_SSC
313113R
plating-seat-size
0
Width of groove (w)
1
mm
Maximum milling depth/ depth of groove (tmax)
4.5
mm
Cutting insert thickness, setting length complete (s)
5.9
mm
eclass-shortcut
21-18-20-11
| Downloads | |
|---|---|
| 713010000_20210629_124238541.DXF | Download |
| 713010000_20230112_152426778.STP | Download |
| Download all files | |
