842.TR0I.R.01.K1
Part number 842TR0IR01K1

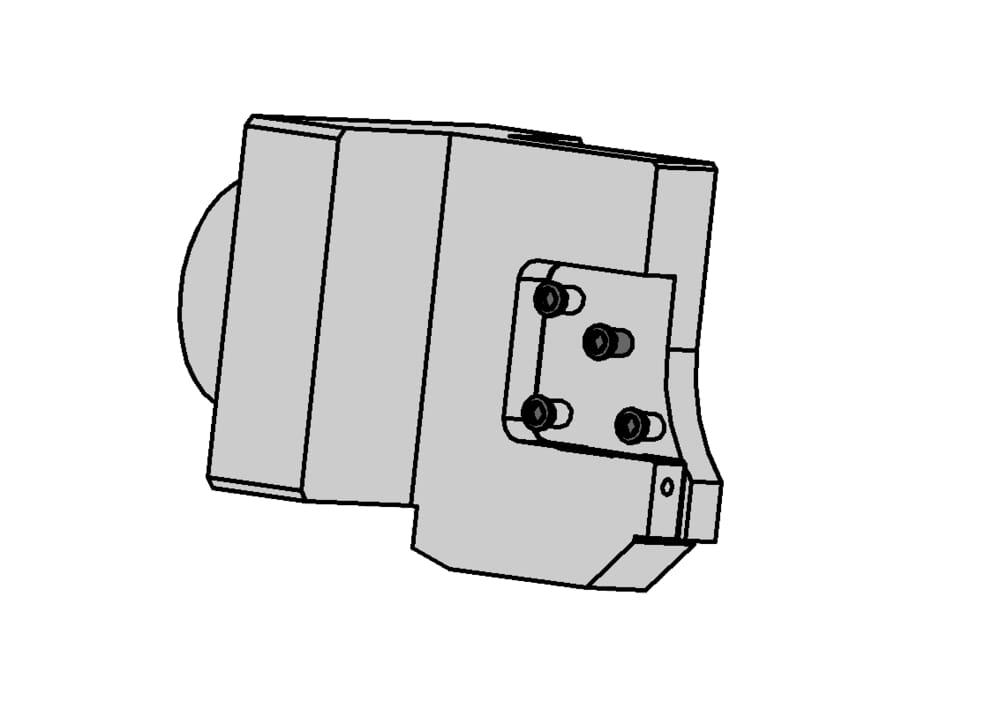

HORN 842.TR0I.R.01.K1 for Turning
Please note:Technical instructions

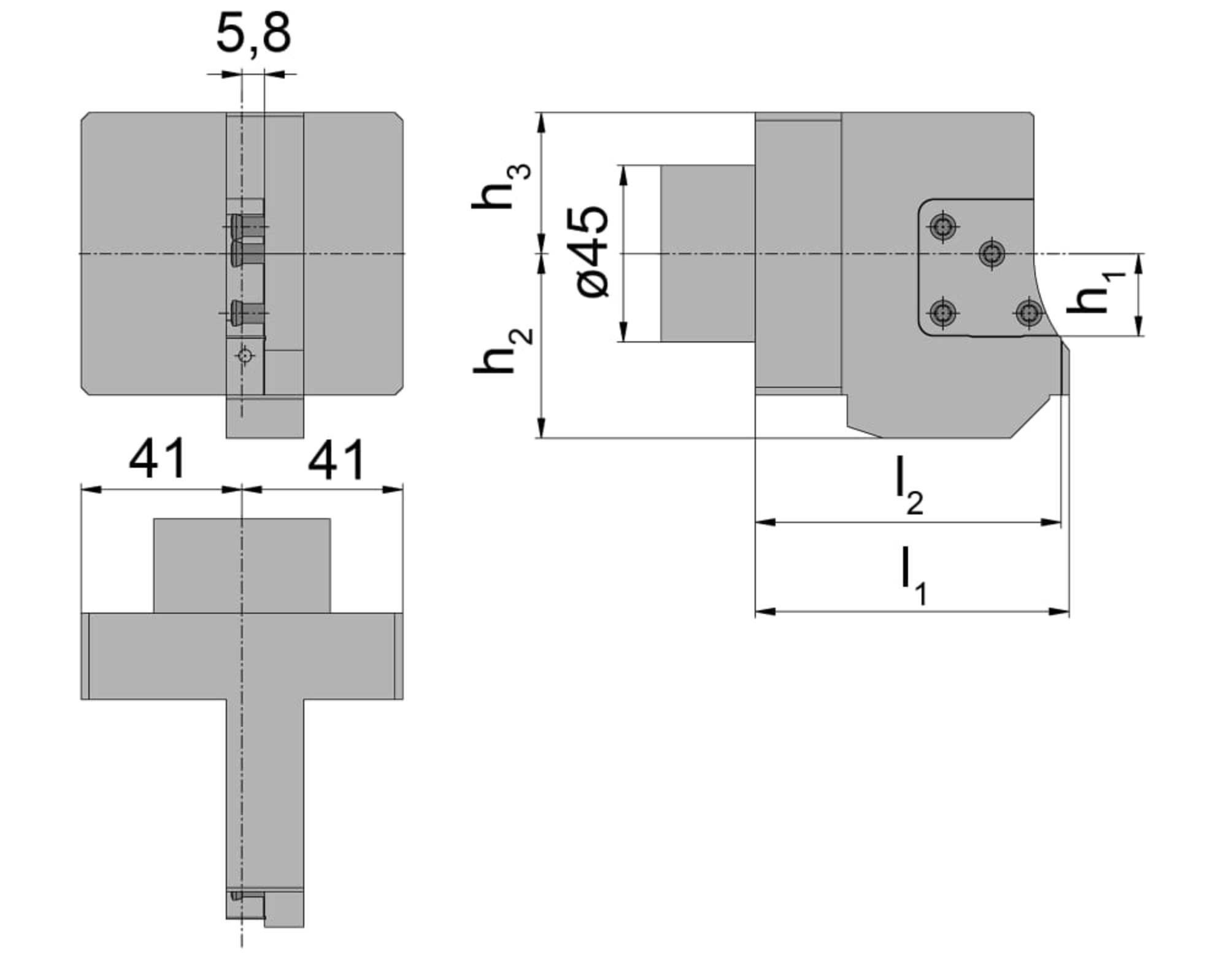

Dimension center to lower side of holder (h3)
36
eclass-shortcut
21-18-10-01
Katalog_CCTMS
Index Traub
Katalog_CCTWS
842001;842002
DIN_CCTWS
HORN-84200193;HORN-84200293
ISO_CCTWS
HORN84200193$$;HORN84200293$$
Cutting insert width (l2)
78
Dimension center to upper side of holder (h2)
47
Machine type (Maschinentyp)
TRAUB TNL18/20/32 TNK42
Length from bore (l1)
80
mm
Cassette system from the middle (h1)
21
| Downloads | |
|---|---|
| 842TR0IR01K1.DXF | Download |
| 842TR0IR01K1_20230112_135236717.STP | Download |
| Download all files | |
