845.VDI40.B2.00101

cutting body type VDI 40

Part number 845VDI40B200101

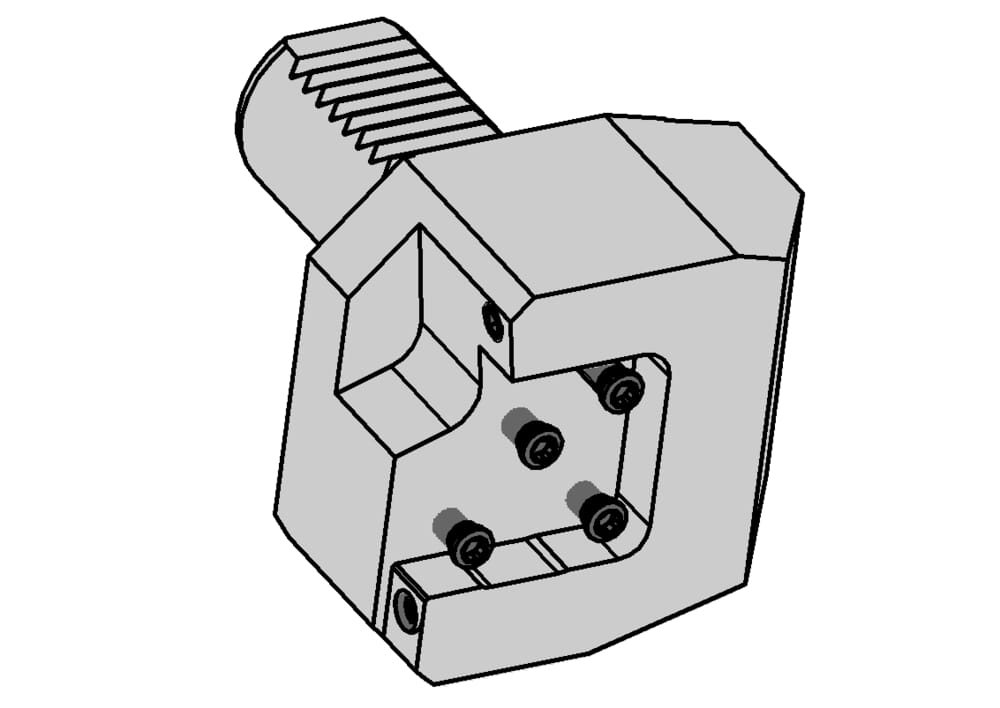

HORN cutting body type VDI 40 845.VDI40.B2.00101 for Turning

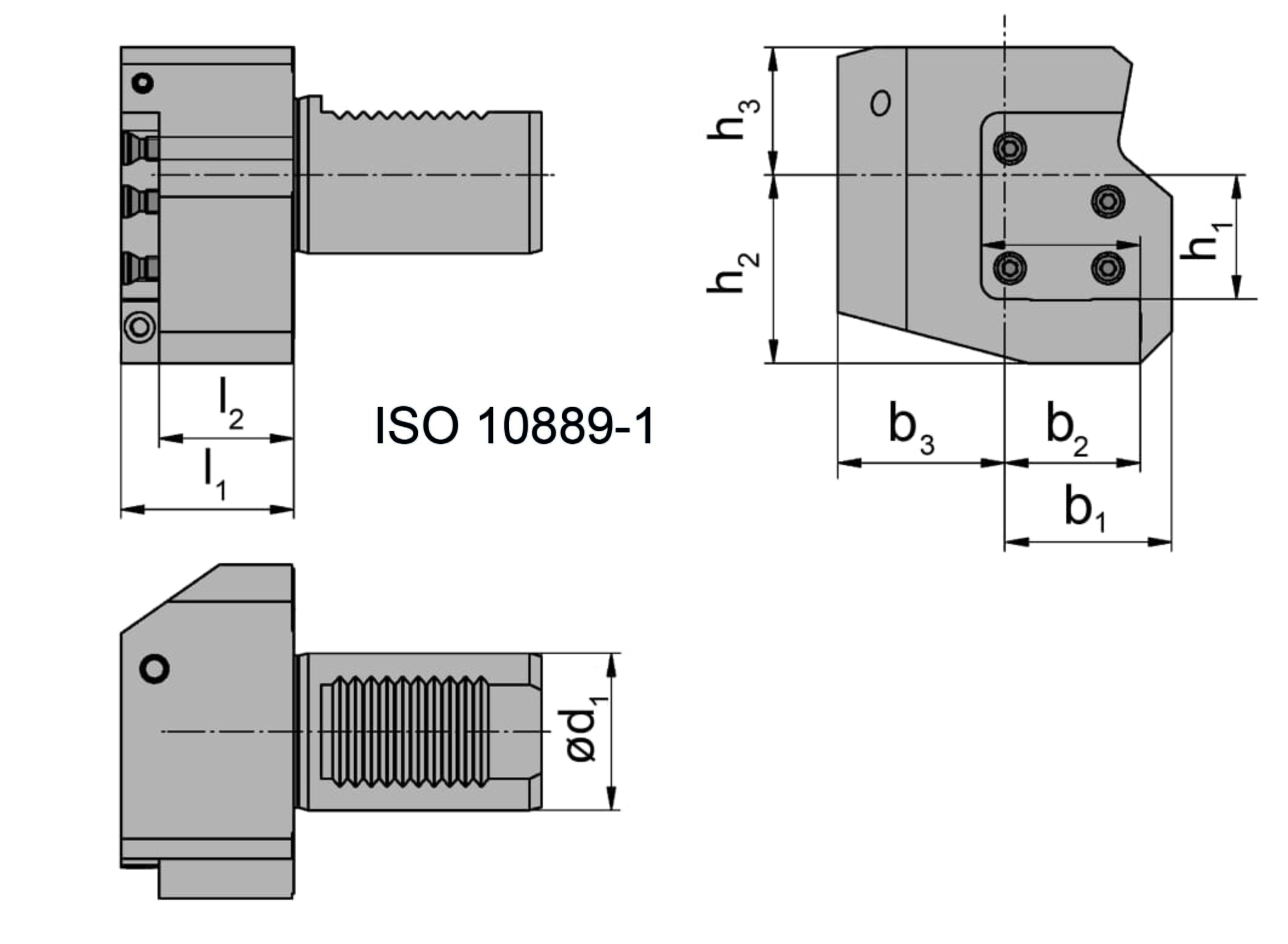

Dimension center to left side holder (b3)

42.5 mm

eclass-shortcut

21-18-10-01

Katalog_CCTMS

VDI40

ISO_CCTMS

ZYV01C0400$$$$

DIN_CCTMS

ZYV04000115

Katalog_CCTWS

845001;845002

DIN_CCTWS

HORN-84500193;HORN-84500293

ISO_CCTWS

HORN84500193$$;HORN84500293$$

Dimension center to locating face cassette (b2)

34.5 mm

Dimension center to right side holder (b1)

42.5 mm

Cutting insert width (l2)

34.3 mm

Dimension center to lower side of holder (h2)

48 mm

Dimension center to upper side of holder (h3)

32.5 mm

Length from bore (l1)

44 mm

Cassette system from the middle (h1)

31.65 mm
