960.A.0.26.0000.IK
Toolholder
Part number 960A0260000IK

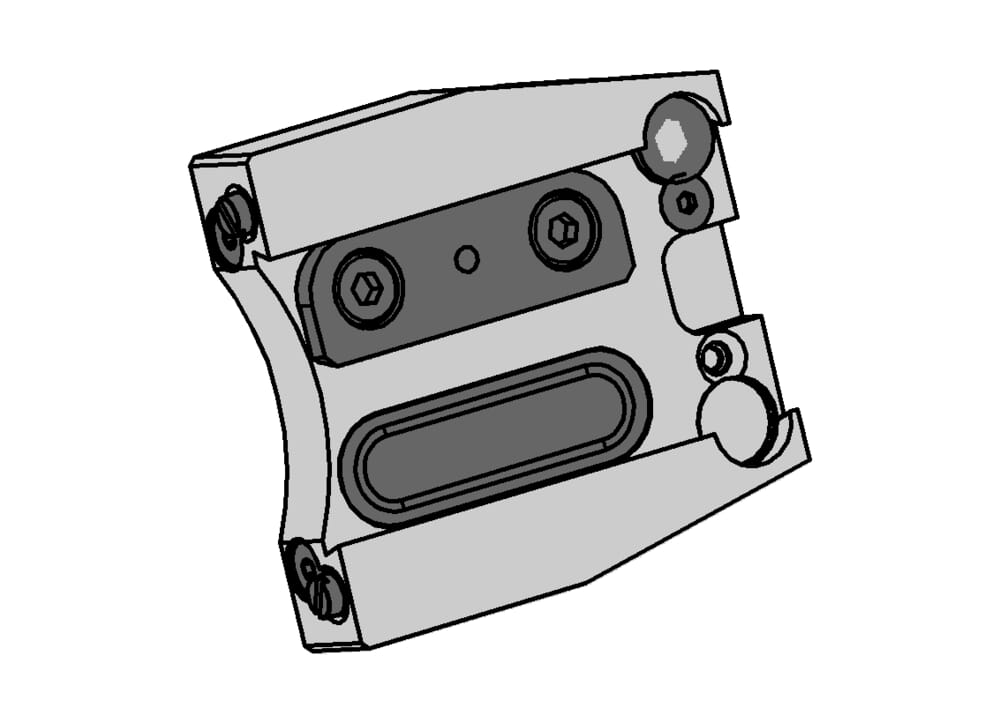

HORN Toolholder 960.A.0.26.0000.IK for Turning
Please note:Technical instructions

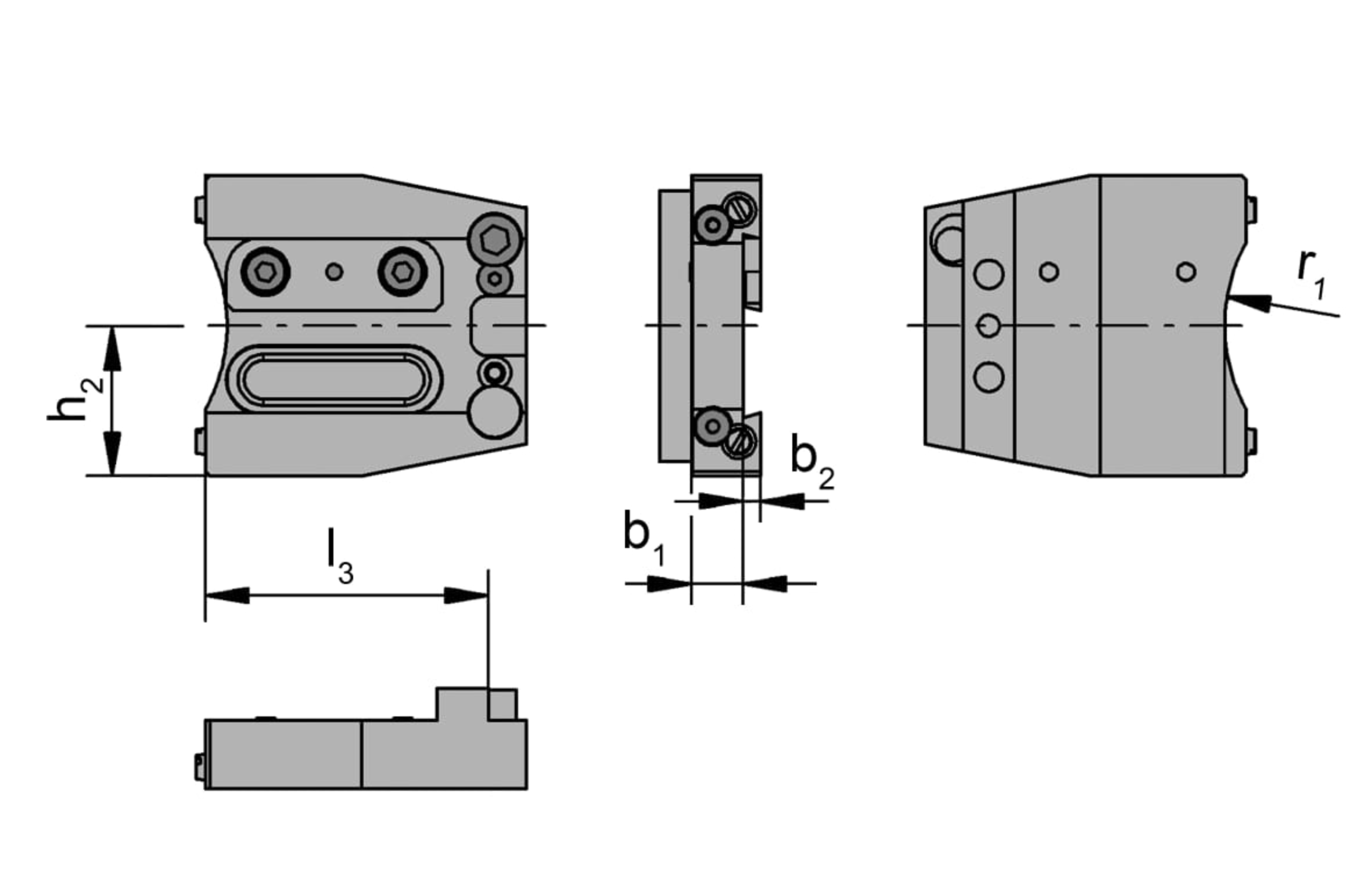

System cassette outer edge to grooving holder (b2)
4.5 mm
System grooving holder to system cassette (b1)
12 mm
Radius grooving holder (r1)
40
Dimension to outer edge grooving holder (l3)
66 mm
Dimension center to outer edge holder (h2)
35 mm
ISO_CCTWS
PMU01C0260$$$$;PMU01C0260$$$$
DIN_CCTWS
PMU02600115;PMU02600105
Katalog_CCTMS
FN12
eclass-shortcut
21-18-10-01
| Downloads | |
|---|---|
| 960A0260000IK.DXF | Download |
| 960A0260000IK_20240116_232358203.STP | Download |
| Download all files | |
