960.A.0.842.0000.IK

Part number 960A08420000IK

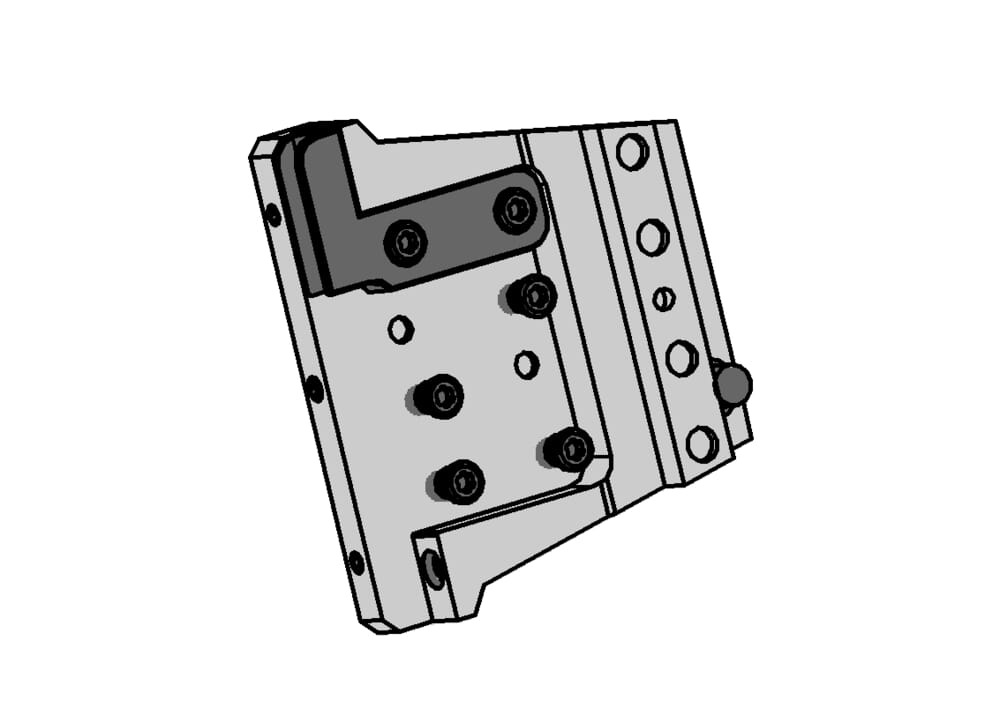

HORN 960.A.0.842.0000.IK for Turning

Dimension to outer edge grooving holder (l4)

55 mm

Radius grooving holder (r1)

70 mm

eclass-shortcut

21-18-10-01

Katalog_CCTMS

FN12

Katalog_CCTWS

842001;842002

DIN_CCTWS

HORN-84200193;HORN-84200293

ISO_CCTWS

HORN84200193$$;HORN84200293$$

Dimension center to outer edge holder (h2)

36.5 mm

Dimension locating face to radius basic holder (l3)

49.5

System grooving holder to system cassette (b1)

8.7 mm

System cassette outer edge to grooving holder (b2)

10.2 mm

Cutting insert width (l2)

45.5 mm

Cassette system from the middle (h1)

21 mm
