960.BMT55.C0.00401

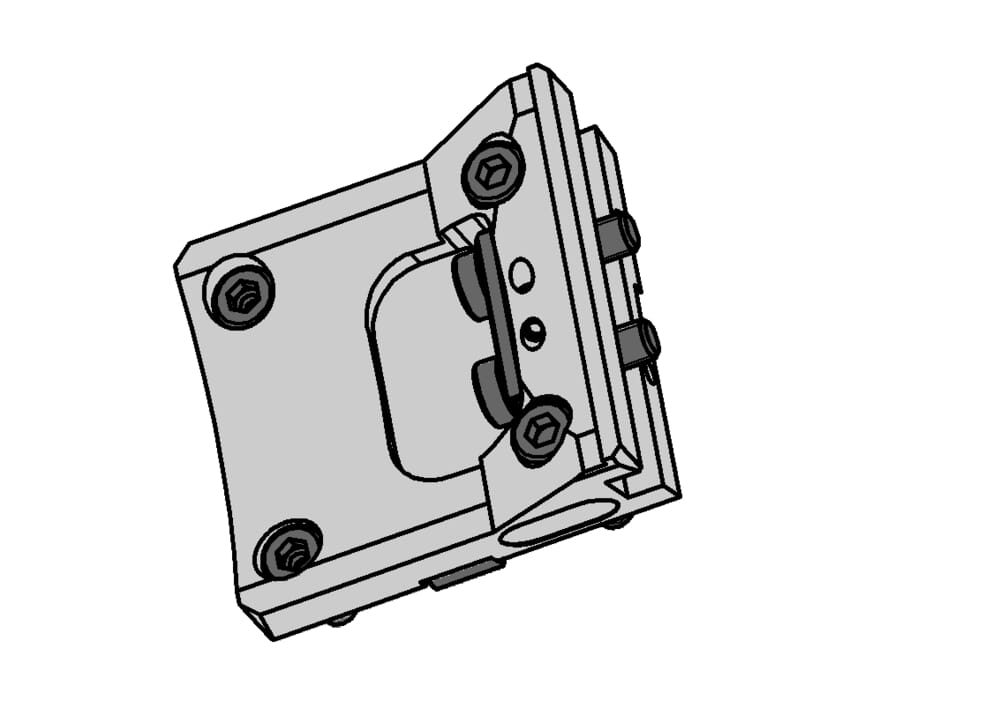

BMT base holder
Part number 960BMT55C000401
HORN BMT base holder 960.BMT55.C0.00401 for Turning
Please note:Technical instructions

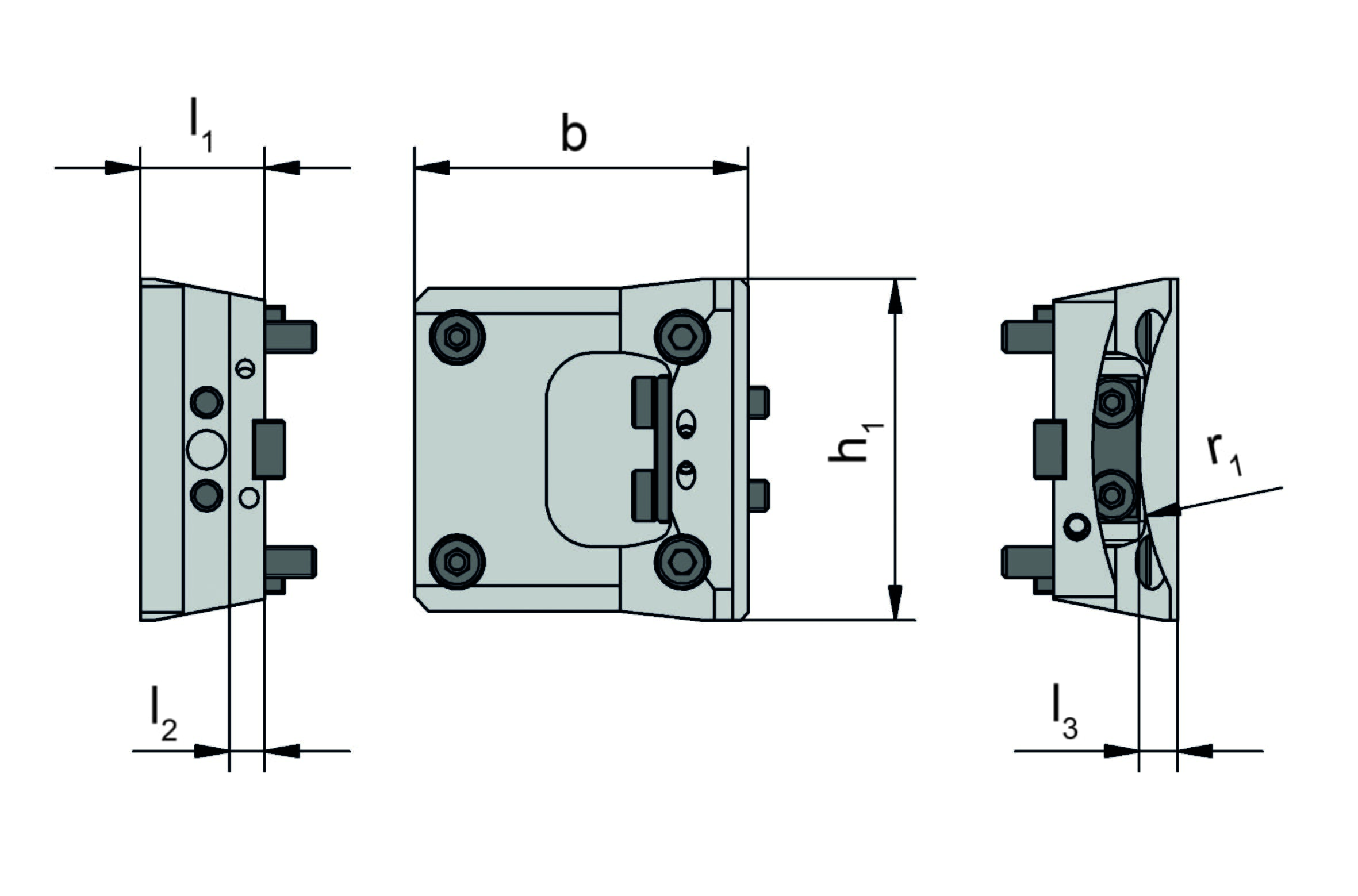

Dimension machine end to locating face grooving holder (l2)
9
mm
Radius basic holder (r1)
85
mm
dim-facing-system-to-radius-basic-holer-met
10
mm
basic-holder-height-met
84
mm
basic-holder-width-met
94.5
mm
Katalog_CCTWS
FN12
Total length (l1)
32
mm
eclass-shortcut
21-18-10-18
| Downloads | |
|---|---|
| 960BMT55C000401.DXF | Download |
| Download all files | |
