960.HSKT63.C0.00101

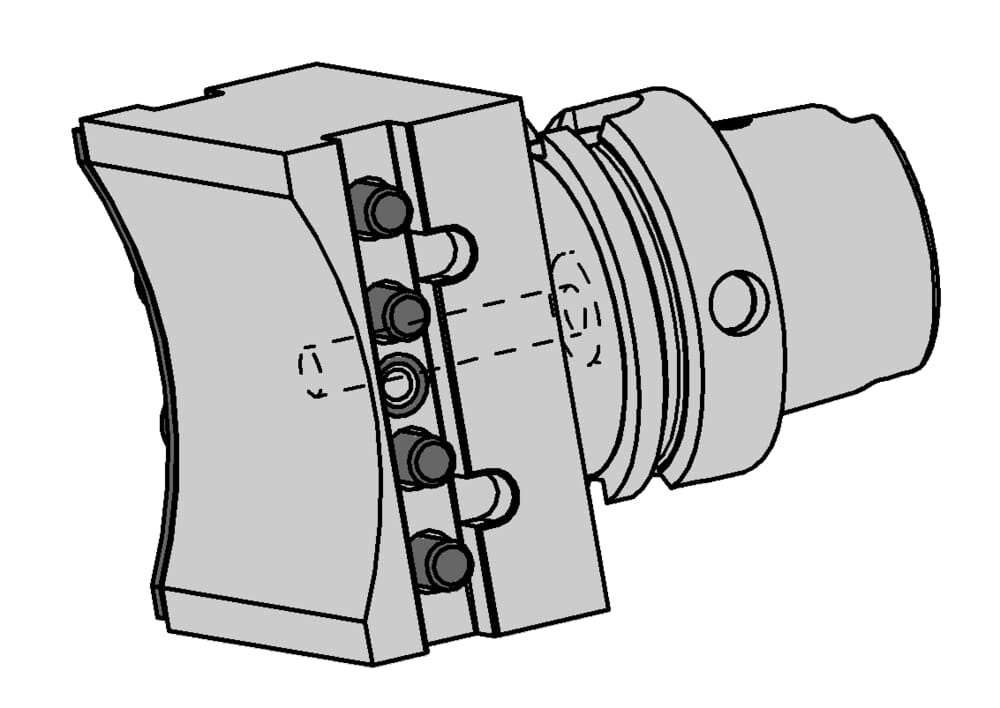

Holder
Part number 960HSKT63C000101
HORN Holder 960.HSKT63.C0.00101 for Turning
Please note:Technical instructions
dim-facing-system-to-radius-basic-holer-met
76
mm
eclass-shortcut
21-18-10-01
ISO_CCTMS
HSK07C0630$$$$
DIN_CCTMS
HSK06300795
Katalog_CCTWS
FN12
dim-center-to-facing-sys-grooving-holder-met
62
mm
basic-holder-height-met
84
mm

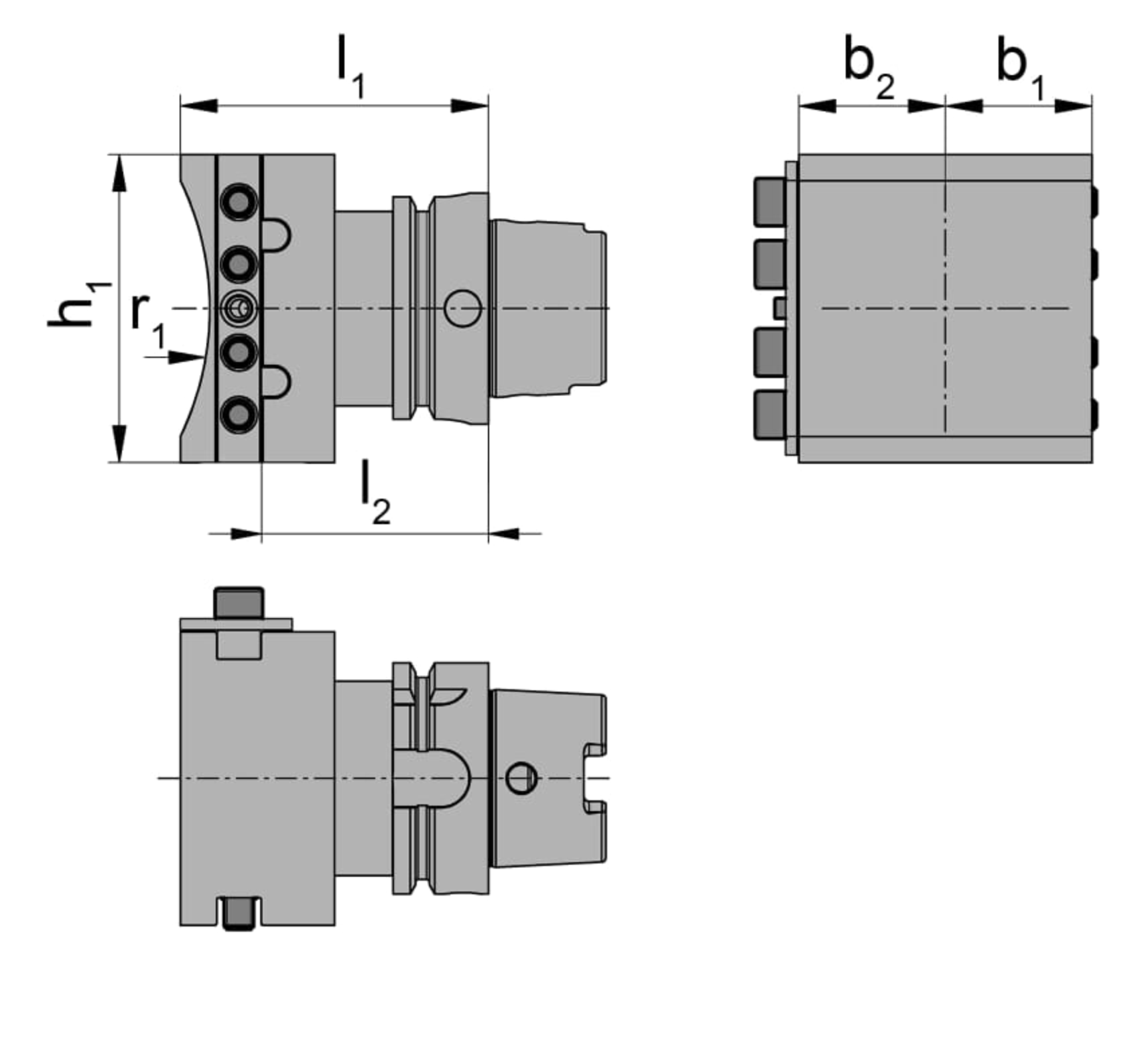

Radius basic holder (r1)
80
mm
Dimension center to left side holder (b2)
40
mm
Dimension center to right side holder (b1)
40
mm
Dimension machine end to locating face grooving holder (l2)
62
mm
Shank diameter (d1)
63
mm
| Downloads | |
|---|---|
| 960HSKT63C000101_20210629_112300537.DXF | Download |
| 960HSKT63C000101_20230112_154715951.STP | Download |
| Download all files | |
