960.MAZ00.C0.00101
Part number 960MAZ00C000101

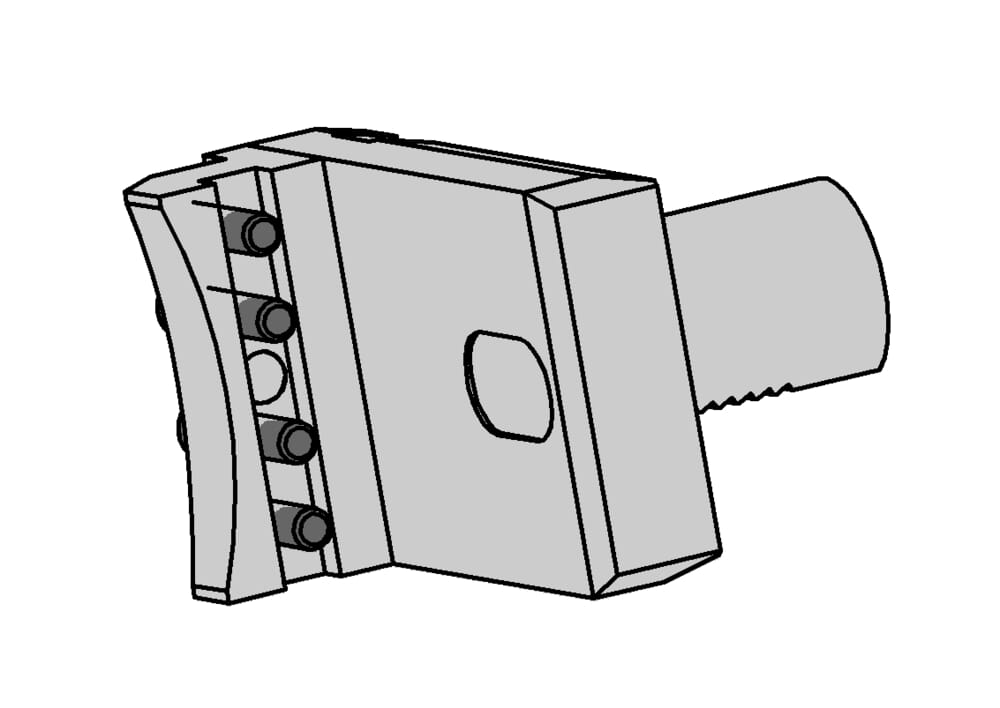

HORN 960.MAZ00.C0.00101 for Turning
Please note:Technical instructions

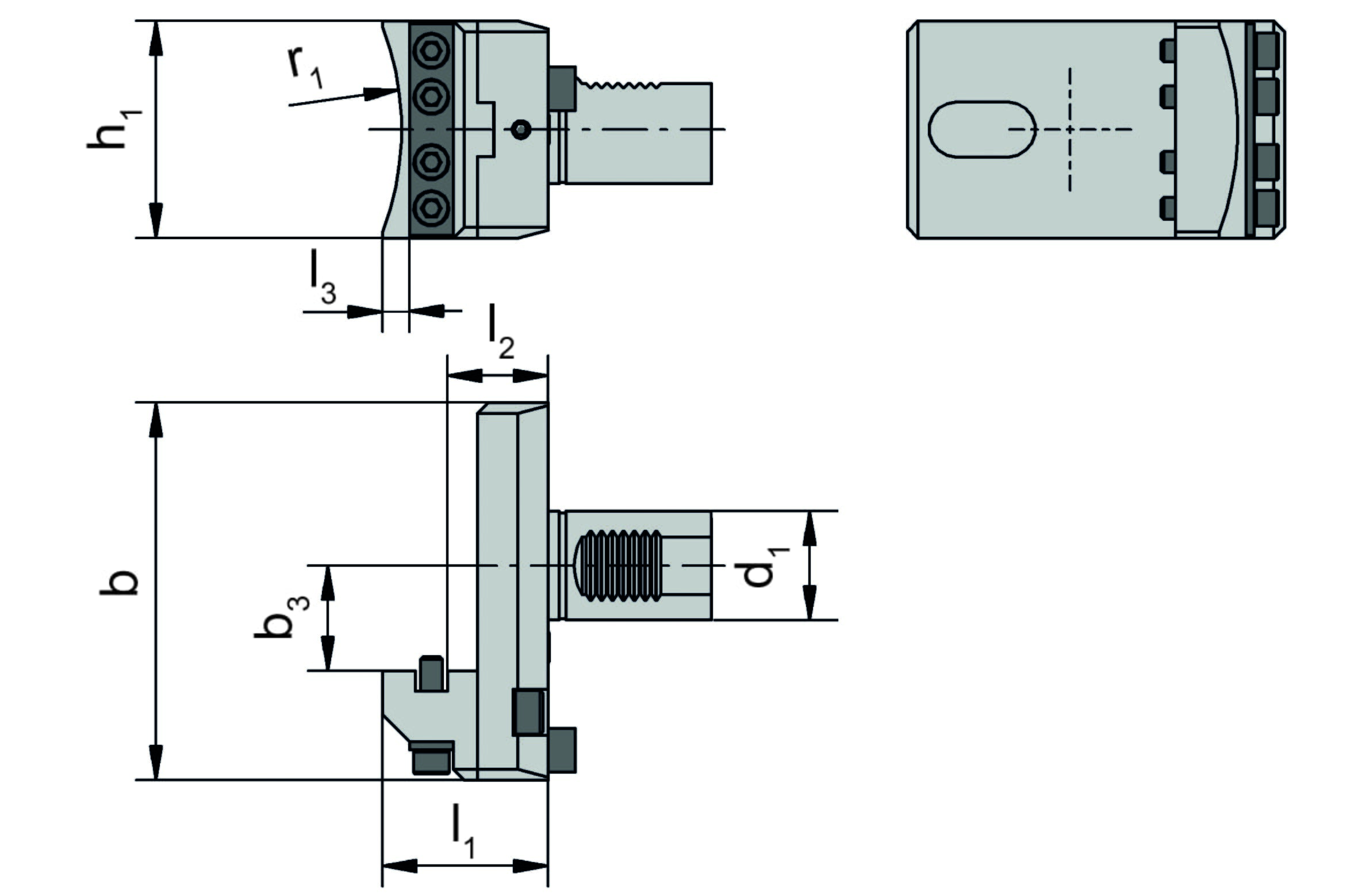

Shank diameter (d1)
40
mm
Dimension machine end to locating face grooving holder (l2)
37
mm
Radius basic holder (r1)
105
mm
dim-facing-system-to-radius-basic-holer-met
7
mm
basic-holder-height-met
80
mm
basic-holder-width-met
139
mm
Dimension center to facing system grooving holder (b3)
38.75
mm
Katalog_CCTWS
FN12
Total length (l1)
61
mm
| Downloads | |
|---|---|
| 960MAZ00C000101.DXF | Download |
| 960MAZ00C000101_20230112_154722781.STP | Download |
