960.VDI50.B0.00101
tool holder
Part number 960VDI50B000101

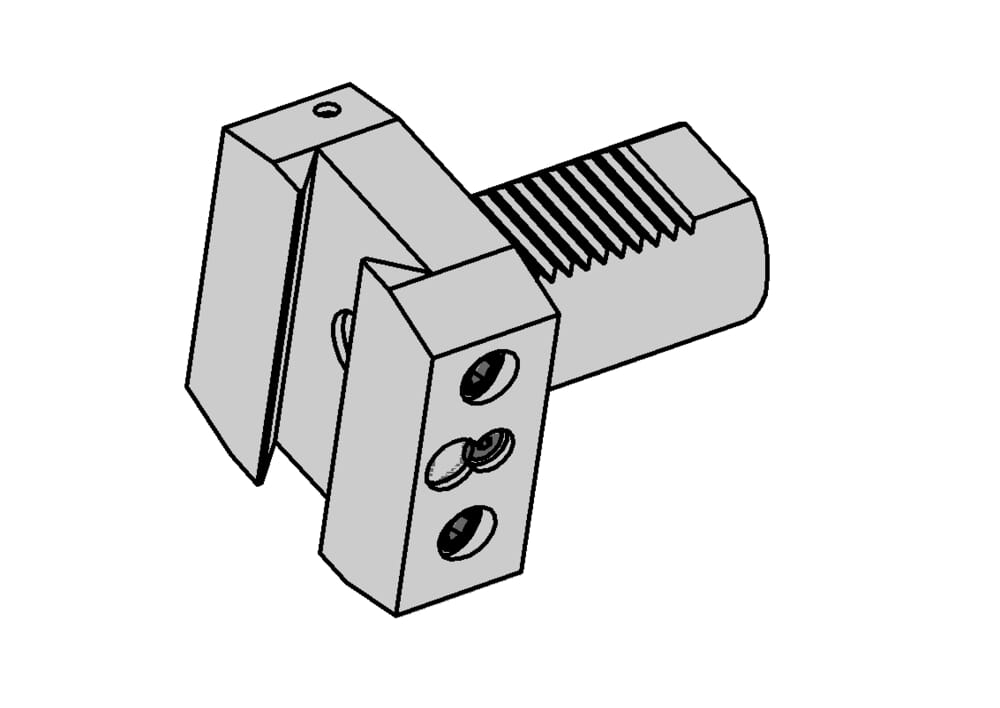

HORN tool holder 960.VDI50.B0.00101 for Turning
Please note:Technical instructions

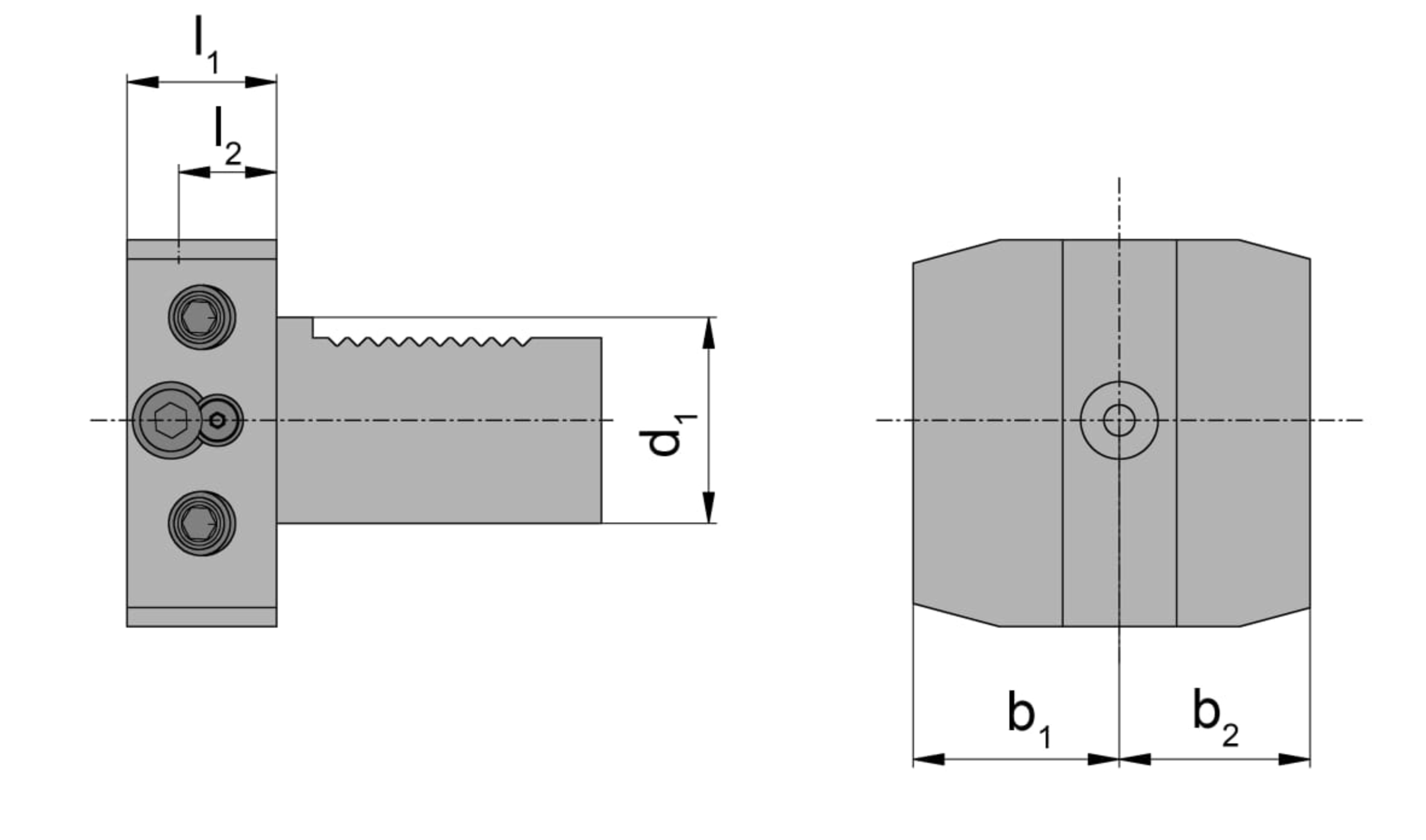

Shank diameter (d1)
50
mm
Flange thickness (l1)
29
mm
Dimension machine end to locating face grooving holder (l2)
19
mm
Dimension center to right side holder (b1)
50
mm
Dimension center to left side holder (b2)
50
mm
Katalog_CCTWS
SZ60
DIN_CCTMS
ZYV05000115
ISO_CCTMS
ZYV01C0500$$$$
Katalog_CCTMS
VDI50
eclass-shortcut
21-18-10-18
| Downloads | |
|---|---|
| 960VDI50B000101.DXF | Download |
| Download all files | |
