ABS50.380.0063.05

Toolholders

Part number ABS50380006305

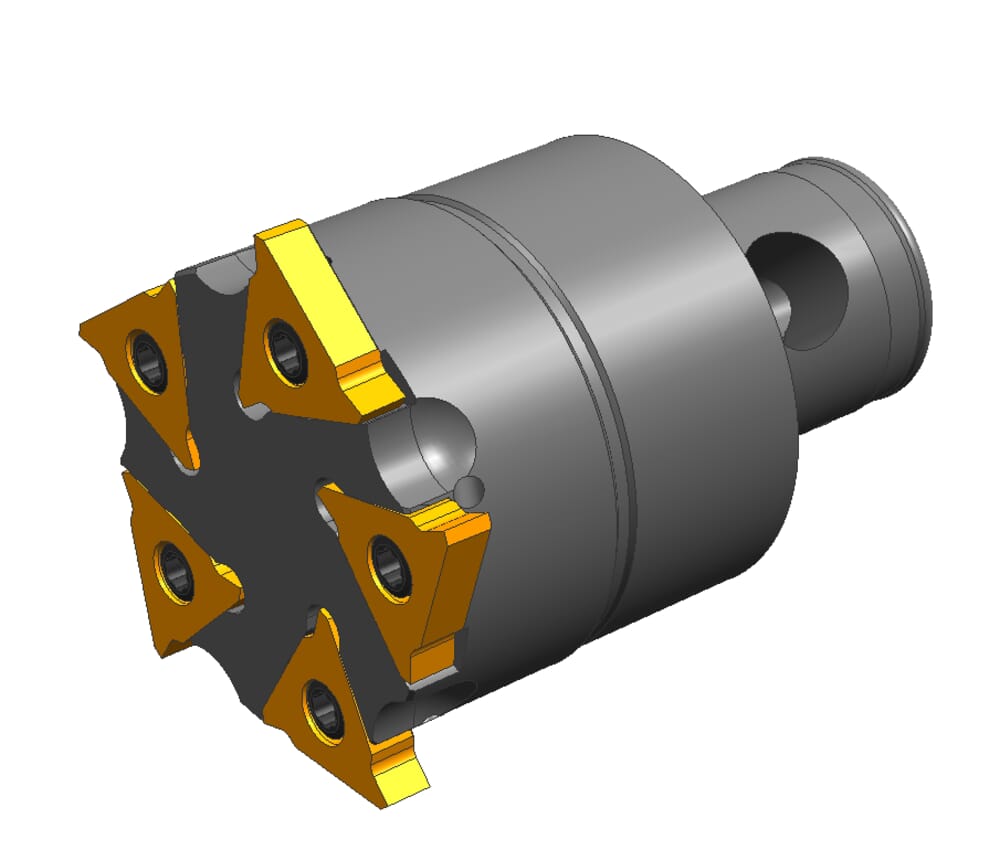

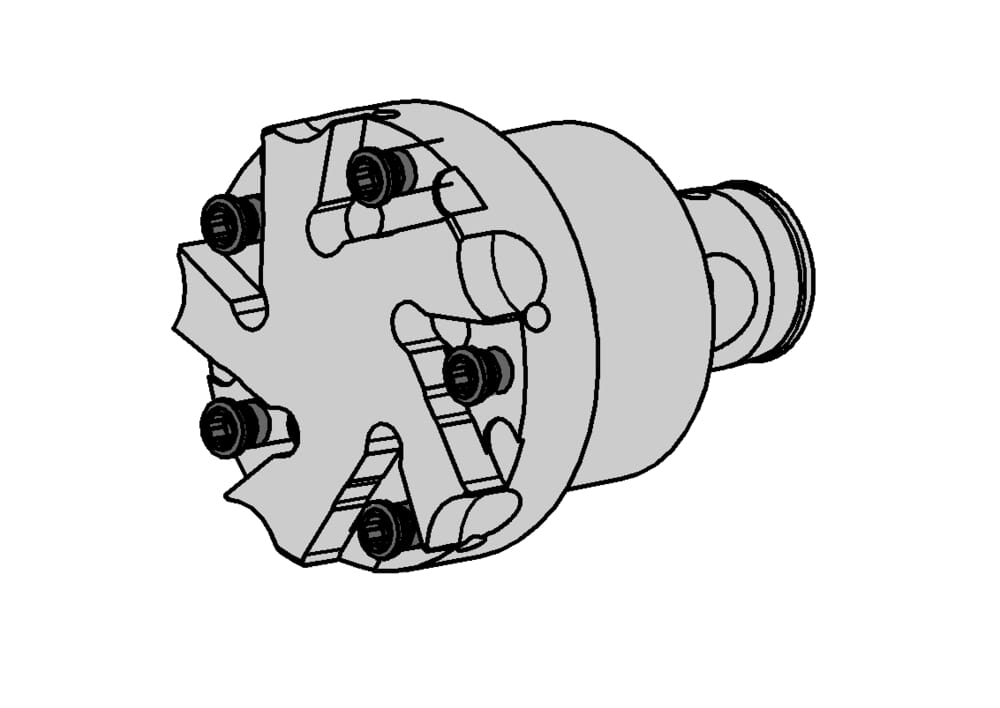

HORN Toolholders ABS50.380.0063.05 for Milling

DIN_CCTWS

HORN-314027101R;HORN-314041101R;HORN-314052101R

eclass-shortcut

21-18-08-01

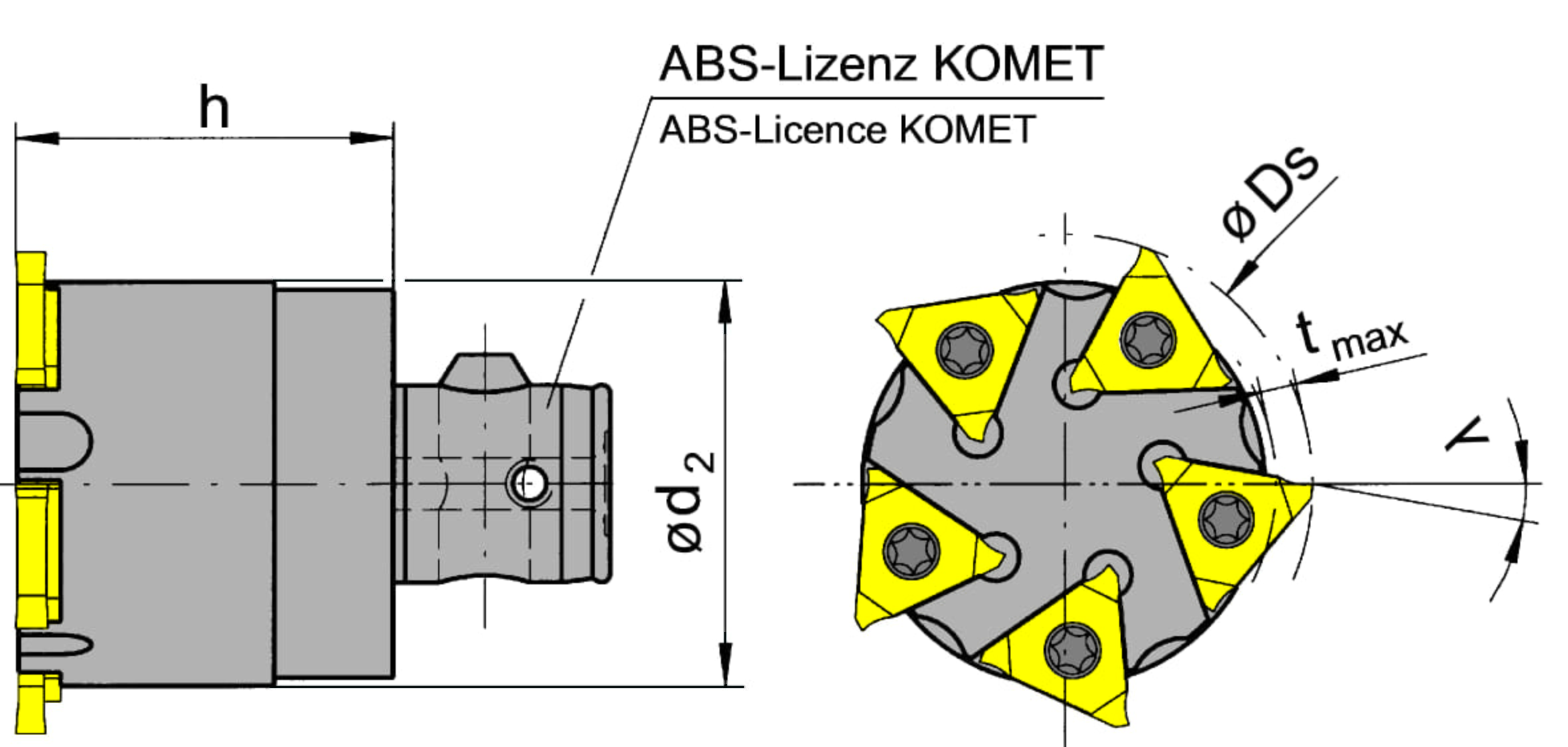

Total length from flange (h)

50 mm

Miller body diameter (d2)

51 mm

Maximum milling depth/ depth of groove (tmax)

5 mm

ISO_CCTMS

ABS01G0500$$$$

DIN_CCTMS

ABS05000115

Katalog_CCTWS

314027R;314041R;314052R

ISO_CCTWS

HORN314027101R$$$$$;HORN314041101R$$$$$;HORN314052101R$$$$$

Einlegewinkel Wendeschneidplatte (λ)

10 °

Number of teeth (Z)

5 St.

Cutting diameter (Ds)

63 mm
