ABS63.380.0080.08

Toolholders

Part number ABS63380008008

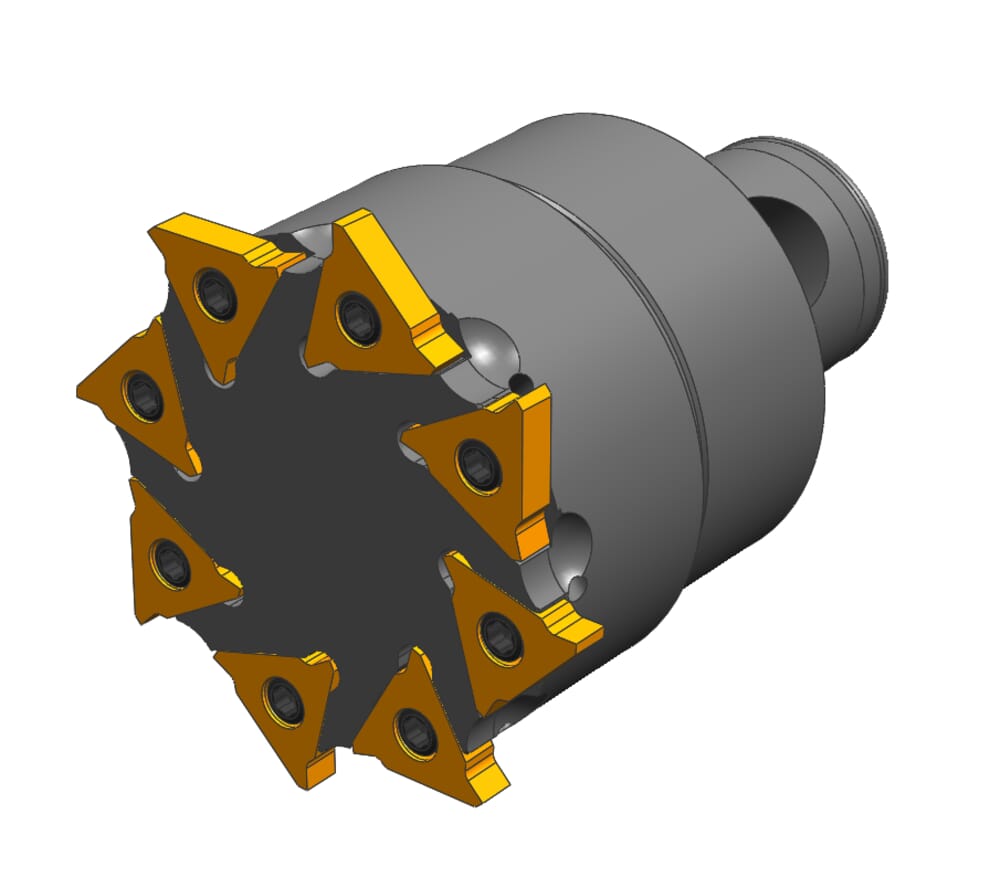

HORN Toolholders ABS63.380.0080.08 for Milling

DIN_CCTWS

HORN-314027101R;HORN-314041101R;HORN-314052101R

eclass-shortcut

21-18-08-01

Total length from flange (h)

63 mm

Miller body diameter (d2)

68 mm

Maximum milling depth/ depth of groove (tmax)

5 mm

ISO_CCTMS

ABS01G0630$$$$

DIN_CCTMS

ABS06300115

Katalog_CCTWS

314027R;314041R;314052R

ISO_CCTWS

HORN314027101R$$$$$;HORN314041101R$$$$$;HORN314052101R$$$$$

Einlegewinkel Wendeschneidplatte (λ)

10 °

Number of teeth (Z)

8 St.

Cutting diameter (Ds)

80 mm
