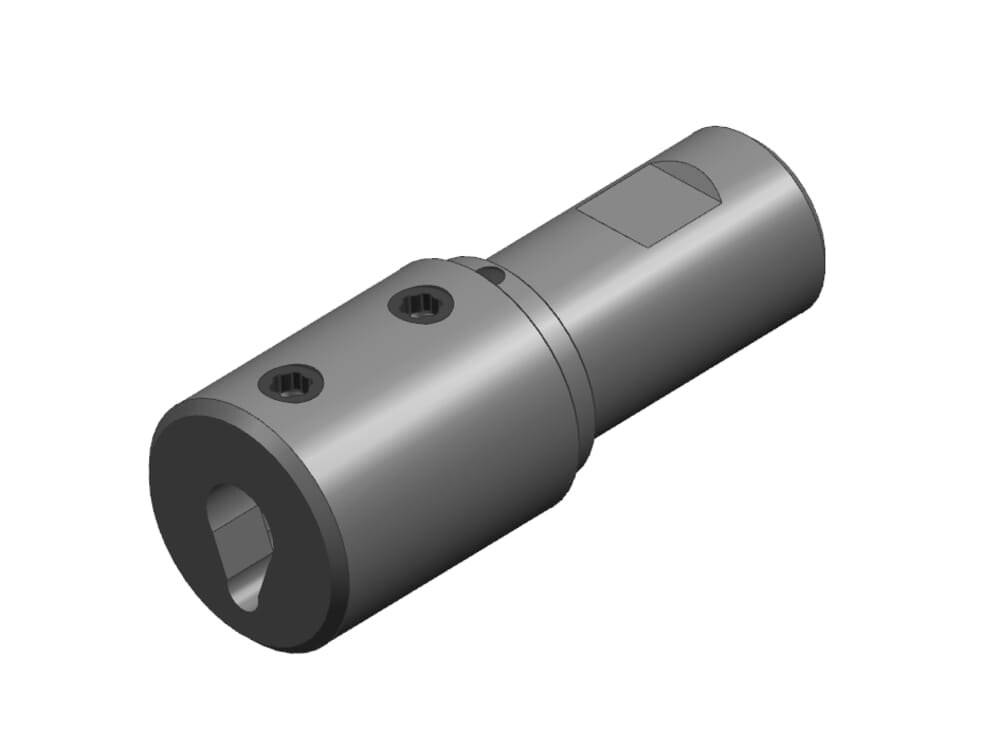

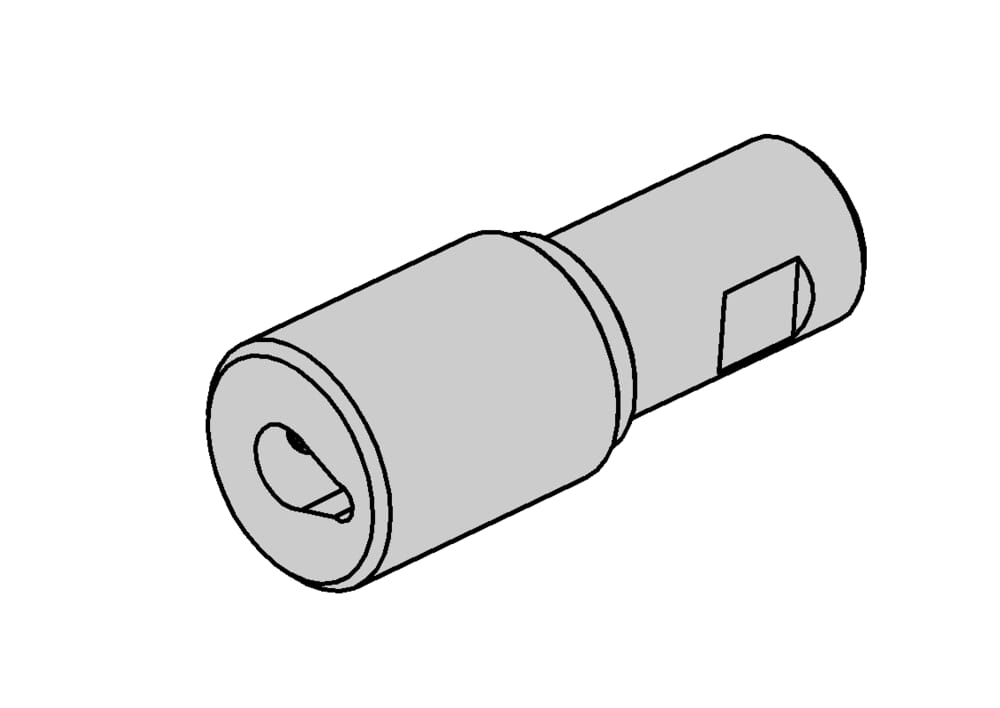

B110.0016.U1.02
Toolholder
Part number B1100016U102
HORN Toolholder B110.0016.U1.02 for
Please note:Technical instructions
Shank diameter (d)
16
mm
Height clamping surface(s) (h)
14
mm
Head diameter (d1)
21.5
mm
Head length (l2)
29
mm
ISO_CCTWS
HORN110260$95N$$$$$
DIN_CCTWS
HORN-11026095N
Katalog_CCTWS
110260
DIN_CCTMS
ZYL01601015
ISO_CCTMS
ZYL10G1600h$06
Total length (l1)
56
mm
| Downloads | |
|---|---|
| B1100016U102_20210629_113650403.DXF | Download |
| B110_0016_U1_02_20171121_203758427.STP | Download |
| Download all files | |
