B114.0012.03S
Toolholder
Part number B114001203S

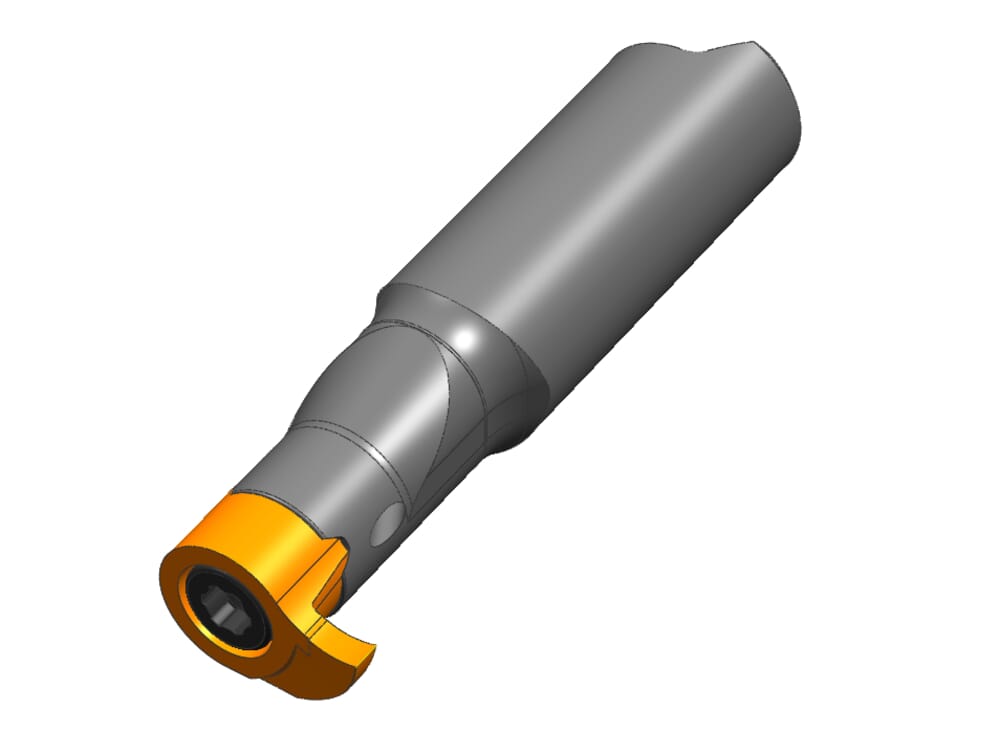

HORN Toolholder B114.0012.03S for Turning
Please note:Technical instructions

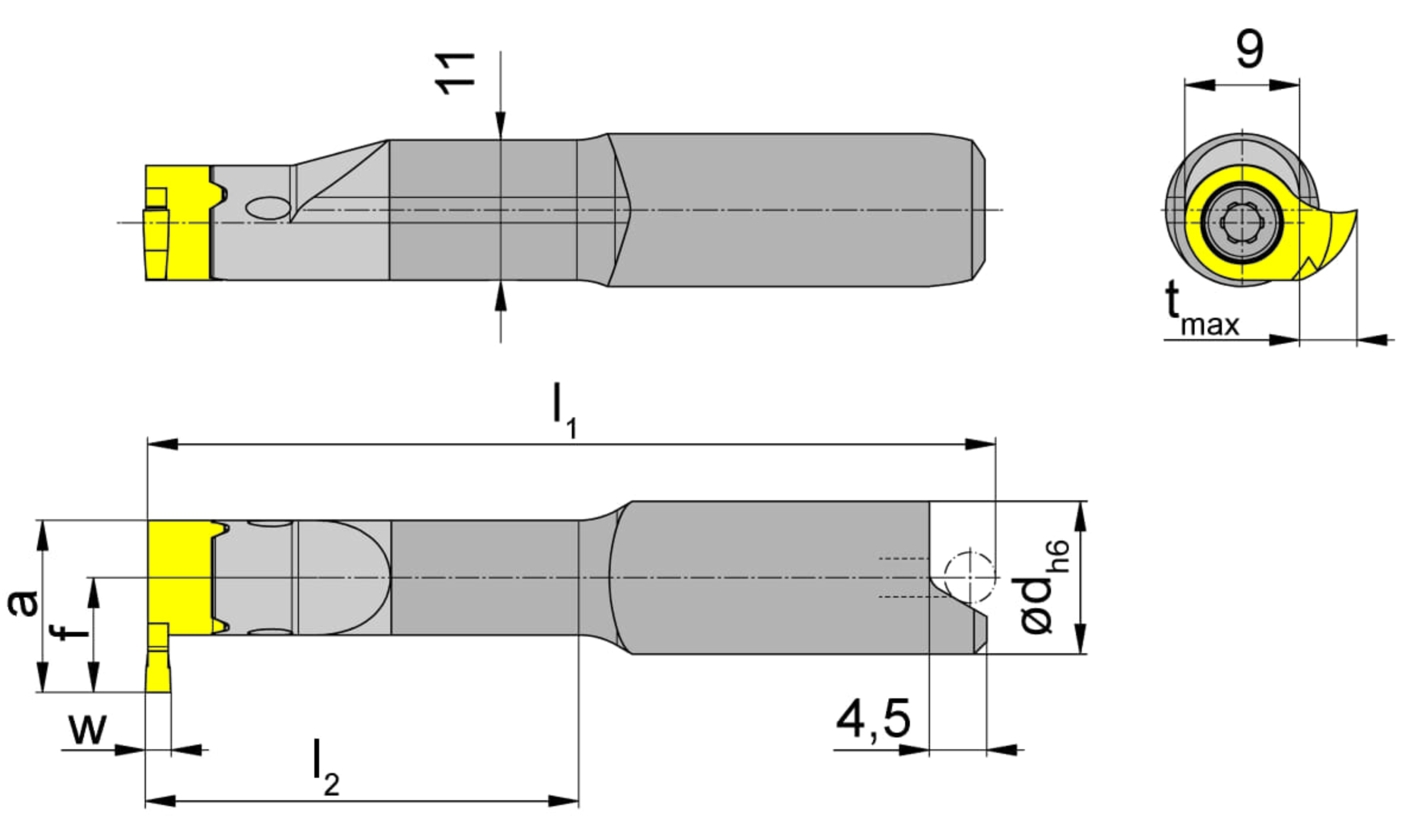

Outcropping, neck, working length (l2)
64
mm
Total length (including cutting insert) (l1)
96.7
mm
Shank, clamping diameter (d)
12
mm
ISO_CCTWS
HORN114090$84R$$$$$;HORN114090$84L$$$$$
DIN_CCTWS
HORN-11409084R;HORN-11409084L
Katalog_CCTWS
114090R;114090L
DIN_CCTMS
ZYL01200115
ISO_CCTMS
ZYL01G1200h$06
eclass-shortcut
21-18-10-05
| Downloads | |
|---|---|
| B114001203S.DXF | Download |
| B114_0012_03S_20171121_180347074.STP | Download |
| Download all files | |
