B114.0016.2.01
Toolholder
Part number B1140016201

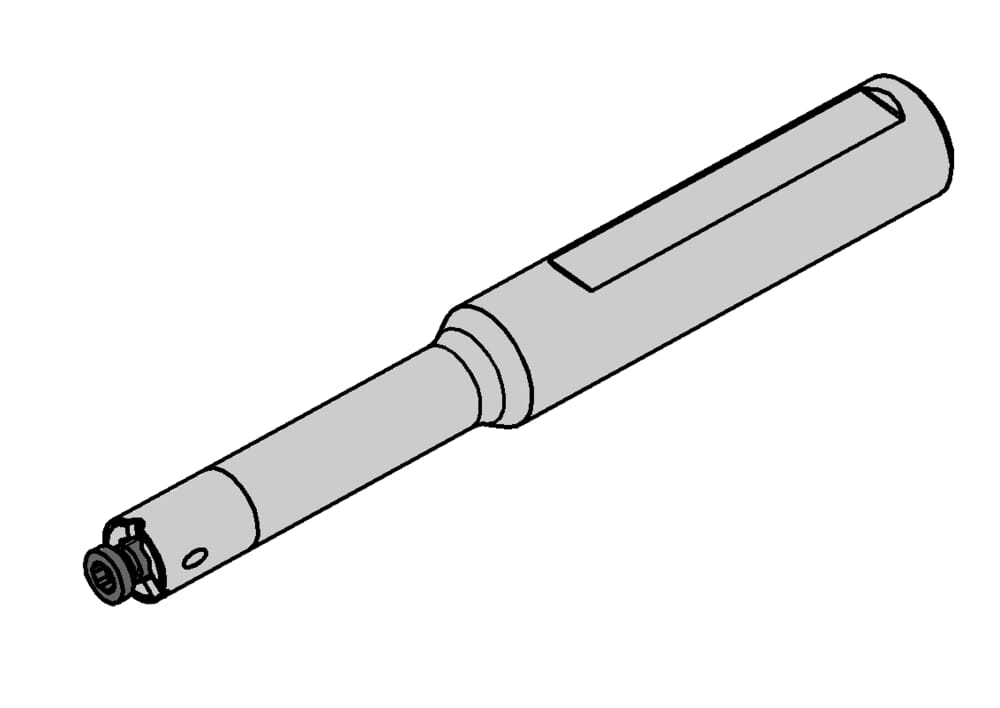

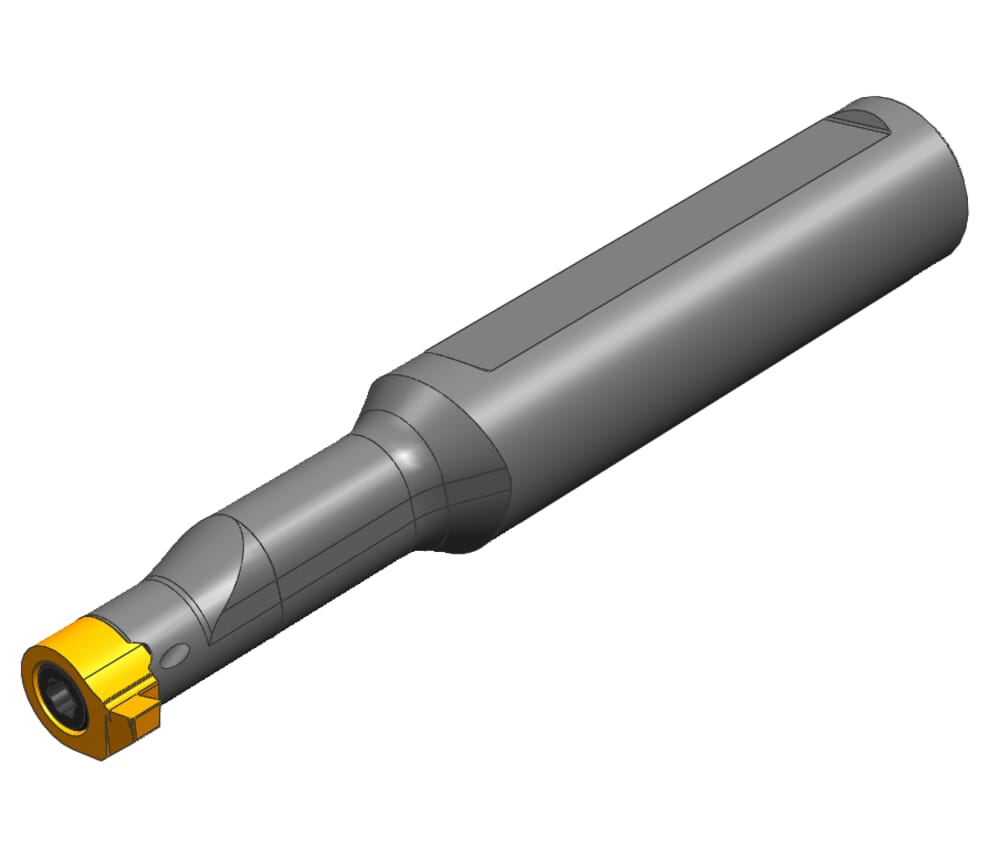

HORN Toolholder B114.0016.2.01 for Turning
Please note:Technical instructions

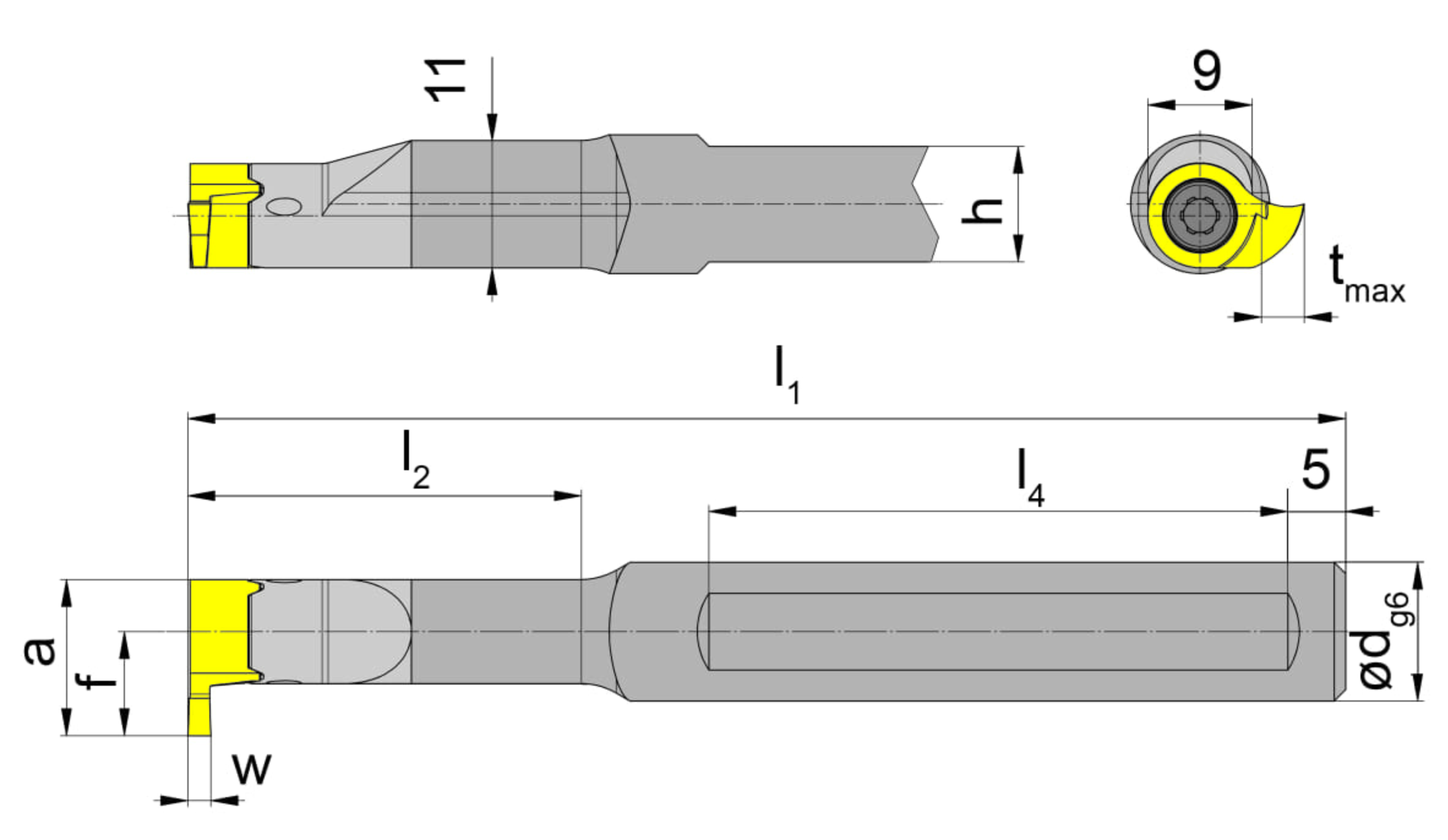

Shank, clamping diameter (d)
16
mm
eclass-shortcut
21-18-10-05
ISO_CCTMS
ZYL23G1600$$$$
DIN_CCTMS
ZYL01602315
Katalog_CCTWS
114090R;114090L
DIN_CCTWS
HORN-11409084R;HORN-11409084L
ISO_CCTWS
HORN114090$84R$$$$$;HORN114090$84L$$$$$
Length of clamping surface(s) (l4)
50
mm
Height clamping surface(s) (h)
14
mm
Total length (including cutting insert) (l1)
100
mm
Outcropping, neck, working length (l2)
34
mm
