BH10 100A 40 080
System holder
Part number BH10100A40080

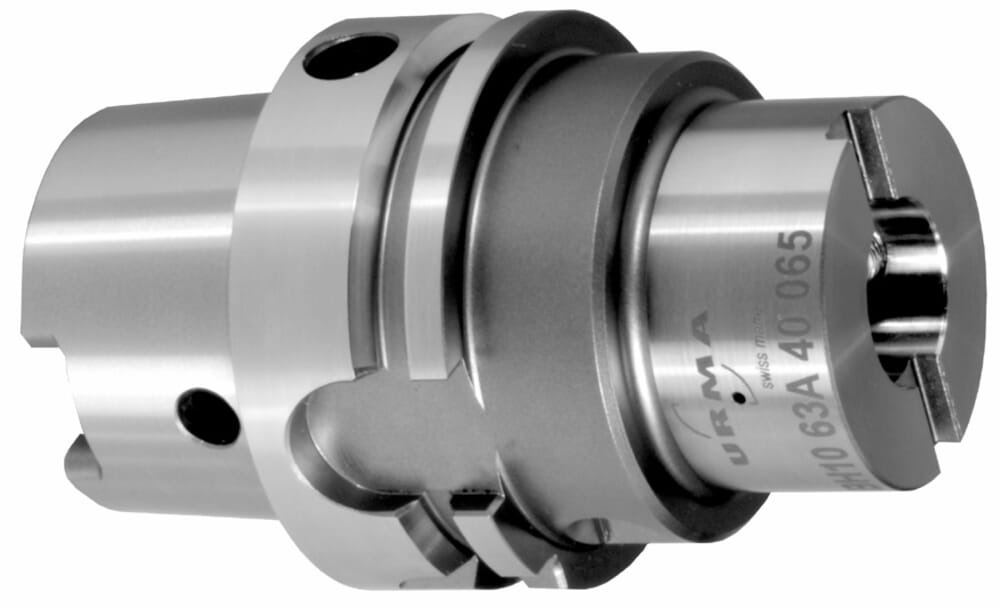

HORN System holder BH10 100A 40 080 for Milling
Please note:Technical instructions

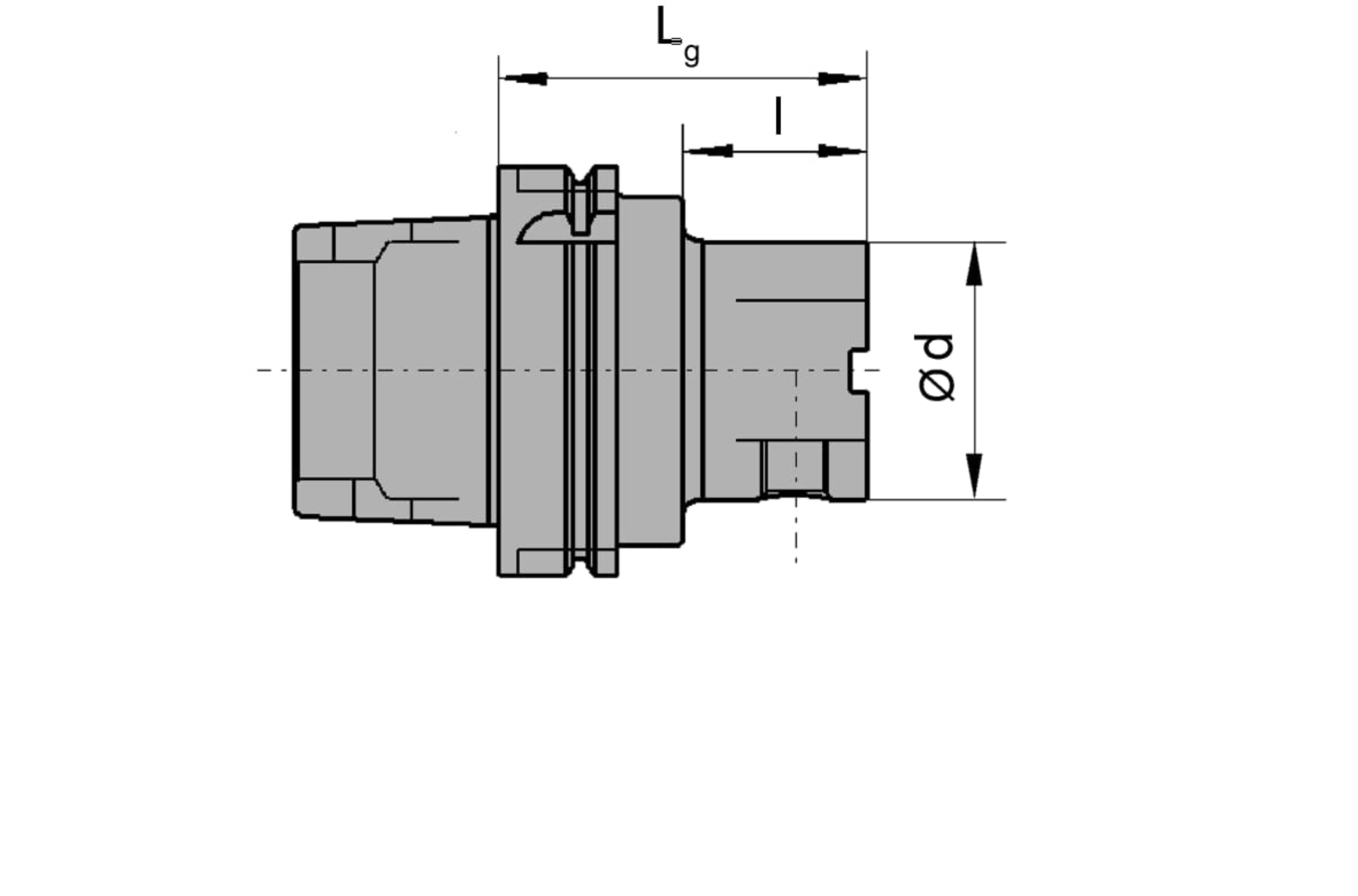

Neck length (l)
35
mm
System (System)
HSK-A 100
Interface cutting edge end (Beta-Modul)
40
mm
Weight [kg] (Gewicht [kg])
3.1
kg
Neck diameter (d)
42
mm
Working length (Lg)
80
mm
| Downloads | |
|---|---|
| BH10100A40080_20210627_135506082.DXF | Download |
| BH10100A40080_20210623_045030562.STP | Download |
| Download all files | |
