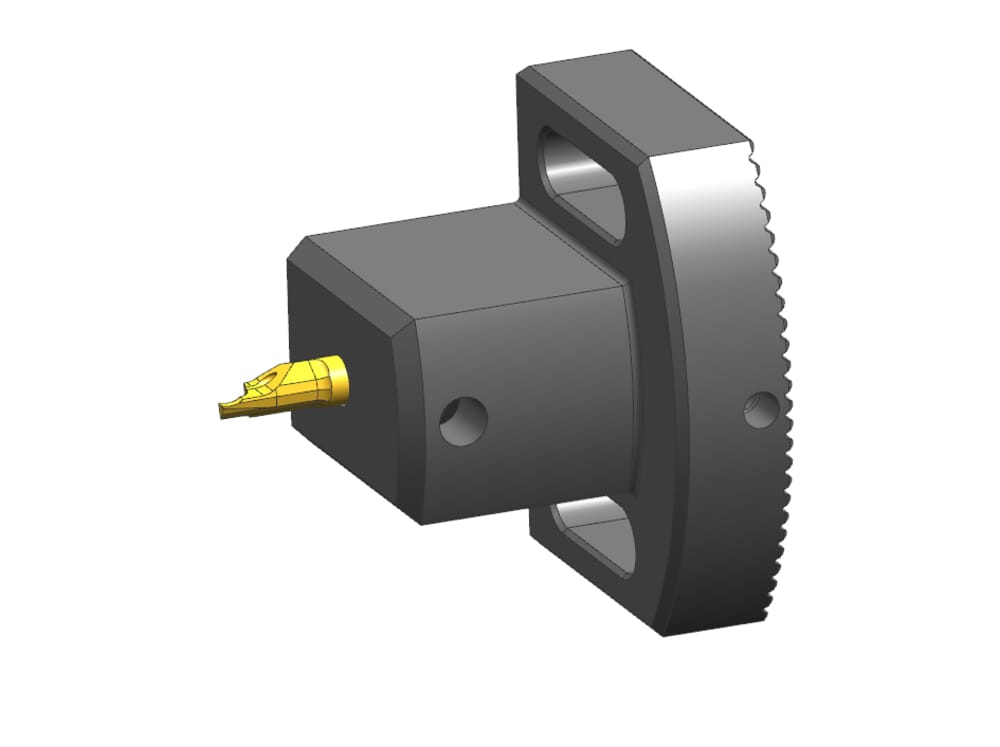

BKT105.U90G.01
Toolholder
Part number BKT105U90G01
HORN Toolholder BKT105.U90G.01 for
Please note:Technical instructions

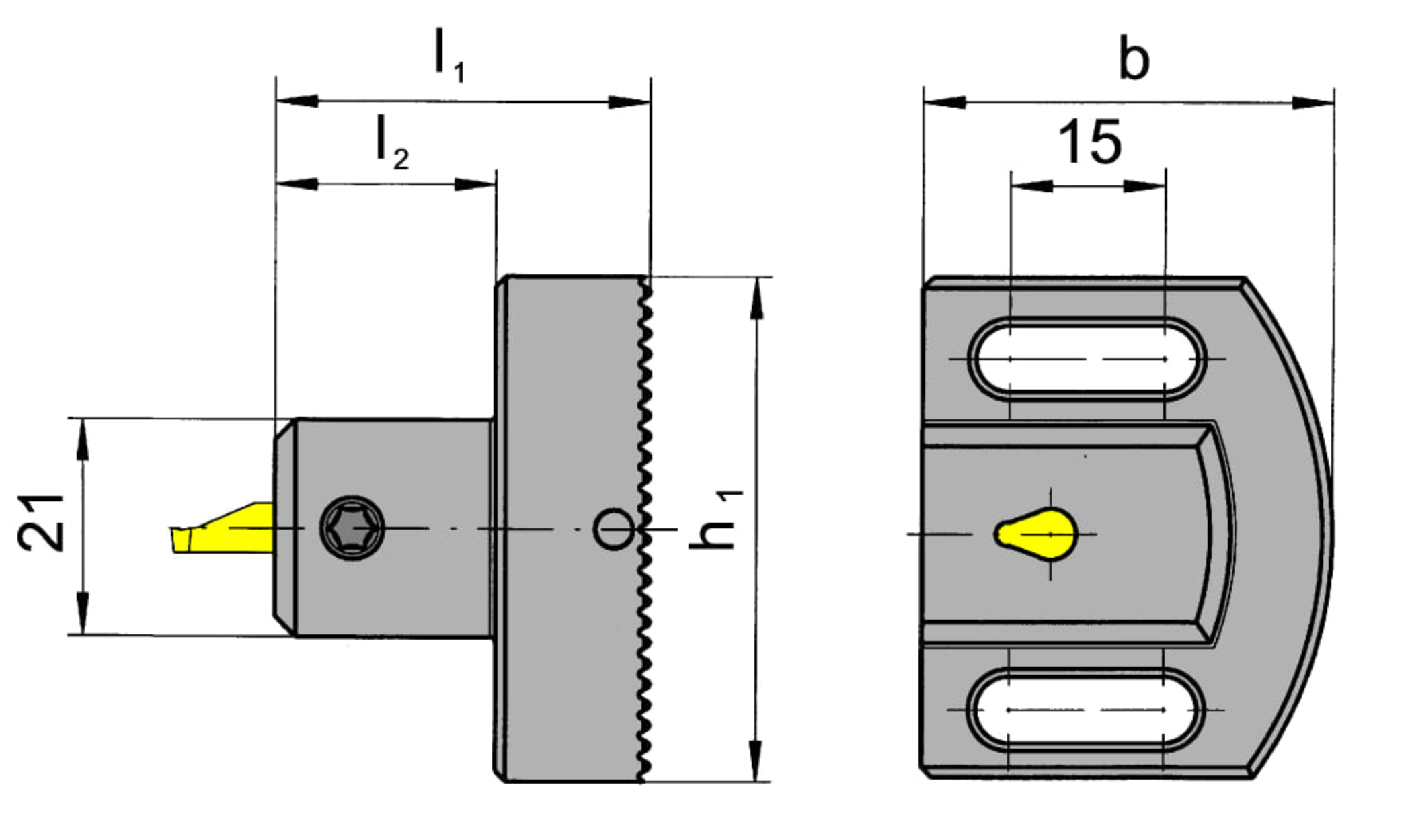

Width (b)
39.5
mm
Head length (l2)
24.4
mm
Weight [kg] (Gewicht [kg])
0.3
kg
Adapter connection height (h1)
49
mm
ISO_CCTWS
HORN105225$85N$$$$$;HORN105124$85N$$$$$;HORN105125$85N$$$$$
DIN_CCTWS
HORN-10522585N;HORN-10512485N;HORN-10512585N
Katalog_CCTWS
105123;105124;105125
Total length (l1)
36.4
mm
| Downloads | |
|---|---|
| BKT105U90G01_20210627_140301006.DXF | Download |
| BKT105_U90G_01_20171121_182911348.STP | Download |
| Download all files | |
