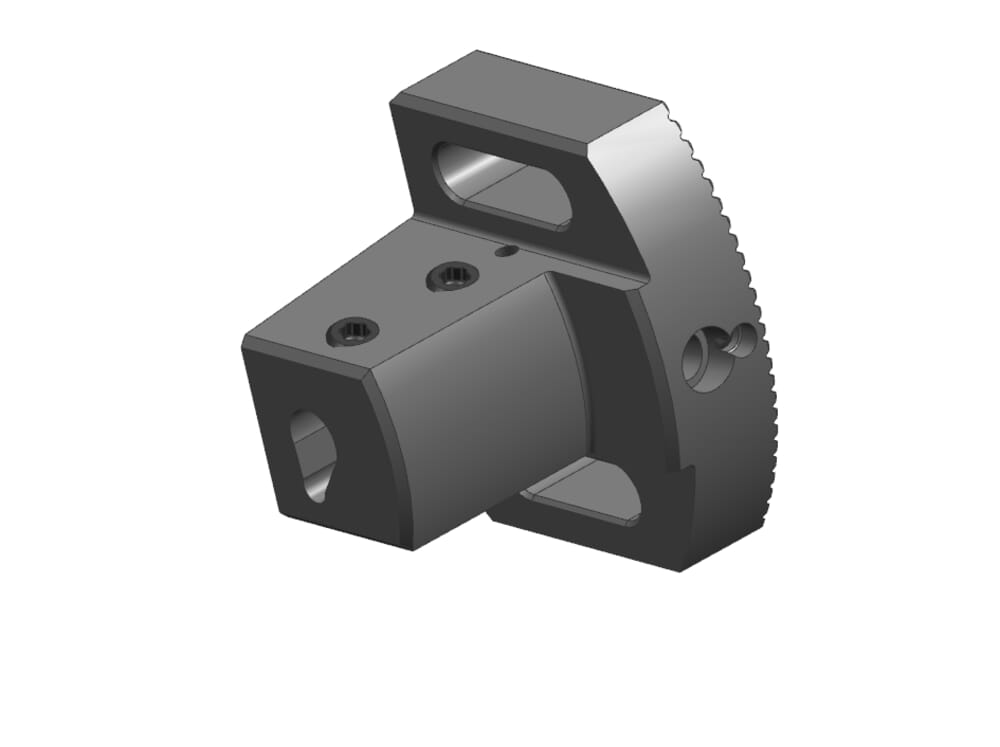

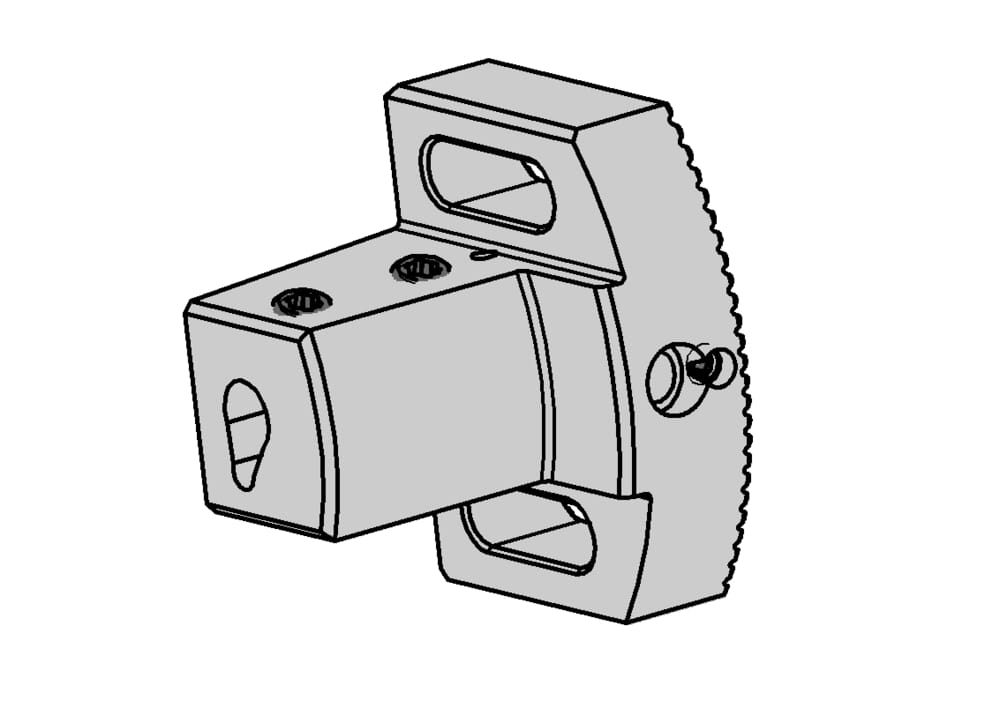

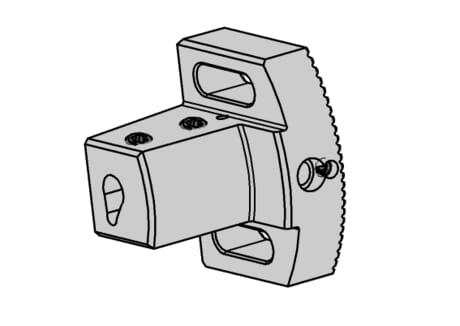

BKT110.U17G.02
Toolholder
Part number BKT110U17G02
HORN Toolholder BKT110.U17G.02 for
Please note:Technical instructions

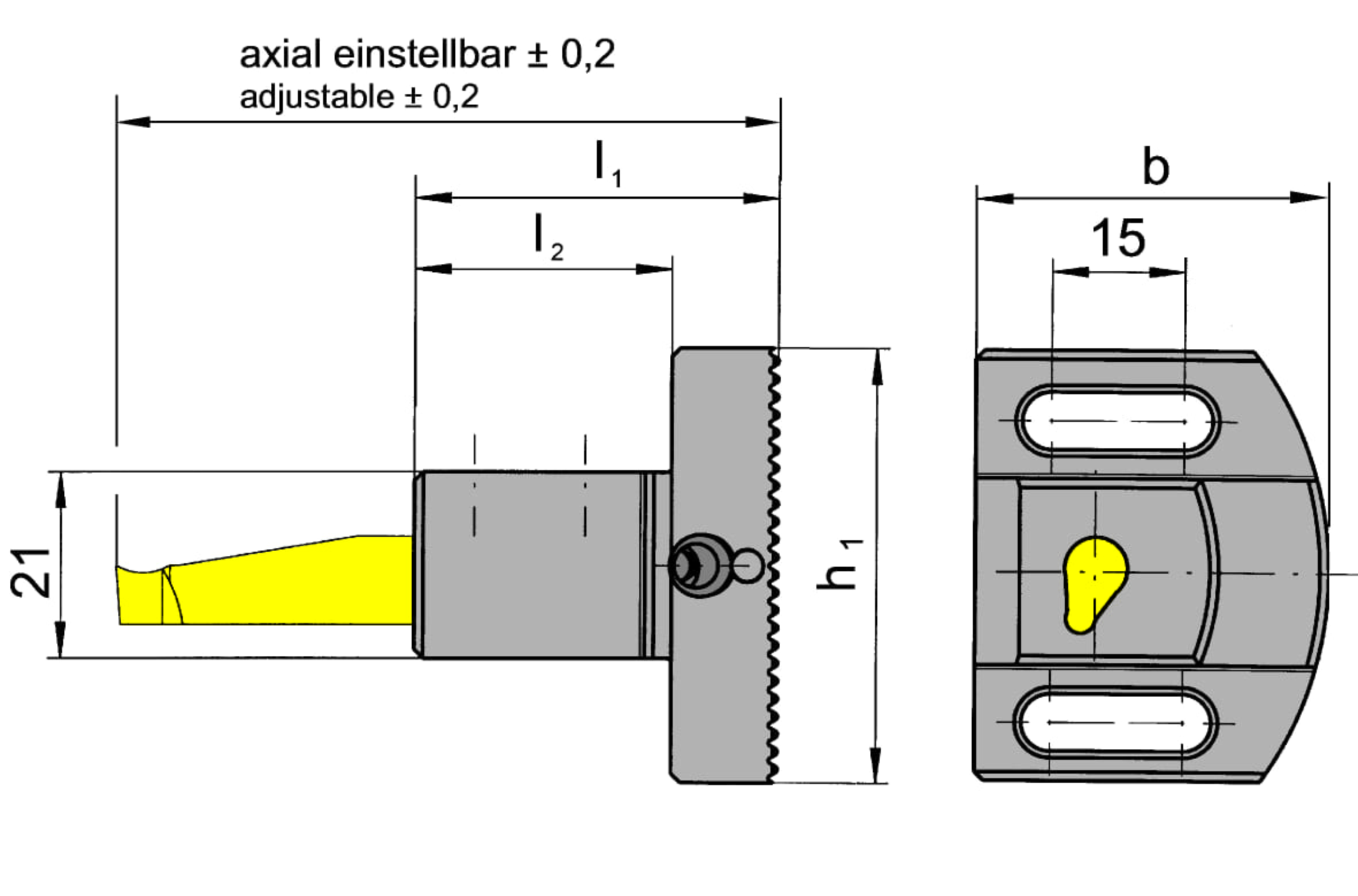

Width (b)
39.5
mm
Head length (l2)
26
mm
Weight [kg] (Gewicht [kg])
0.3
kg
Adapter connection height (h1)
49
mm
ISO_CCTWS
HORN110260$85N$$$$$
DIN_CCTWS
HORN-11026085N
Katalog_CCTWS
110260
Total length (l1)
41
mm
| Downloads | |
|---|---|
| BKT110U17G02_20210706_212518280.DXF | Download |
| BKT110_U17G_02_20171121_231140328.STP | Download |
| Download all files | |
