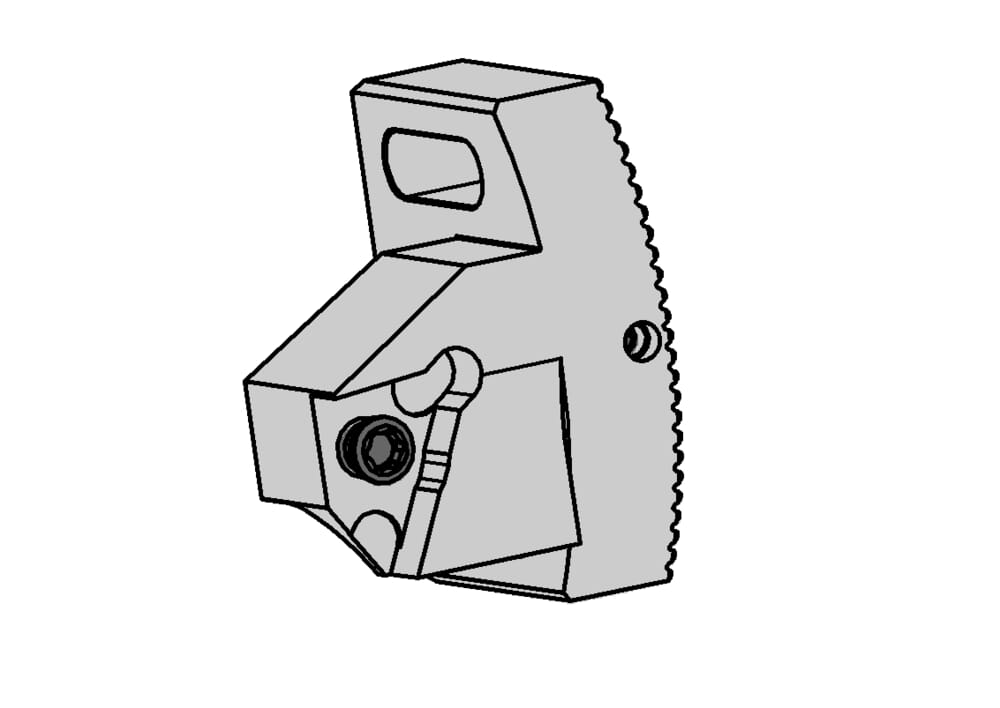

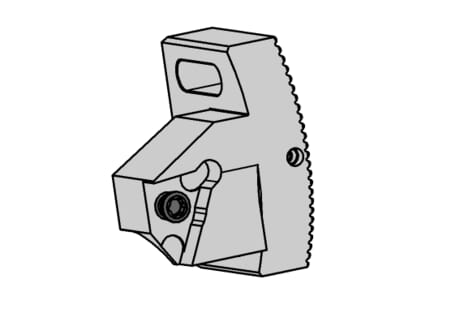

BKT356.U90G.05
Toolholder
Part number BKT356U90G05
HORN Toolholder BKT356.U90G.05 for
Please note:Technical instructions

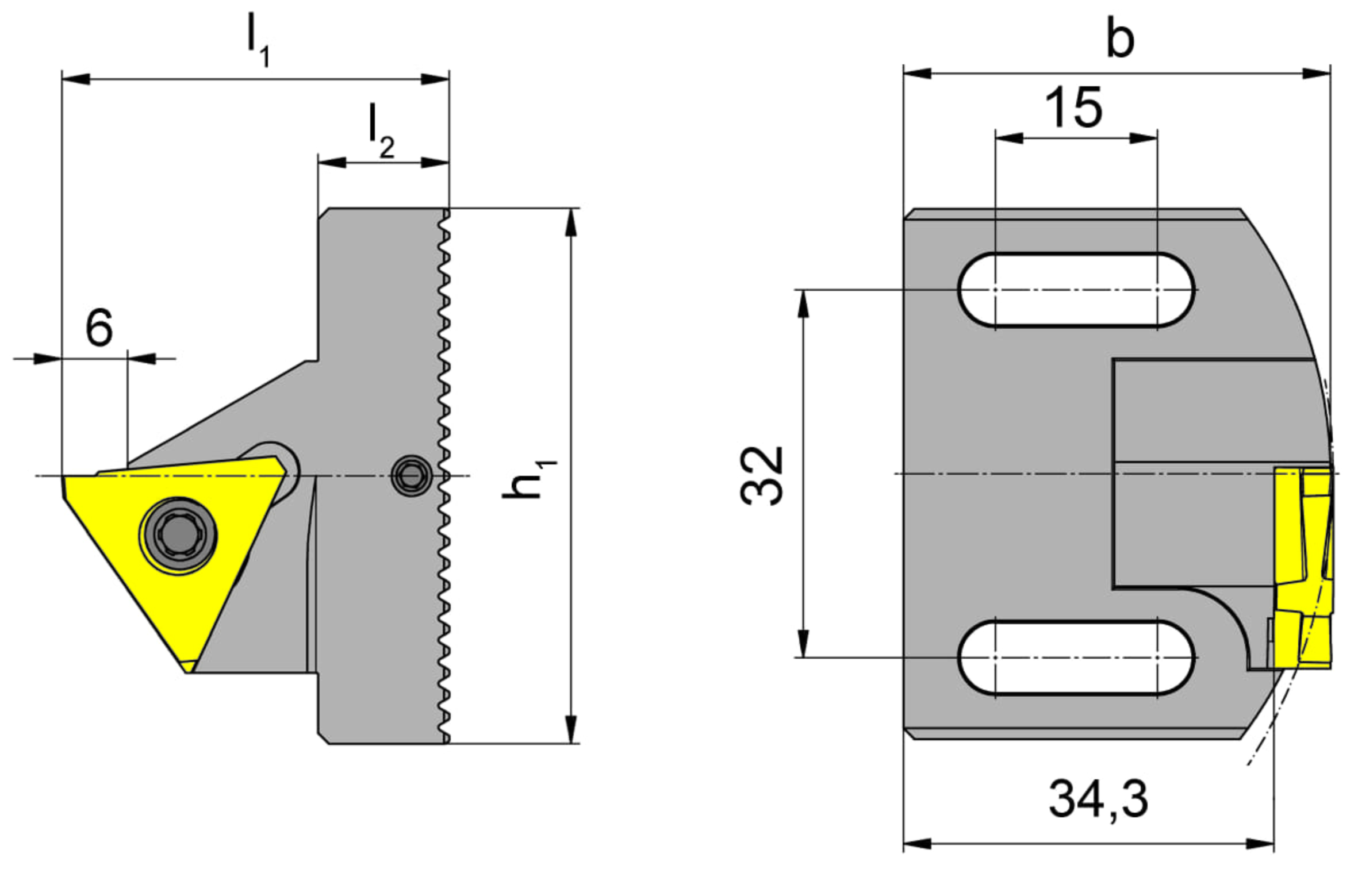

Width (b)
39.8
mm
Flange thickness (l2)
12
mm
Weight [kg] (Gewicht [kg])
0.3
kg
Adapter connection height (h1)
49
mm
ISO_CCTWS
HORN31505$051R$$$$$
DIN_CCTWS
HORN-31505051R
Katalog_CCTWS
31505R
Total length insert (l1)
42.4
mm
| Downloads | |
|---|---|
| BKT356U90G05_20211215_160326664.DXF | Download |
| BKT356_U90G_05_20171121_205424270.STP | Download |
| Download all files | |
