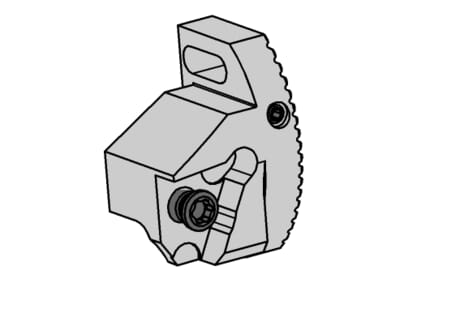

BKT356.U90K.05
Toolholder
Part number BKT356U90K05
HORN Toolholder BKT356.U90K.05 for
Please note:Technical instructions

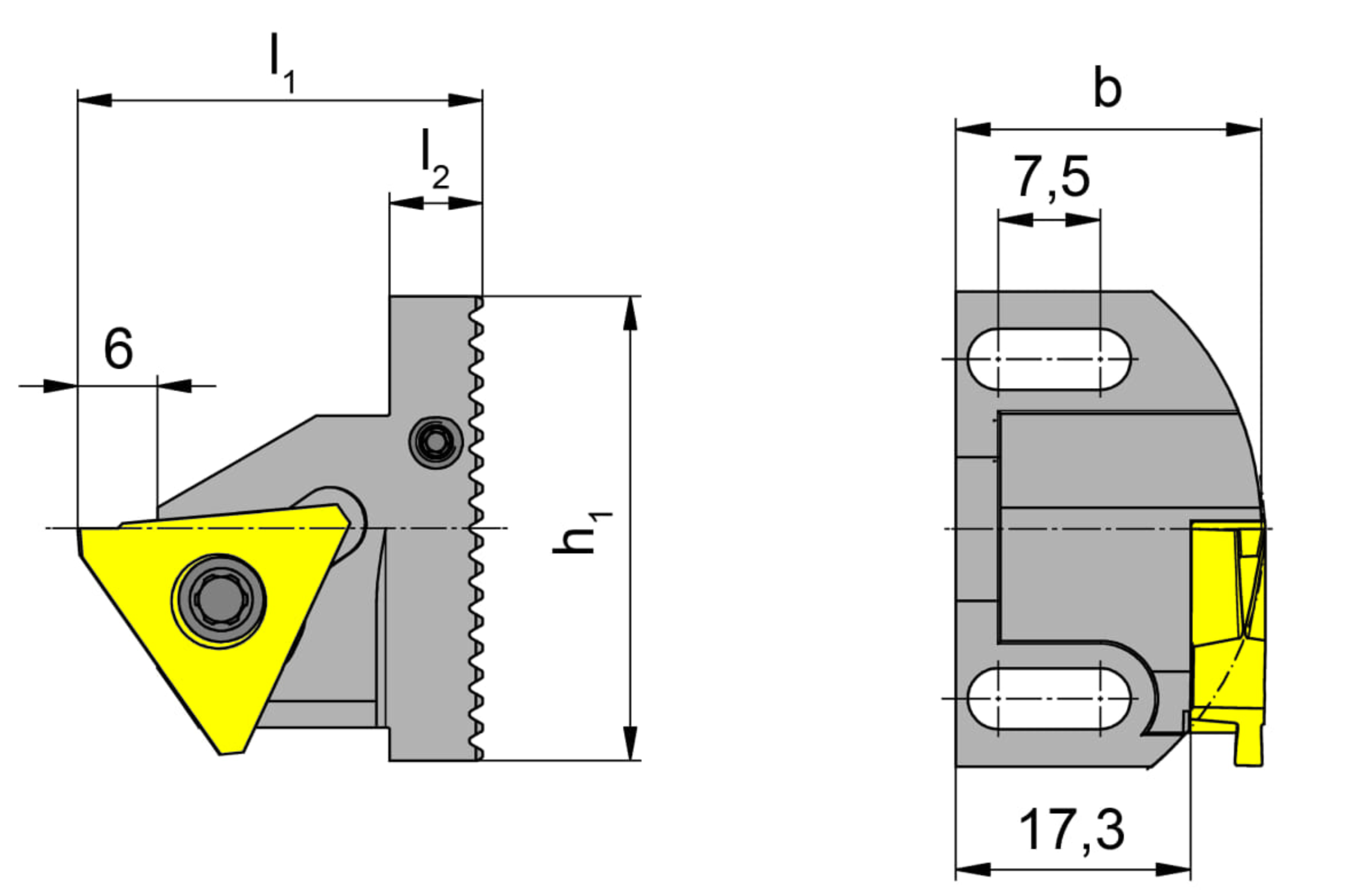

Width (b)
22.8
mm
Flange thickness (l2)
7
mm
Weight [kg] (Gewicht [kg])
0.1
kg
Adapter connection height (h1)
35
mm
ISO_CCTWS
HORN31505$051R$$$$$
DIN_CCTWS
HORN-31505051R
Katalog_CCTWS
31505R
Total length insert (l1)
30.5
mm
| Downloads | |
|---|---|
| BKT356U90K05.DXF | Download |
| BKT356_U90K_05.STP | Download |
| Download all files | |
