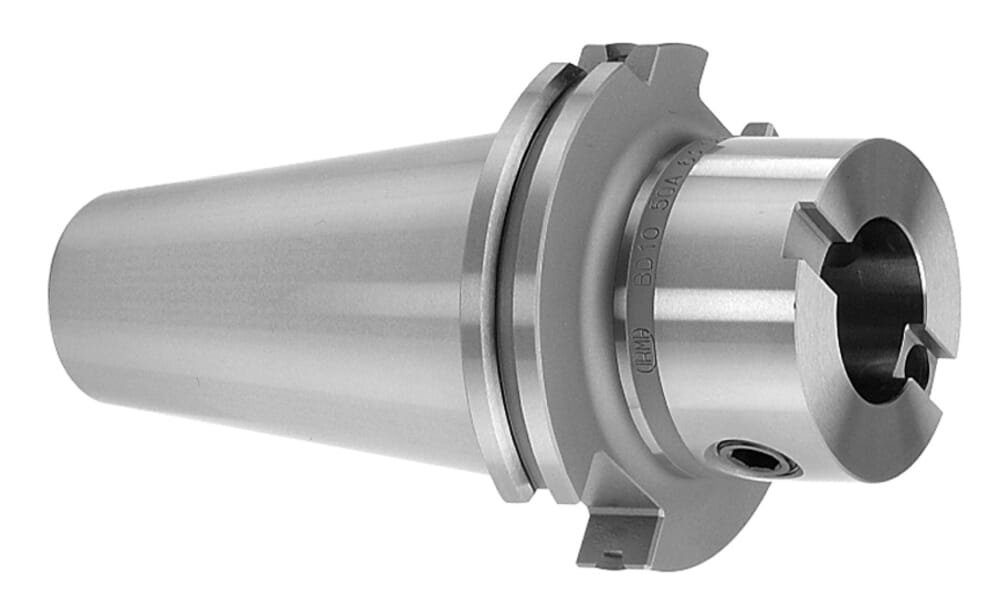

BT10 40A 40 028
System holder
Part number BT1040A40028
HORN System holder BT10 40A 40 028 for Milling
Please note:Technical instructions
Neck length (l)
1
mm
System (System)
JIS-BT 40
Interface cutting edge end (Beta-Modul)
40
mm
Weight [kg] (Gewicht [kg])
0.9
kg
Neck diameter (d)
42
mm
Working length (Lg)
28
mm
| Downloads | |
|---|---|
| BT1040A40028_20210627_140409999.DXF | Download |
| BT1040A40028_20230112_172429907.STP | Download |
| Download all files | |
