C5.R220.120.K1
Toolholder
Part number C5R220120K1

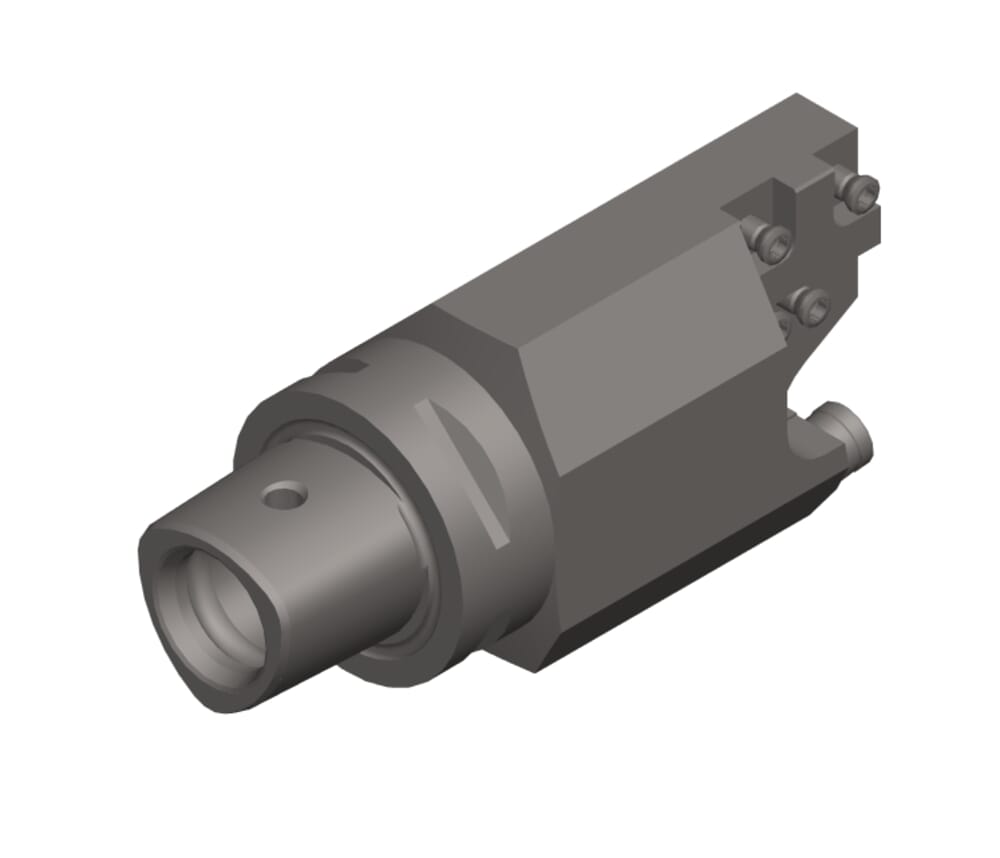

HORN Toolholder C5.R220.120.K1 for Turning
Please note:Technical instructions
Adjustment dimension (formula) (f)
f1+f3
eclass-shortcut
21-18-10-18
ISO_CCTMS
CCS01C0500$$$$
DIN_CCTMS
CCS05000185
Katalog_CCTWS
220001
DIN_CCTWS
HORN-22000183
ISO_CCTWS
HORN22000183$$
Length assembly formula (l)
l1+lK
Length from bore (l2)
101
mm
Adjustment dimension (f1)
9.6
mm
Bore diameter rotate (d1)
50
mm
System cassette from the collar (l1)
91
mm
Distance from center (h1)
12.5
mm
| Downloads | |
|---|---|
| C5R220120K1_20210627_142923341.DXF | Download |
| C5R220120K1_20230112_161616758.STP | Download |
| Download all files | |
