C6.R845.01.K1

Toolholder

Part number C6R84501K1

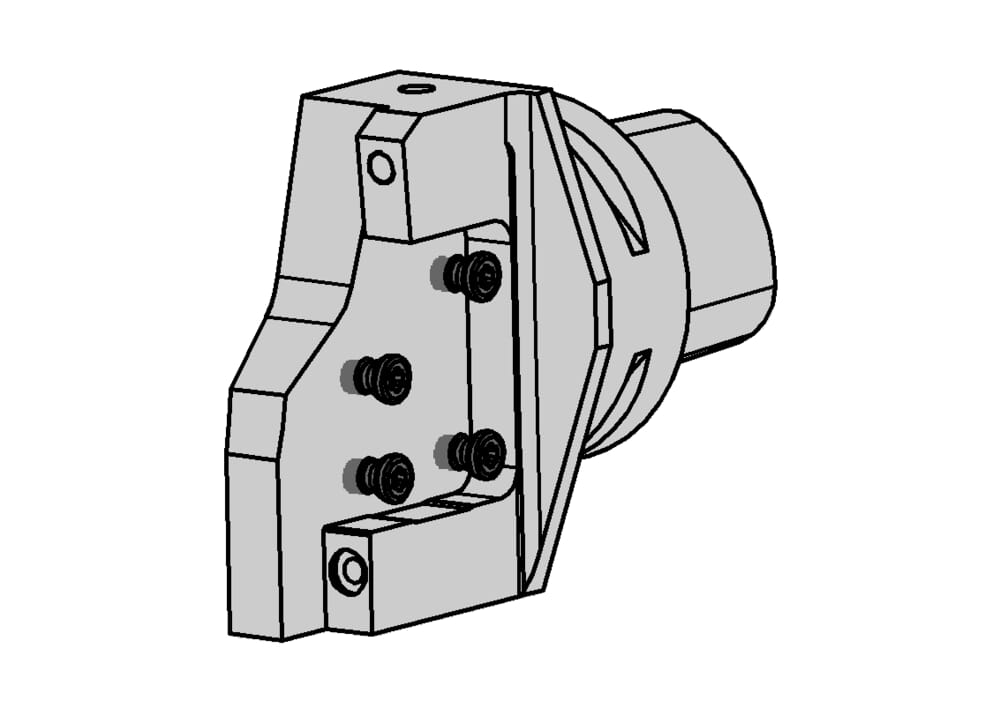

HORN Toolholder C6.R845.01.K1 for Turning

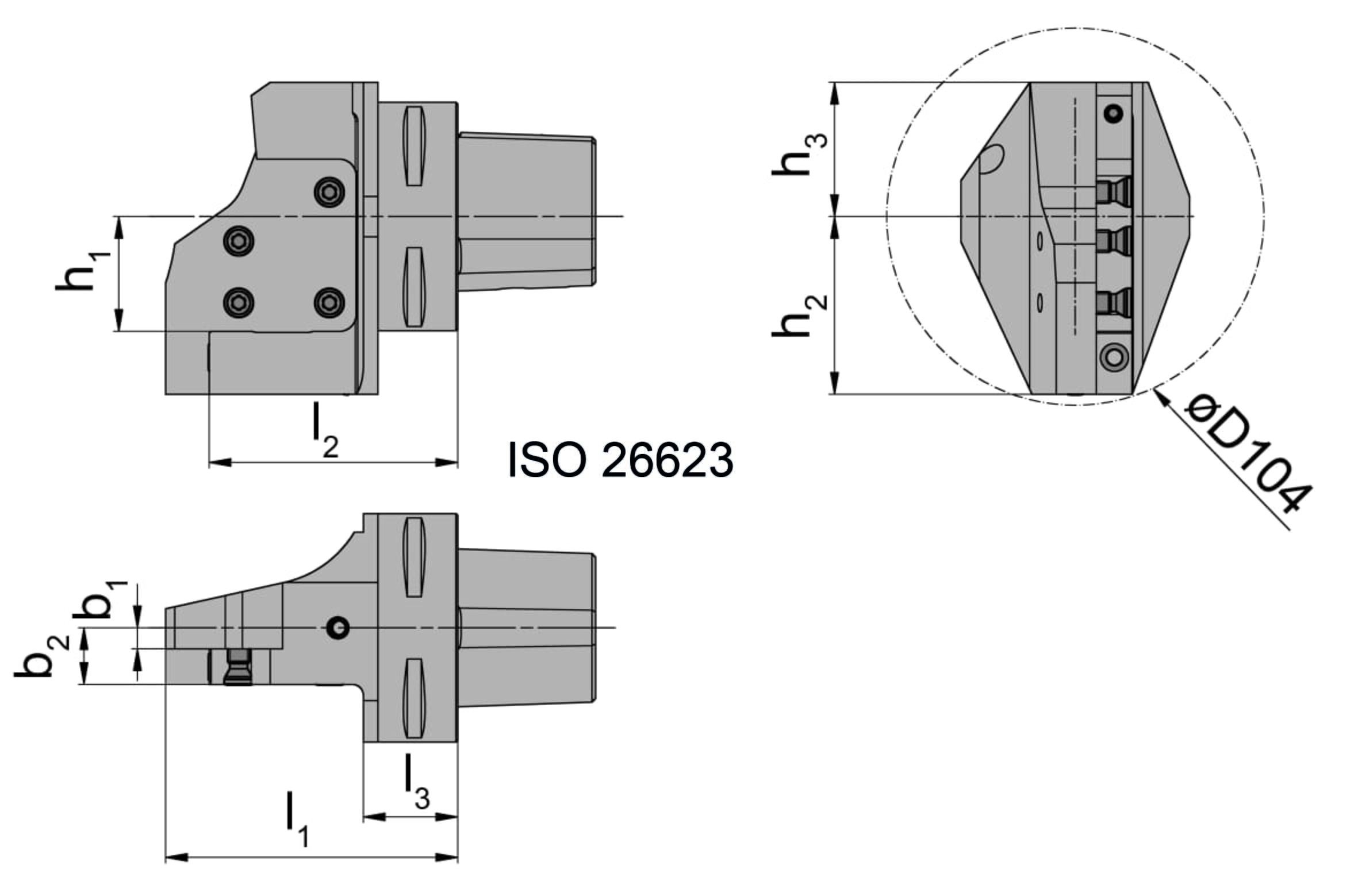

System cassette outer edge to grooving holder (b2)

15.6 mm

eclass-shortcut

21-18-10-01

ISO_CCTMS

CCS01C0630$$$$

DIN_CCTMS

CCS06300195

Katalog_CCTWS

845001;845002

DIN_CCTWS

HORN-84500193;HORN-84500293

ISO_CCTWS

HORN84500193$$;HORN84500293$$

Dimension center to locating face cassette (b1)

5.8 mm

Cutting insert width (l2)

68.5 mm

Dimension center to lower side of holder (h2)

49 mm

Dimension center to upper side of holder (h3)

37 mm

Length from bore (l1)

80.5 mm

Cassette system from the middle (h1)

31.65 mm

Flange thickness (l3)

22 mm
