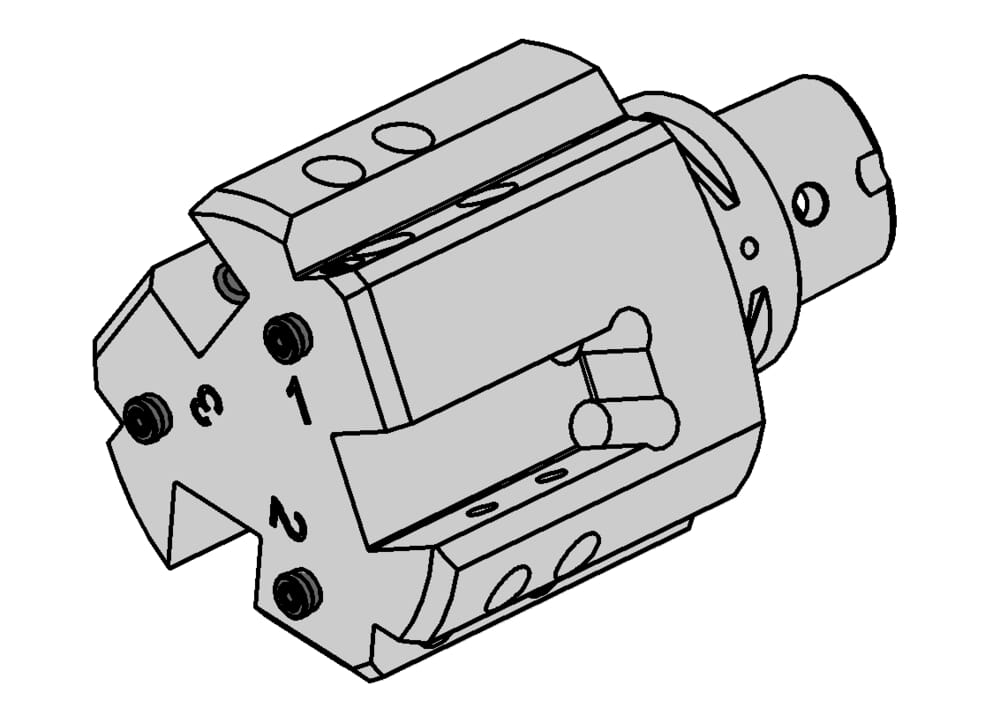

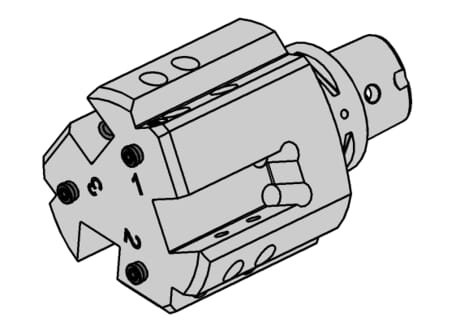

C6.VKT01.01.IK
base support
Part number C6VKT0101IK
HORN base support C6.VKT01.01.IK for Turning
Please note:Technical instructions
Shank width (b1)
22
mm
Bore diameter rotate (d1)
63
mm
Maximum clamping length (l2)
68.9
mm
External diameter (d2)
110
mm
Dimension center to outer edge holder (b2)
45
mm
ISO_CCTWS
VKT01A2525$$$$;VKT01A2525$$$$;VKT01A2525$$$$
DIN_CCTWS
VKT25250105;VKT25250105;VKT25250105
Total length (l1)
125
mm
