C8.L220.150.K1
Toolholder
Part number C8L220150K1

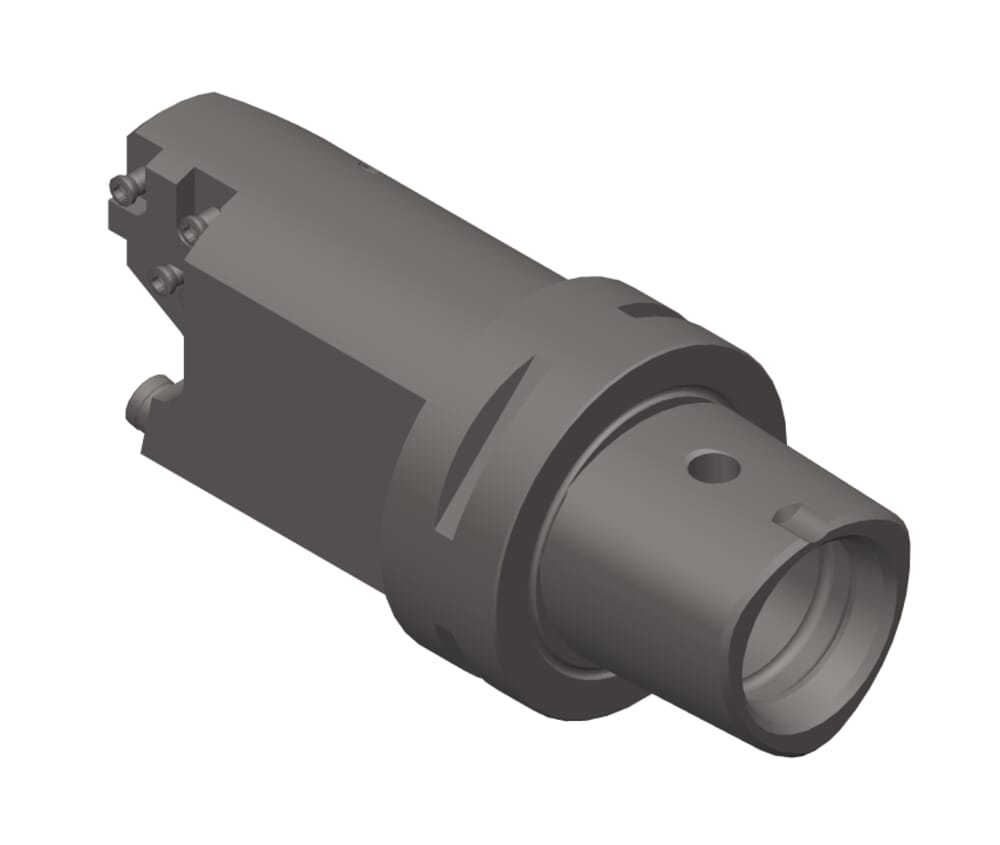

HORN Toolholder C8.L220.150.K1 for Turning
Please note:Technical instructions
Adjustment dimension (formula) (f)
f1+f3
eclass-shortcut
21-18-10-18
ISO_CCTMS
CCS01C0800$$$$
DIN_CCTMS
CCS08000185
Katalog_CCTWS
220002
DIN_CCTWS
HORN-22000283
ISO_CCTWS
HORN22000283$$
Length assembly formula (l)
l1+lK
Length from bore (l2)
131
mm
Adjustment dimension (f1)
8.6
mm
Bore diameter rotate (d1)
80
mm
System cassette from the collar (l1)
121
mm
Distance from center (h1)
12.5
mm
| Downloads | |
|---|---|
| C8L220150K1_20210627_143137831.DXF | Download |
| C8L220150K1_20230112_140711287.STP | Download |
| Download all files | |
