D117.0026.02.5.00 MG12
insert
Part number D117002602500MG12

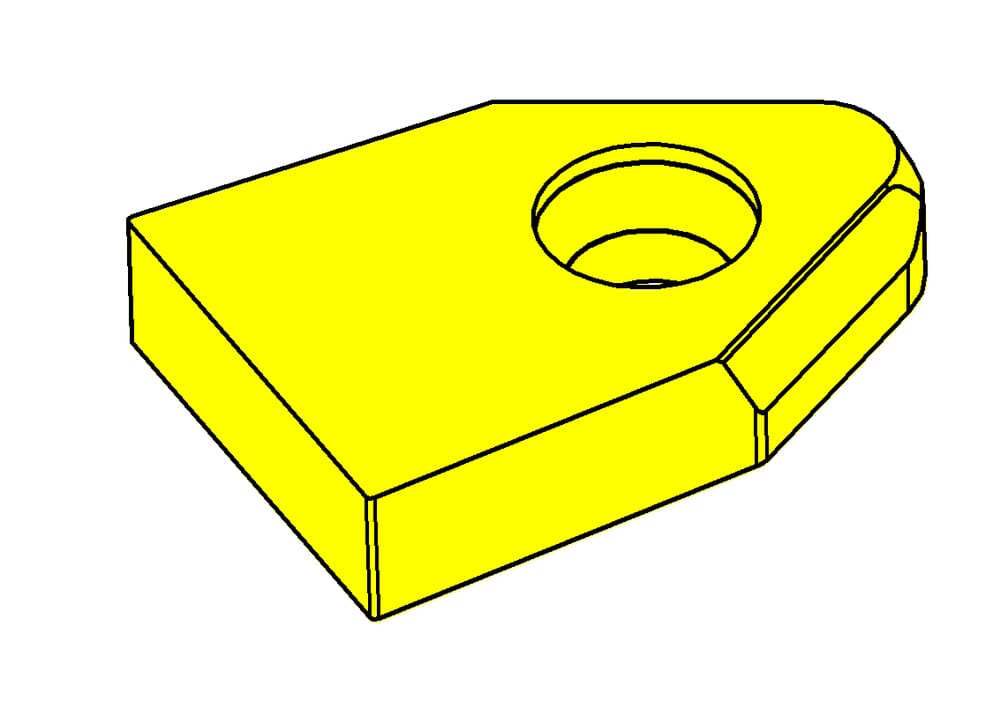

HORN insert D117.0026.02.5.00 MG12 for Drilling
Please note:Technical instructions

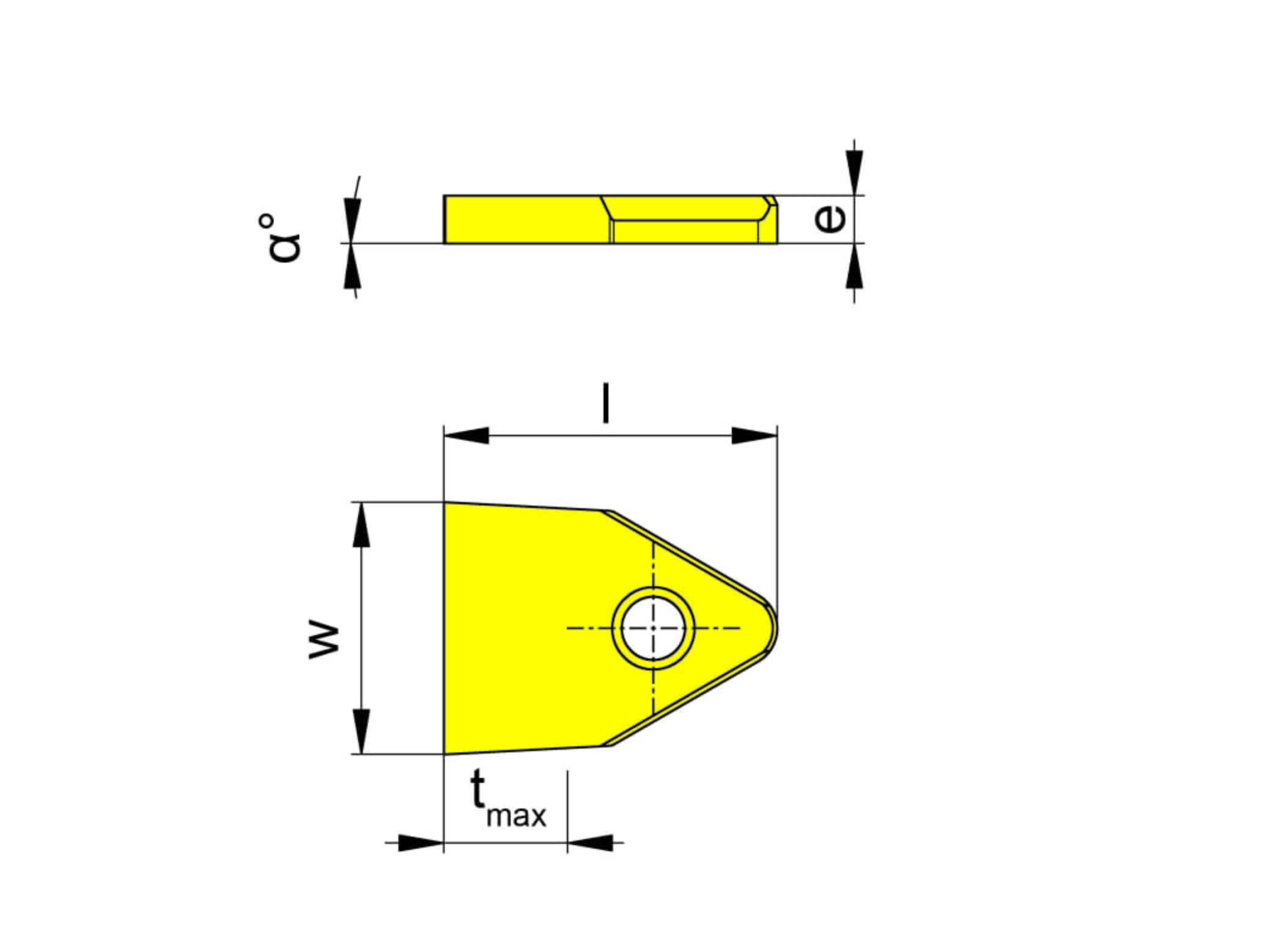

Insertion angle (α)
0
°
Maximum depth of groove (tmax)
9
mm
eclass-shortcut
21-18-20-11
Boring Shank (Bohrerschaft)
B117.DD...26
Width of groove (w)
26
mm
Cutting insert height, Cutting insert thickness (E)
5
mm
Total length (l)
35
mm
| Downloads | |
|---|---|
| D117002602500.STP | Download |
| Download all files | |
