DDHM.100.055.10.05 HD05

drill

Part number DDHM1000551005HD05

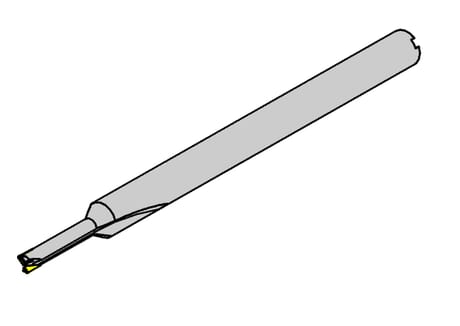

HORN drill DDHM.100.055.10.05 HD05 for Drilling

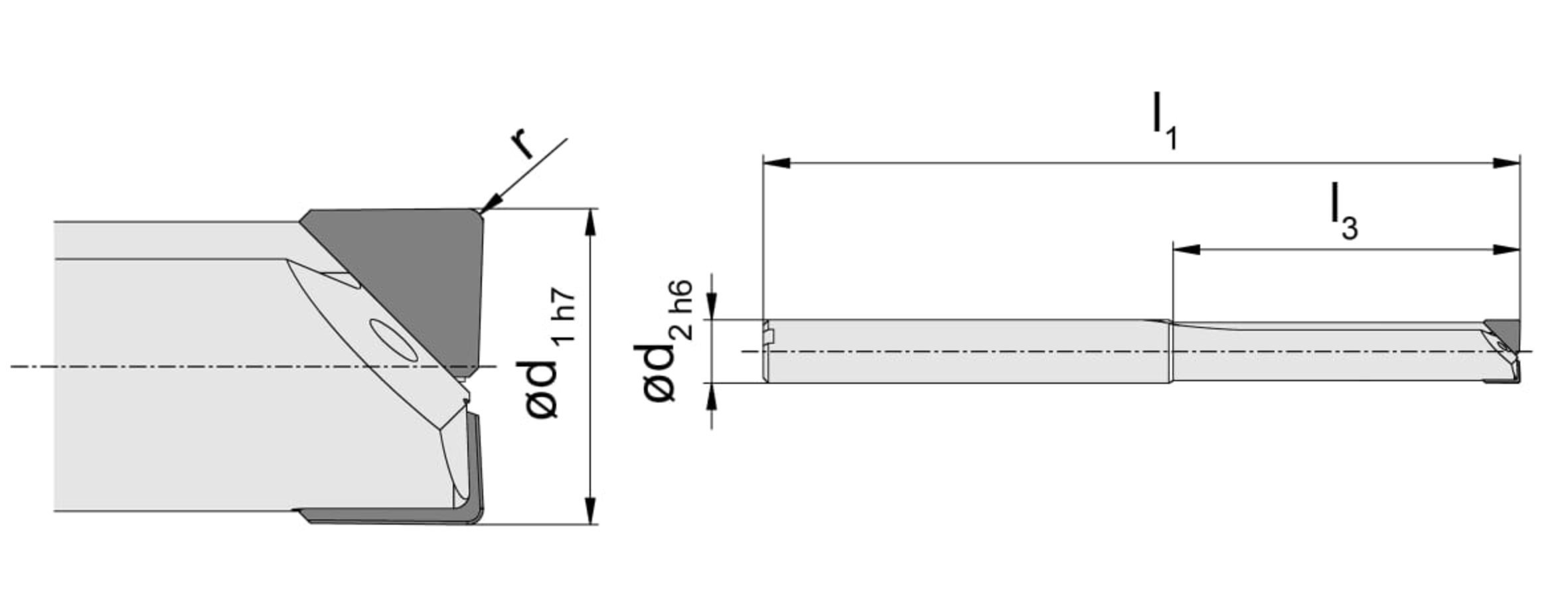

Shank diameter (d2)

10 mm

Neck length (l3)

55 mm

Number of teeth (Z)

2 St.

eclass-shortcut

21-18-01-01

Nominal diameter (d1)

10 mm

Corner radius (r)

0.5 mm

Total length (l1)

103 mm
