DGF.3.10.1000.02.00 AN2P
Inserts
Part number DGF31010000200AN2P

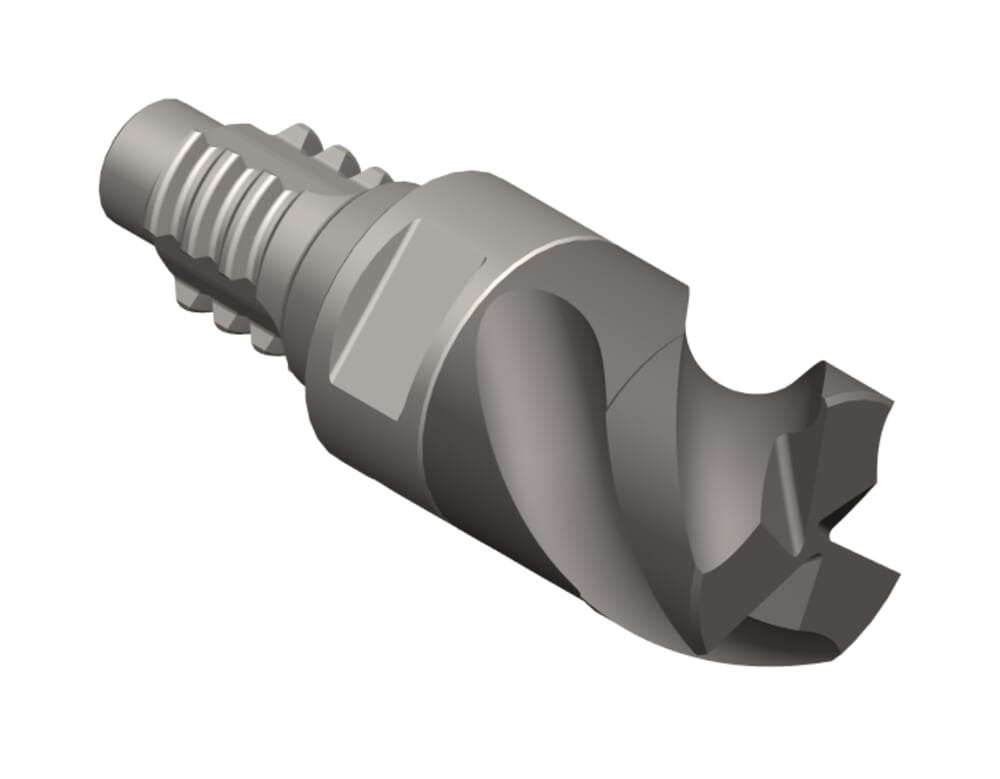

HORN Inserts DGF.3.10.1000.02.00 AN2P for Milling
Please note:Technical instructions
DIN_SSC
HORN-DG01010N
eclass-shortcut
21-18-06-90
Corner bevel (45 ° x b) (b)
0.2
Tool length from stop, flange (l3)
16.8
mm
Effective cutting length (l2)
5.5
mm
Key range (SW)
8
mm
Neck diameter (d3)
9.8
mm
Katalog_SSC
DG0101
ISO_SSC
HORNDG01018$0N$$$$$
System (System)
DG10
Number of teeth (Z)
3
St.
Cutting diameter (d1)
10
mm
