DGH.4.10.1000.00 AN2P
Inserts
Part number DGH410100000AN2P

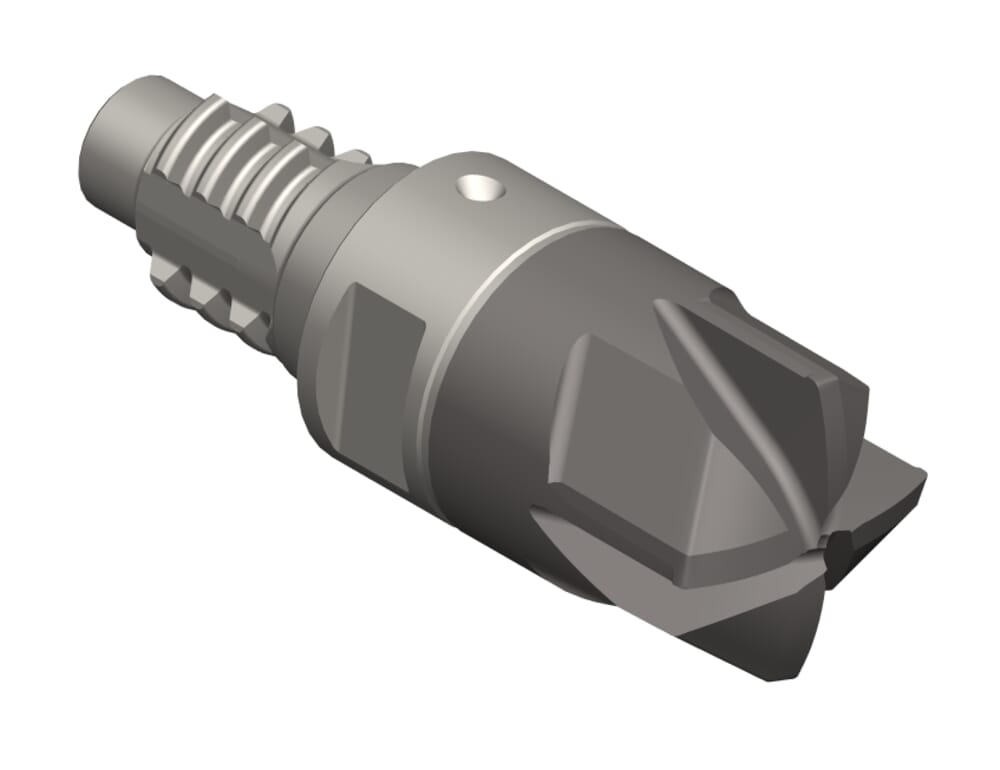

HORN Inserts DGH.4.10.1000.00 AN2P for Milling
Please note:Technical instructions
DIN_SSC
HORN-DG01010N
eclass-shortcut
21-18-06-90
Theoretical corner radius, programmable corner radius (rtheo)
1.07
mm
Tool length from stop, flange (l3)
16.8
mm
Effective cutting length (l2)
0.7
mm
Key range (SW)
8
mm
Neck diameter (d3)
9.8
mm
Katalog_SSC
DG0101
ISO_SSC
HORNDG01018$0N$$$$$
System (System)
DG10
Number of teeth (Z)
4
St.
Cutting diameter (d1)
10
mm
| Downloads | |
|---|---|
| DGH410100000_20210629_130047218.DXF | Download |
| DGH410100000_20210630_094148302.STP | Download |
| Download all files | |
