DGK.4.12.1200.00 AN2P
Inserts
Part number DGK412120000AN2P

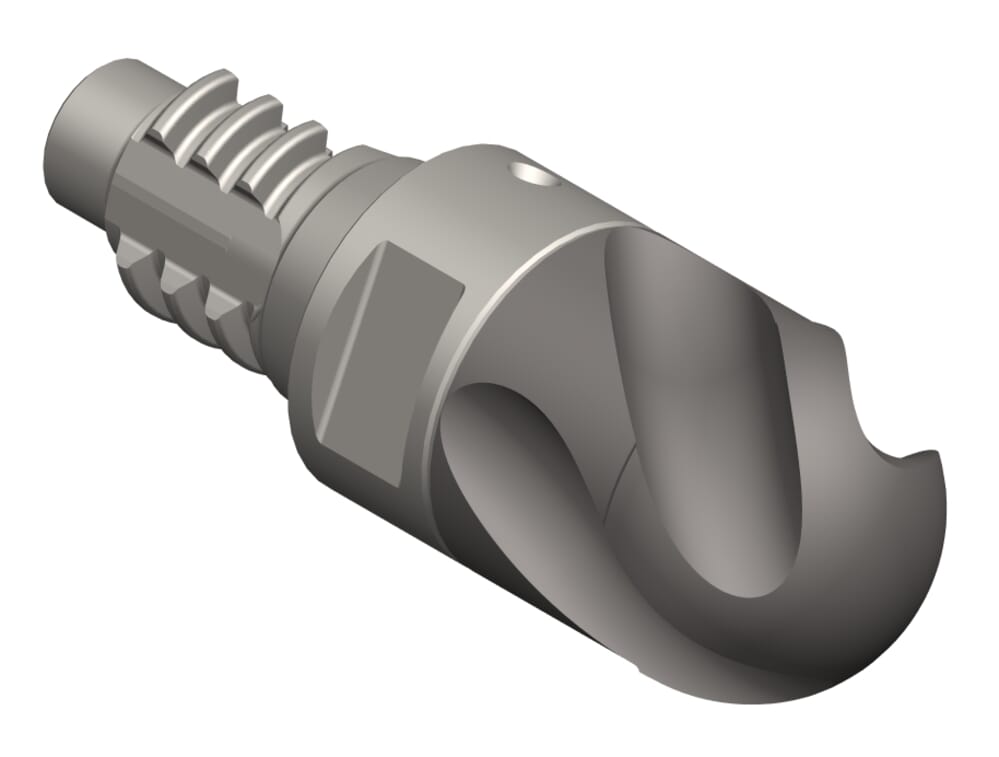

HORN Inserts DGK.4.12.1200.00 AN2P for Milling
Please note:Technical instructions
DIN_SSC
HORN-DG01210N
eclass-shortcut
21-18-06-90
Tool length from stop, flange (l3)
19.3
mm
Effective cutting length (l2)
6.5
mm
Radius, full-radius (r)
6
mm
Key range (SW)
10
mm
Neck diameter (d3)
11.7
mm
Katalog_SSC
DG0121
ISO_SSC
HORNDG01218$0N$$$$$
System (System)
DG12
Number of teeth (Z)
4
St.
Cutting diameter (d1)
12
mm
| Downloads | |
|---|---|
| DGK412120000_20210629_130343485.DXF | Download |
| DGK412120000_20230112_204904357.STP | Download |
| Download all files | |
